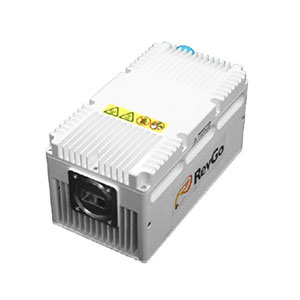

RevGo RGUC-U108-48NA-N Block Up-Converter (BUC) Ku-Band 8W 14.0 - 14.5 GHz
Product Code:
RGUC-U108-48NA-N
Condition:
New
Availability:
YES
Weight:
1.00 KGS
Width:
15.00
(cm)
Height:
8.00
(cm)
Depth:
6.50
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
About the CONVERTER
The RGUC-U108-48NA-N is a RevGo RF unit operating in Ku-Band, with an output range of 14.00 - 14.50 GHz, 8W of rated output power and an N-type IF interface. Full electrical, mechanical and environmental specifications are listed below.
Key Specifications
| Band | Ku-Band |
| Output Frequency | Ku-Band: 14.00 - 14.50 GHz |
| Output Power | 8W |
| IF Connector | N-Connector |
| Input Power and M&C | IFL |
RF Specifications
| RF Frequency | Standard: 14-14.50GHz |
| IF Frequency | 950-1450MHz |
| External Ref | 10 MHz, 0 ± 5 dBm |
| Output Power - Saturated | +39dBm |
| Output Power - PLin1 | 38dBm |
| Output Power - PLin2 | 37dBm |
| Output Power - PLin3 | 36dBm |
| IMD3 (3dB from rated) | -25dBc |
| Small Signal Gain - No M&C (fixed) | 65dB |
| Gain Variation | 1 dB p-p / 36MHz 3 dB p-p / 500MHz 4 dB p-p / 750MHz |
| Gain stability | 3 dB p-p |
| Phase Noise | -60 dBc / Hz @ 100Hz -75 dBc / Hz @ 1KHz -85 dBc / Hz @ 10KHz -95 dBc / Hz @ 100KHz |
| Output Spurious | -55dBc |
| Notes | PLin1: -26 dBc regrowth, 1.5 SR PLin2: -30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier) PLin3: <-25 dBc IMD3 (MIL-STD-188-164B, two-carrier) |
Power Supply
| Input Power | +18 to +56vDC |
| Power Consumption - @ PLin1 Output | 45W |
Interfaces
| RF Output Connector | WR75-G (Grooved) |
| IF Connector | N-Type Female |
| IF Input VSWR | 1.5:1 |
| Power | IFL |
| LED Alarm Indicator | Green = normal Red on = PLL alarm Red flashing = Temp alarm |
Physical Parameters
| Size (inches) | 5.9*3.15*2.56 150*80*65 mm |
| Weight (lbs) | 2.2 1.0 kg |
| Operating Temperature | -40 to +60 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-10,000 feet ASL |
