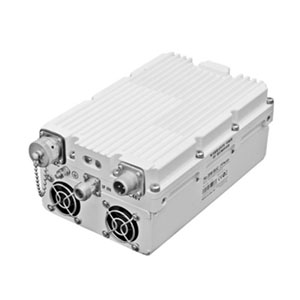

RevGo RGUC-D120-48RE Mid Power Block Up-Converter (BUC) 20W DBS-Band 17.3 - 18.1 GHz
Product Code:
RGUC-D120-48RE
Condition:
New
Availability:
YES
Weight:
3.30 KGS
Width:
20.60
(cm)
Height:
8.80
(cm)
Depth:
13.60
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
Key Specifications
| Band | DBS-Band |
| Output Power | 20W |
| Frequency Bands | 17.3-18.1GHz |
RF Specifications
| RF Frequency | 17.3-18.1GHz |
| IF Frequency | 950-1750MHz |
| Local Frequency | 16.35 GHz |
| External Ref | 10MHz, 0±5dBm |
| Output Power - Rated/Saturated | 43dBm |
| Output Power - PLin1 | 42dBm |
| Output Power - PLin2 | 41dBm |
| Output Power - PLin3 | 40dBm |
| IMD3 (3dB from rated) | -25dBc |
| Small Signal Gain | 70dB |
| Gain Variation | 0.25dB p-p/1MHz 3dB p-p/300MHz 4dB p-p/800MHz |
| Gain stability | 3dB p-p |
| Gain Adjustment | 20dB (Step: 0.5dB) |
| Phase Noise | -62dBc/Hz@100Hz -72dBc/Hz@1KHz -82dBc/Hz@10KHz -92dBc/Hz@100KHz |
| Output Spurious | -55dBc |
| Notes | PLin1: -26 dBc regrowth, 1.5 SR (commercial satellite) PLin2: -30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier) PLin3: <-25 dBc IMD3 (MIL-STD-188-164B, two-carrier) |
Power Supply
| Input Power | +36 to +72 vDC |
| Power Consumption - @ Rated Output | 100W |
| Power Consumption - @ PLin1 Output | 80W |
Interfaces
| RF Output Connector | WR62-G (Grooved) |
| RF Output VSWR | 1.25:1 |
| IF Input Connector | N-Type Female |
| IF Input VSWR | 1.5:1 |
| Power Supply Connector | ACS02E-10SL-4P |
| M&C Connector | PT02E-12-14P RS485, RS232 & Eth |
| Alarm Status Indicator | Yellow LED = PLL Unlock |
Physical Parameters
| Size (inches) | 8.11*5.35*3.47 206*136*88 mm |
| Weight (lbs) | 7.2 3.3 kg |
| Operating Temperature | -40 to +60 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-10,000 feet ASL |
