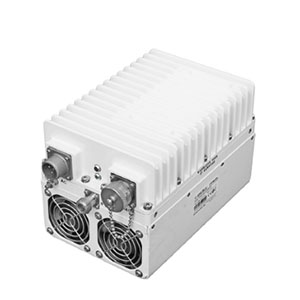

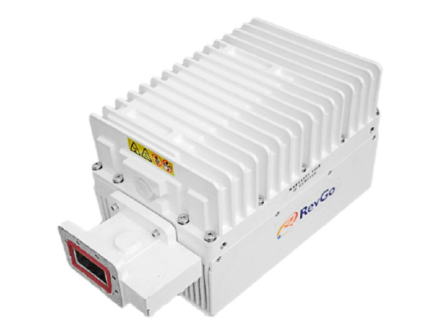

RevGo RGUC-C220-ACRE-N RGUC-C Block Up-Converter (BUC) C-Band 20W 5.85 - 6.725 GHz
Product Code:
RGUC-C220-ACRE-N
Condition:
New
Availability:
YES
Weight:
5.00 KGS
Width:
20.60
(cm)
Height:
13.60
(cm)
Depth:
13.60
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
About the CONVERTER
Reliability
• Highly integrated RF technologies (RFIC and GaN)
• Designed for high volume production
• Linearity optimized for high order modulation and high data rate
• Strict quality control processes resulting in <0.25% field failure rates
Product Features 20W 40W
• Variable power consumption 130W @42dBm 220W @45dBm
• Compact and light weight (11 lbs / 5 kg)
• Low phase noise (exceeds IESS308/309)
• Rugged design for extreme environments (-40 to +60o C)
Key Specifications
| Band | C-Band |
| Output Frequency | C-Band: 5.85 - 6.725 GHz |
| Output Power | 20W |
RF Specifications
| RF Frequency | 5.850-6.725GHz |
| IF Frequency | 950-1825MHz |
| Local Frequency | 4900MHz |
| External Ref | 10MHz, 0±5dBm |
| Output Power - Rated/Saturated | 43dBm |
| Output Power - PLin1 | 42dBm |
| Output Power - PLin2 | 41dBm |
| Output Power - PLin3 | 40dBm |
| IMD3 (3dB from rated) | ≤ -25dBc |
| Small Signal Gain | 70dB |
| Gain Variation | 1dB p-p/36MHz 3dB p-p/575MHz 4dB p-p/875MHz |
| Gain stability | ± 1.5dB p-p |
| Gain Adjustment | 20dB (Step: 0.1dB) |
| Phase Noise | -65dBc/Hz@100Hz -75dBc/Hz@1KHz -85dBc/Hz@10KHz -95dBc/Hz@100KHz |
| Output Spurious | ≤ -55dBc |
| Notes | PLin1: -26 dBc regrowth, 1.5 SR (commercial satellite) PLin2: -30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier) PLin3: <-25 dBc IMD3 (MIL-STD-188-164B, two-carrier) |
Power Supply
| Input Power | +85 to +265 VAC (47-63Hz) |
| Power Consumption - @ PLin1 Output | 130W |
| Power Consumption - @ Rated Output | 160W |
Interfaces
| RF Output Connector | WR137-G (Grooved) |
| RF Output VSWR | 1.25:1 |
| IF Input Connector | N-Type Female |
| IF Input VSWR | 1.5:1 |
| Power Supply Connector | ACS02E-14S-7P |
| M&C Connector | PT02E-14-19P RS485, RS232 & Eth |
| Alarm Status Indicator | Yellow LED = PLL Unlock |
Physical Parameters
| Size (inches) | 8.11*5.35*5.35 206*136*136 mm |
| Weight (lbs) | 11 5 kg |
| Operating Temperature | -40 to +60 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-40,000 feet ASL |
5 customers are viewing this product
Details
About the CONVERTER
Reliability
• Highly integrated RF technologies (RFIC and GaN)
• Designed for high volume production
• Linearity optimized for high order modulation and high data rate
• Strict quality control processes resulting in <0.25% field failure rates
Product Features 20W 40W
• Variable power consumption 130W @42dBm 220W @45dBm
• Compact and light weight (11 lbs / 5 kg)
• Low phase noise (exceeds IESS308/309)
• Rugged design for extreme environments (-40 to +60o C)
Key Specifications
| Band | C-Band |
| Output Frequency | C-Band: 5.85 - 6.725 GHz |
| Output Power | 20W |
RF Specifications
| RF Frequency | 5.850-6.725GHz |
| IF Frequency | 950-1825MHz |
| Local Frequency | 4900MHz |
| External Ref | 10MHz, 0±5dBm |
| Output Power - Rated/Saturated | 43dBm |
| Output Power - PLin1 | 42dBm |
| Output Power - PLin2 | 41dBm |
| Output Power - PLin3 | 40dBm |
| IMD3 (3dB from rated) | ≤ -25dBc |
| Small Signal Gain | 70dB |
| Gain Variation | 1dB p-p/36MHz 3dB p-p/575MHz 4dB p-p/875MHz |
| Gain stability | ± 1.5dB p-p |
| Gain Adjustment | 20dB (Step: 0.1dB) |
| Phase Noise | -65dBc/Hz@100Hz -75dBc/Hz@1KHz -85dBc/Hz@10KHz -95dBc/Hz@100KHz |
| Output Spurious | ≤ -55dBc |
| Notes | PLin1: -26 dBc regrowth, 1.5 SR (commercial satellite) PLin2: -30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier) PLin3: <-25 dBc IMD3 (MIL-STD-188-164B, two-carrier) |
Power Supply
| Input Power | +85 to +265 VAC (47-63Hz) |
| Power Consumption - @ PLin1 Output | 130W |
| Power Consumption - @ Rated Output | 160W |
Interfaces
| RF Output Connector | WR137-G (Grooved) |
| RF Output VSWR | 1.25:1 |
| IF Input Connector | N-Type Female |
| IF Input VSWR | 1.5:1 |
| Power Supply Connector | ACS02E-14S-7P |
| M&C Connector | PT02E-14-19P RS485, RS232 & Eth |
| Alarm Status Indicator | Yellow LED = PLL Unlock |
Physical Parameters
| Size (inches) | 8.11*5.35*5.35 206*136*136 mm |
| Weight (lbs) | 11 5 kg |
| Operating Temperature | -40 to +60 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-40,000 feet ASL |
