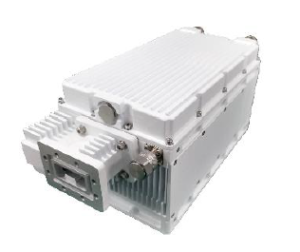

RevGo RGUC-C2100-ACREN-C0 Block Up-Converter (BUC) C-Band 100W 5.85 - 6.725 GHz
Product Code:
RGUC-C2100-ACREN-C0
Condition:
New
Weight:
13.20 KGS
Width:
24.60
(cm)
Height:
13.60
(cm)
Depth:
13.60
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
About the CONVERTER
The RGUC-C2100-ACREN-C0 is a RevGo RF unit operating in C-Band, with an output range of 5.85 - 6.725 GHz and 100W of rated output power. Full electrical, mechanical and environmental specifications are listed below.
Key Specifications
| Band | C-Band |
| Output Frequency | C-Band: 5.85 - 6.725 GHz |
| Output Power | 100W |
| Redundancy Kit | Optional 1:1 Redundancy Kit - specify when ordering |
RF Specifications
| RF Frequency | Extended: 5.850-6.725 GHz |
| IF Frequency | 950-1825 MHz |
| External Ref | 10 MHz, 0±5 dBm |
| Output Power - Rated/Saturated | 50 dBm |
| Output Power - PLin1 | 49 dBm |
| Output Power - PLin2 | 48 dBm |
| Output Power - PLin | 47 dBm |
| IMD3 | - 25 dBc |
| Small Signal Gain | 75 dB |
| Gain Variation | 1 dB p-p / 36 MHz 3 dB p-p / 575 MHz 4 dB p-p / 875 MHz |
| Gain stability | 3 dB p-p |
| Gain Adjustment | 20 dB (55-75 dB, Step: 0.1 dB) |
| TX noise density | -76 dBm/Hz |
| RX noise density | -156 dBm/Hz |
| Phase Noise | -65 dBc / Hz @ 100 Hz -75 dBc / Hz @ 1 KHz -85 dBc / Hz @ 10 KHz -95 dBc / Hz @ 100 KHz |
| Output Spurious | -60 dBc |
| Notes | PLin1: -26 dBc regrowth, 1.5 SR (commercial satellite) PLin2: -30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier) PLin : <-25 dBc IMD3 (MIL-STD-188-164B, two-carrier) |
Power Supply
| Input Power | 85 to 265 VAC (47-63 Hz) |
| @ PLin Output | 290 W |
| @ Rated Output | 360 W |
Interfaces
| RF Output Connector | WR137-G (Grooved) |
| RF Output VSWR | 1.25:1 |
| IF Connector | N-Type Female |
| IF Input VSWR | 1.5:1 |
| Power Connector | ACS02E10SL-3P |
| M&C Connector | PT02E-12-14P SNMPv2 |
| Redundancy Connector | PT02E-12-14S |
| Alarm Status Indicator | Green ON Red Flash |
| LED*2 | Normal PLL Alarm |
Physical Parameters
| Size (inch) | 9.69*5.35*5.35 246*136*136 mm |
| Weight (lbs) | 13.2 5 kg |
| Operating Temperature | -40 to +60 °C (guarantee) |
| Humidity | 0-100% (condensing) |
| Altitude | 0-15,000 feet ASL |
