RevGo RGUC-AQ040-48NEN-MP Block Up-Converter (BUC) Ka-Band 40W 27.5 - 31.0 GHz
Product Code:
RGUC-AQ040-48NEN-MP
Condition:
New
Weight:
5.80 KGS
Width:
26.90
(cm)
Height:
15.60
(cm)
Depth:
13.60
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
About the CONVERTER

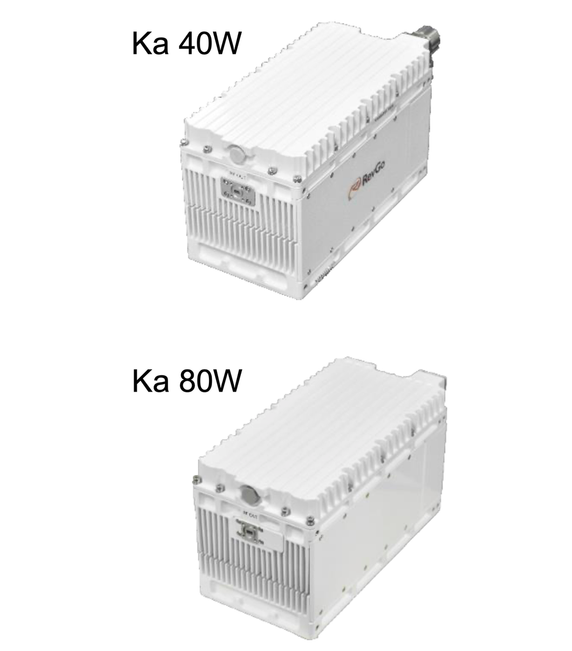

The RGUC-AQ040-48NEN-MP is a RevGo RF unit operating in Ka-Band, with an output range of 27.50 - 31.00 GHz and 40W of rated output power. Full electrical, mechanical and environmental specifications are listed below.
Key Specifications
| Band | Ka-Band |
| Output Frequency | Ka-Band: 27.50 - 31.00 GHz |
| Output Power | 40W |
| Frequency Band | 27.50-31.00 GHz (Four-Bands) |
| M&C Interface | Ethernet |
| OpenBmip | With openBmip calibration tables |
RF Specifications
| mPower Network - RF Frequency (GHz) | Band 1: 27.50-28.50; Band 2: 28.25-29.25; Band 3: 29.00-30.00 |
| mPower Network - IF Frequency (MHz) | Band 1: 950-1950; Band 2: 950-1950; Band 3: 950-1950 |
| mPower Network - LO Frequency (GHz) | Band 1: 26.55; Band 2: 27.30; Band 3: 28.05 |
| External Ref | 10 MHz, 0 ± 5 dBm |
| Output Power - Rated/Saturated | 46 dBm |
| Output Power - PLin1 | 45 dBm |
| Output Power - PLin2 | 44 dBm |
| Output Power - PLin | 43 dBm |
| Small Signal Gain | 67-77 dB |
| Gain Variation | 1 dB p-p / 36 MHz 3 dB p-p / 500 MHz 4 dB p-p / 1000 MHz |
| Gain stability | 3 dB p-p |
| Gain Adjustment | 10 dB (Step: 0.1 dB) |
| Phase Noise | -63 dBc / Hz @ 100 Hz -73 dBc / Hz @ 1 KHz -83 dBc / Hz @ 10 KHz -93 dBc / Hz @ 100 KHz |
| Output Spurious | -60 dBc |
| Notes | PLin1: -26 dBc regrowth, 1.5 SR (commercial satellite) PLin2: -30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier) PLin : <-25 dBc IMD3 (MIL-STD-188-164B, two-carrier) |
| Frequency Band 4 - RF (GHz) | 30.00-31.00 |
| Frequency Band 4 - IF (MHz) | 950-1950 |
| Frequency Band 4 - LO (GHz) | 29.05 |
Power Supply
| Input Power | +36 to +60 VDC |
| Power Consumption - @ PLin Output | 225 W |
| Power Consumption - @ Rated Output | 300 W |
Interfaces
| RF Output Connector | WR28-G (Grooved) |
| RF Output VSWR | 1.25:1 |
| IF Connector | N-Type Female |
| IF Input VSWR | 1.5:1 |
| Power Connector | AMPHENOL C01610C00600012 |
| M&C Connector | RJ45 |
| Alarm Status Indicator | LED (Yellow/Red) |
Physical Parameters
| Size | 10.6*5.4*6.1 inches 269*136*156 mm |
| Weight | 40W BUC: 12.8 lbs, 5.8 kg |
| Operating Temperature | -40 to +60 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-10,000 feet ASL |
