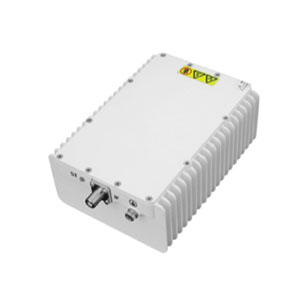

RevGo RGUC-AD10M205 RGUC-A Satellite Transceiver (TR) Ka-Band 10W 28 - 31 GHz
Product Code:
RGUC-AD10M205
Condition:
New
Availability:
YES
Weight:
1.70 KGS
Width:
21.50
(cm)
Height:
8.00
(cm)
Depth:
14.50
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
About the TRANSCEIVER
Reliability
• Highly integrated RF technologies (RFIC and GaN)
• Designed for high volume production
• Linearity optimized for high order modulation and high data rate
• Strict quality control processes resulting in <0.25% field failure rates
Product Features
• Variable power consumption 80W @40dBm
• Compact and light weight 6.6 lbs / 3.0kg
• Band selection from remote interface (SNMP)
• Low phase noise (exceeds IESS308/309)
• Rugged design for extreme environments (-40 to +60o C)
Key Specifications
| Band | Ka-Band |
| Tx Frequency Band | 28-31 GHz |
| Input power | VDC via M&C |
| Tx Ref Signal Type | 10 MHz internal ref |
| Rx Frequency Band | 21.2-21.7 GHz |
| Rx Ref Signal Type | 10 MHz external ref | 10 MHz internal ref - specify when ordering |
| Polarization Mode | Tx: RHCP, Rx: LHCP (fixed) | Tx: LHCP, Rx: RHCP (fixed) | Tx: RHCP, Rx: RHCP (fixed) | Tx; LHCP, Rx: LHCP (fixed) - specify when ordering |
Tx Specifications (BUC)
| IF Frequency | 950-1950MHz 950-1450MHz 1000-2000MHz |
| External Reference | 10MHz, 0±5dBm |
| Output Power (dBm) - Rated/Saturated | 40 |
| Output Power (dBm) - PLin1 | 38 |
| Output Power (dBm) - PLin2 | 37 |
| Output Power (dBm) - PLin3 | 36 |
| IMD3 (@3dB from rated power) | -25dBc |
| Small Signal Gain | 70 |
| Gain Variation | 1dB p-p max./36MHz 3dB p-p max. /500MHz 4dB p-p max./1000MHz |
| Gain stability | 3dB p-p |
| Gain Adjustment Range | 20dB (Step: 0.1 dB) |
| Phase Noise | -63dBc/Hz max.@100Hz -73dBc/Hz max.@1KHz -83dBc/Hz max.@10KHz -93dBc/Hz max.@100KHz |
| Output Spurious | -55dBc max. |
| Notes | PLin1: -26 dBc regrowth, 1.5 SR (commercial satellite) PLin2: -30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier) PLin3: <-25 dBc IMD3 (MIL-STD-188-164B, two-carrier) |
Rx Specifications (LNB)
| Output Frequency | 950-1950 MHz |
| Noise Figure | 1.8 dB (including OMT/filters) |
| Reference Signal | External Ref: 10 MHz +/-5 dBm Internal Ref: +/- 1ppm (optional) |
| Gain | 60 dB typ, 55 dB min |
| Gain Flatness | 4 dB p-p / 1000 MHz max |
| Gain Stability | 4 dB max |
| Phase Noise | -63 dBc/Hz @ 100 Hz -73 dBc/Hz @ 1 KHz -83 dBc/Hz @ 10 KHz -93 dBc/Hz @ 100 KHz |
Power Supply
| Input Pwr | +18 to +56 vDC |
| Pwr Consumption - @ PLin1 Output | 75W |
| Pwr Consumption - @ Rated Output | 90W |
Interfaces
| RF Output Conn | WR28-G (Grooved) |
| RF Output VSWR | Tx = 1.25:1, Rx = 2:1 |
| IF Input Connector | N-Type or F-Type |
| IF Input VSWR | 1.5:1 |
| Power Connector | ACS02E10SL-4P |
| M&C Connector | PT02E-12-14P RS485, RS232 & Ethernet |
| Alarm Indicators | LED |
Physical Parameters
| Size (inches) | 8.47*5.71*3.15 215*145*80 mm |
| Weight (lbs) | 0.77 1.7 kg |
| Operating Temp | -40 to +60 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-40,000 feet ASL |
5 customers are viewing this product
Details
About the TRANSCEIVER
Reliability
• Highly integrated RF technologies (RFIC and GaN)
• Designed for high volume production
• Linearity optimized for high order modulation and high data rate
• Strict quality control processes resulting in <0.25% field failure rates
Product Features
• Variable power consumption 80W @40dBm
• Compact and light weight 6.6 lbs / 3.0kg
• Band selection from remote interface (SNMP)
• Low phase noise (exceeds IESS308/309)
• Rugged design for extreme environments (-40 to +60o C)
Key Specifications
| Band | Ka-Band |
| Tx Frequency Band | 28-31 GHz |
| Input power | VDC via M&C |
| Tx Ref Signal Type | 10 MHz internal ref |
| Rx Frequency Band | 21.2-21.7 GHz |
| Rx Ref Signal Type | 10 MHz external ref | 10 MHz internal ref - specify when ordering |
| Polarization Mode | Tx: RHCP, Rx: LHCP (fixed) | Tx: LHCP, Rx: RHCP (fixed) | Tx: RHCP, Rx: RHCP (fixed) | Tx; LHCP, Rx: LHCP (fixed) - specify when ordering |
Tx Specifications (BUC)
| IF Frequency | 950-1950MHz 950-1450MHz 1000-2000MHz |
| External Reference | 10MHz, 0±5dBm |
| Output Power (dBm) - Rated/Saturated | 40 |
| Output Power (dBm) - PLin1 | 38 |
| Output Power (dBm) - PLin2 | 37 |
| Output Power (dBm) - PLin3 | 36 |
| IMD3 (@3dB from rated power) | -25dBc |
| Small Signal Gain | 70 |
| Gain Variation | 1dB p-p max./36MHz 3dB p-p max. /500MHz 4dB p-p max./1000MHz |
| Gain stability | 3dB p-p |
| Gain Adjustment Range | 20dB (Step: 0.1 dB) |
| Phase Noise | -63dBc/Hz max.@100Hz -73dBc/Hz max.@1KHz -83dBc/Hz max.@10KHz -93dBc/Hz max.@100KHz |
| Output Spurious | -55dBc max. |
| Notes | PLin1: -26 dBc regrowth, 1.5 SR (commercial satellite) PLin2: -30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier) PLin3: <-25 dBc IMD3 (MIL-STD-188-164B, two-carrier) |
Rx Specifications (LNB)
| Output Frequency | 950-1950 MHz |
| Noise Figure | 1.8 dB (including OMT/filters) |
| Reference Signal | External Ref: 10 MHz +/-5 dBm Internal Ref: +/- 1ppm (optional) |
| Gain | 60 dB typ, 55 dB min |
| Gain Flatness | 4 dB p-p / 1000 MHz max |
| Gain Stability | 4 dB max |
| Phase Noise | -63 dBc/Hz @ 100 Hz -73 dBc/Hz @ 1 KHz -83 dBc/Hz @ 10 KHz -93 dBc/Hz @ 100 KHz |
Power Supply
| Input Pwr | +18 to +56 vDC |
| Pwr Consumption - @ PLin1 Output | 75W |
| Pwr Consumption - @ Rated Output | 90W |
Interfaces
| RF Output Conn | WR28-G (Grooved) |
| RF Output VSWR | Tx = 1.25:1, Rx = 2:1 |
| IF Input Connector | N-Type or F-Type |
| IF Input VSWR | 1.5:1 |
| Power Connector | ACS02E10SL-4P |
| M&C Connector | PT02E-12-14P RS485, RS232 & Ethernet |
| Alarm Indicators | LED |
Physical Parameters
| Size (inches) | 8.47*5.71*3.15 215*145*80 mm |
| Weight (lbs) | 0.77 1.7 kg |
| Operating Temp | -40 to +60 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-40,000 feet ASL |
Download
| Download Name | |
| Satellite Transceiver (TR) Ka-Band 6 / 10W Datasheet | |
