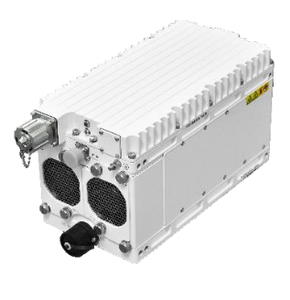

RevGo RGUC-A740-48RE-M Block Up-Converter (BUC) Ka-Band 40W 27.652 - 29.071 GHz
Product Code:
RGUC-A740-48RE-M
Condition:
New
Availability:
YES
Weight:
5.80 KGS
Width:
26.90
(cm)
Height:
13.60
(cm)
Depth:
15.60
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
About the CONVERTER
The RGUC-A740-48RE-M is a RevGo RF unit operating in Ka-Band, with an output range of 27.652 - 29.071 GHz. Full electrical, mechanical and environmental specifications are listed below.
Key Specifications
| Band | Ka-Band |
| Output Frequency | Ka-Band: 27.652 - 29.071 GHz |
| M&C Interface | Eth & RS485/232 |
RF Specifications
| External Ref | 10 MHz, 0 ± 5 dBm |
| Output Power - Rated/Saturated | 46 dBm |
| Output Power - PLin1 | 45 dBm |
| Output Power - PLin2 | 44 dBm |
| Output Power - PLin3 | 43 dBm |
| IMD3 (3dB from rated) | - 25 dBc |
| Small Signal Gain | 67-77 dB |
| Gain Variation | 1 dB p-p / 36 MHz 3 dB p-p / 500 MHz 4 dB p-p / 1000 MHz |
| Gain stability | 3 dB p-p |
| Gain Adjustment | 10 dB (Step: 0.1 dB) |
| Phase Noise | -63 dBc / Hz @ 100 Hz -73 dBc / Hz @ 1 KHz -83 dBc / Hz @ 10 KHz -93 dBc / Hz @ 100 KHz |
| Output Spurious | -60 dBc |
| Notes | PLin1: -26 dBc regrowth, 1.5 SR (commercial satellite) PLin2: -30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier) PLin3: <-25 dBc IMD3 (MIL-STD-188-164B, two-carrier) |
| Frequency Band 1 - RF (GHz) | 27.652-28.388 |
| Frequency Band 1 - IF (MHz) | 1052-1788 |
| Frequency Band 1 - LO (GHz) | 26.60 |
| Frequency Band 2 - RF (GHz) | 28.172-29.071 |
| Frequency Band 2 - IF (MHz) | 972-1871 |
| Frequency Band 2 - LO (GHz) | 27.20 |
Power Supply
| Input Power | +36 to +60 V DC |
| Power Consumption - @ PLin3 Output | 225W |
| Power Consumption - @ Rated Output | 350W |
Interfaces
| RF Output Connector | WR28-G (Grooved) |
| RF Output VSWR | 1.25:1 |
| IF Connector | N-Type Female |
| IF Input VSWR | 1.5:1 |
| Power Connector | C01610C00600012 |
| M&C Connector | RJ45 PT02E-12-14P (optional) |
| Alarm Status Indicator | LED (Yellow & Red) |
Physical Parameters
| Size (inches) | 10.6*5.4*6.1 269*136*156 mm |
| Weight (lbs) | 12 lbs 5.8 kg |
| Operating Temperature | -40 to +60 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-10,000 feet ASL |
