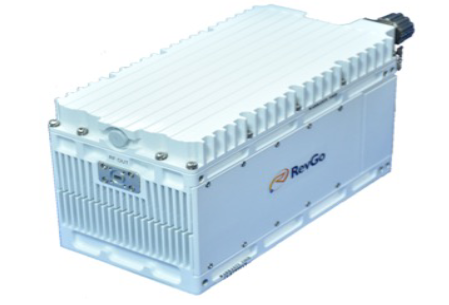

RevGo RGUC-A640-DCXX-M Classic Block Up-Converter (BUC) Ka-Band 40W 28.172 - 29.071 GHz
Product Code:
RGUC-A640-DCXX-M
Condition:
New
Availability:
YES
Weight:
5.80 KGS
Width:
25.90
(cm)
Height:
13.60
(cm)
Depth:
11.80
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
About the CONVERTER
The RGUC-A640-DCXX-M is a RevGo RF unit operating in Ka-Band, with an output range of 28.172 - 29.071 GHz. Full electrical, mechanical and environmental specifications are listed below.
Key Specifications
| Band | Ka-Band |
| Output Frequency | Ka-Band: 28.172 - 29.071 GHz |
| M&C Interface | RJ45 & RS485/232 |
RF Specifications
| IF Frequency | 950-1950 MHz 950-1450 MHz 1000-2000 MHz |
| External Ref | 10 MHz, 0 ± 5 dBm |
| Output Power - Rated/Saturated | 46 dBm |
| Output Power - PLin1 | 45 dBm |
| Output Power - PLin2 | 44 dBm |
| Output Power - PLin3 | 43 dBm |
| IMD3 (3dB from rated) | - 25 dBc |
| Small Signal Gain | 70 dB |
| Gain Variation | 1 dB p-p / 36 MHz 3 dB p-p / 500 MHz 4 dB p-p / 750 MHz |
| Gain stability | 3 dB p-p |
| Gain Adjustment | 20 dB (Step: 0.1 dB) |
| Phase Noise | -63 dBc / Hz @ 100 Hz -73 dBc / Hz @ 1 KHz -83 dBc / Hz @ 10 KHz -93 dBc / Hz @ 100 KHz |
| Output Spurious | -55 dBc |
| Notes | PLin1: -26 dBc regrowth, 1.5 SR (commercial satellite) PLin2: -30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier) PLin3: <-25 dBc IMD3 (MIL-STD-188-164B, two-carrier) |
Power Supply
| Input Power | +36 to +56 V DC |
| Power Consumption - @ PLin3 Output | 225W |
| Power Consumption - @ Rated Output | 350W |
Interfaces
| RF Output Connector | WR28-G (Grooved) |
| RF Output VSWR | 1.25:1 |
| IF Connector | N-Type Female |
| IF Input VSWR | 1.5:1 |
| Power Connector | C01610C00600012 |
| M&C Connector | RJ45 and optional PT02E-12-14P (RS485, RS232) |
| Alarm Status Indicator | LED (green/red) |
Physical Parameters
| Size (inches) | 10.2*5.4*4.7 259*136*118 mm |
| Weight (lbs) | 12 lbs 5.8 kg |
| Operating Temperature | -40 to +60 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-10,000 feet ASL |
