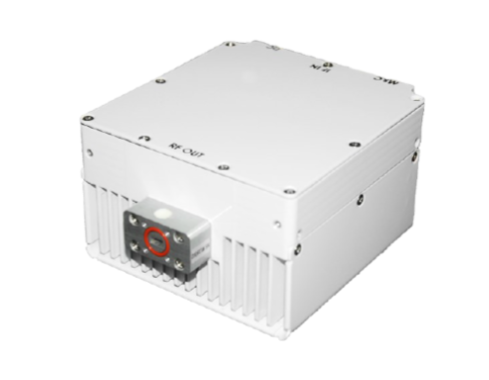

RevGo RGUC-A510-DCRE-C Block Up-Converter (BUC) Ka-Band 10W 27.652 - 28.388 GHz
Product Code:
RGUC-A510-DCRE-C
Condition:
New
Availability:
YES
Weight:
1.50 KGS
Width:
12.00
(cm)
Height:
7.50
(cm)
Depth:
12.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
About the CONVERTER
The RGUC-A510-DCRE-C is a RevGo RF unit operating in Ka-Band, with an output range of 27.652 - 28.388 GHz and 10W of rated output power. Full electrical, mechanical and environmental specifications are listed below.
Key Specifications
| Band | Ka-Band |
| Output Frequency | Ka-Band: 27.652 - 28.388 GHz |
| Output Power | 10W |
RF Specifications
| IF Frequency | 950-1950MHz 950-1450MHz 1000-2000MHz |
| External Reference | 10MHz, 0±5dBm |
| Output Power (dBm) - Rated/Saturated | 40 dBm |
| Output Power (dBm) - PLin1 | 39 |
| Output Power (dBm) - PLin2 | 38 |
| Output Power (dBm) - PLin3 | 37 |
| IMD3 (@3dB from rated power) | -25dBc |
| Small Signal Gain | 65 dB |
| Gain Variation | 1dB p-p max./36MHz 3dB p-p max. /500MHz 4dB p-p max./1000MHz |
| Gain stability | 3dB p-p |
| Gain Adjustment Range | 15 dB (Step: 0.1 dB) |
| Phase Noise | -60dBc/Hz max.@100Hz -75dBc/Hz max.@1KHz -85dBc/Hz max.@10KHz -95dBc/Hz max.@100KHz |
| Output Spurious | -55dBc max. |
| Notes | PLin1: -26 dBc regrowth, 1.5 SR (commercial satellite) PLin2: -30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier) PLin3: <-25 dBc IMD3 (MIL-STD-188-164B, two-carrier) |
Power Supply
| Input Power | +18 to +56 VDC |
| Power Consumption - @ PLin1 Output | 55W |
| Power Consumption - @ Rated Output | 70W |
Interfaces
| RF Output Connector | WR28-G (Grooved) |
| RF Output VSWR | 1:3:1 |
| IF Input Connector | N-Type |
| IF Input VSWR | 2:1 |
| Power Connector | ACS02E10SL-4P |
| M&C Connector | PT02E-12-14P RS485, RS232 & Ethernet |
| LED Alarm Indicator | Red on = PLL alarm Red flashing = high temp |
Physical Parameters
| Size (inches) | 4.7*4.7*3.0 120*120*75 mm |
| Weight (lbs) | 3.3 1.5 kg |
| Operating Temperature | -40 to +60 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-40,000 feet ASL |
5 customers are viewing this product
Details
About the CONVERTER
The RGUC-A510-DCRE-C is a RevGo RF unit operating in Ka-Band, with an output range of 27.652 - 28.388 GHz and 10W of rated output power. Full electrical, mechanical and environmental specifications are listed below.
Key Specifications
| Band | Ka-Band |
| Output Frequency | Ka-Band: 27.652 - 28.388 GHz |
| Output Power | 10W |
RF Specifications
| IF Frequency | 950-1950MHz 950-1450MHz 1000-2000MHz |
| External Reference | 10MHz, 0±5dBm |
| Output Power (dBm) - Rated/Saturated | 40 dBm |
| Output Power (dBm) - PLin1 | 39 |
| Output Power (dBm) - PLin2 | 38 |
| Output Power (dBm) - PLin3 | 37 |
| IMD3 (@3dB from rated power) | -25dBc |
| Small Signal Gain | 65 dB |
| Gain Variation | 1dB p-p max./36MHz 3dB p-p max. /500MHz 4dB p-p max./1000MHz |
| Gain stability | 3dB p-p |
| Gain Adjustment Range | 15 dB (Step: 0.1 dB) |
| Phase Noise | -60dBc/Hz max.@100Hz -75dBc/Hz max.@1KHz -85dBc/Hz max.@10KHz -95dBc/Hz max.@100KHz |
| Output Spurious | -55dBc max. |
| Notes | PLin1: -26 dBc regrowth, 1.5 SR (commercial satellite) PLin2: -30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier) PLin3: <-25 dBc IMD3 (MIL-STD-188-164B, two-carrier) |
Power Supply
| Input Power | +18 to +56 VDC |
| Power Consumption - @ PLin1 Output | 55W |
| Power Consumption - @ Rated Output | 70W |
Interfaces
| RF Output Connector | WR28-G (Grooved) |
| RF Output VSWR | 1:3:1 |
| IF Input Connector | N-Type |
| IF Input VSWR | 2:1 |
| Power Connector | ACS02E10SL-4P |
| M&C Connector | PT02E-12-14P RS485, RS232 & Ethernet |
| LED Alarm Indicator | Red on = PLL alarm Red flashing = high temp |
Physical Parameters
| Size (inches) | 4.7*4.7*3.0 120*120*75 mm |
| Weight (lbs) | 3.3 1.5 kg |
| Operating Temperature | -40 to +60 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-40,000 feet ASL |
