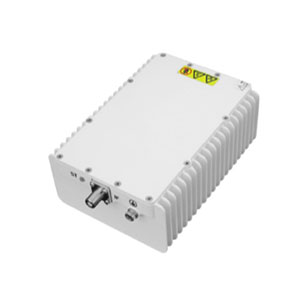

RevGo RGUC-A406M106 RGUC-A Satellite Transceiver (TR) Ka-Band 6W 29 - 30 GHz & 30 - 31 GHz
Product Code:
RGUC-A406M106
Condition:
New
Availability:
YES
Weight:
1.70 KGS
Width:
21.50
(cm)
Height:
8.00
(cm)
Depth:
14.50
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
About the TRANSCEIVER
Reliability
• Highly integrated RF technologies (RFIC and GaN)
• Designed for high volume production
• Linearity optimized for high order modulation and high data rate
• Strict quality control processes resulting in <0.25% field failure rates
Product Features 6W 10W
• Variable power consumption 60W @38dBm 80W @40dBm
• Compact and light weight 3.3 lbs / 1.5kg 6.6 lbs / 3.0kg
• Single-, dual-, tri-band options (27.5-31GHz)
• Band selection from remote interface (SNMP)
• IFL input power or option for separate DC connector
• Low phase noise (exceeds IESS308/309)
• Rugged design for extreme environments (-40 to +60o C)
̈ Part Number / Ordering Information
R G U C - A a b b c d e f g
A: Ka-Band
a: Tx Frequency Band
1 = 29-30 GHz
2 = 29.5-30 GHz
3 = 30-31 GHz
4 = 29-30 GHz & 30-31 GHz
A = 27.5-28.5 GHz
B = 28.25-29.25 GHz
C = 27.5-30 GHz
D = 28-31 GHz
bb: Output Power
06 = 6W
10 = 10W
c: Input power
F = VDC via IFL
M = VDC via M&C
d: Tx Ref Signal Type
1 = 10 MHz external ref
2= 10 MHz internal ref
e: Rx Frequency Band
1 = 17.2-18.2 GHz
2 = 18.2-19.2 GHz
3 = 19.2-20.2 GHz
4 = 20.2-21.2 GHz
5 = 21.2-21.7 GHz
6 = 18.2-20.2 & 19.2-20.2 GHz
7 = 19.2-20.2 & 20.2-21.2 GHz
8 = 17.70-18.70 GHz
9 = 18.45-19.45 GHz
T = Triband (3, 8, & 9)
f: Rx Ref Signal Type
E = 10 MHz external ref
I = 10 MHz internal ref
g: Polarization Mode
1 = Tx: RHCP, Rx: LHCP (fixed)
2 = Tx: LHCP, Rx: RHCP (fixed)
3 = Tx: RHCP, Rx: RHCP (fixed)
4 = Tx; LHCP, Rx: LHCP (fixed)
Key Specifications
| Band | Ka-Band |
| Tx Frequency Band | 29-30 GHz & 30-31 GHz |
| Input power | VDC via M&C |
| Tx Ref Signal Type | 10 MHz external ref |
| Rx Frequency Band | 18.2-20.2 & 19.2-20.2 GHz |
| Rx Ref Signal Type | 10 MHz external ref | 10 MHz internal ref - specify when ordering |
| Polarization Mode | Tx: RHCP, Rx: LHCP (fixed) | Tx: LHCP, Rx: RHCP (fixed) | Tx: RHCP, Rx: RHCP (fixed) | Tx; LHCP, Rx: LHCP (fixed) - specify when ordering |
Tx Specifications (BUC)
| IF Frequency | 950-1950MHz 950-1450MHz 1000-2000MHz |
| External Reference | 10MHz, 0±5dBm |
| Output Power (dBm) - Rated/Saturated | 38 |
| Output Power (dBm) - PLin1 | 36 |
| Output Power (dBm) - PLin2 | 35 |
| Output Power (dBm) - PLin3 | 34 |
| IMD3 (@3dB from rated power) | -25dBc |
| Small Signal Gain | 65 |
| Gain Variation | 1dB p-p max./36MHz 3dB p-p max. /500MHz 4dB p-p max./1000MHz |
| Gain stability | 3dB p-p |
| Gain Adjustment Range | 20dB (Step: 0.1 dB) |
| Phase Noise | -63dBc/Hz max.@100Hz -73dBc/Hz max.@1KHz -83dBc/Hz max.@10KHz -93dBc/Hz max.@100KHz |
| Output Spurious | -55dBc max. |
| Notes | PLin1: -26 dBc regrowth, 1.5 SR (commercial satellite) PLin2: -30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier) PLin3: <-25 dBc IMD3 (MIL-STD-188-164B, two-carrier) |
Rx Specifications (LNB)
| Rx Frequency | 18.2-19.2 & 19.2-20.2 GHz |
| Output Frequency | 950-1950 MHz |
| Noise Figure | 1.8 dB (including OMT/filters) |
| Reference Signal | External Ref: 10 MHz +/-5 dBm Internal Ref: +/- 1ppm (optional) |
| Gain | 60 dB typ, 55 dB min |
| Gain Flatness | 4 dB p-p / 1000 MHz max |
| Gain Stability | 4 dB max |
| Phase Noise | -63 dBc/Hz @ 100 Hz -73 dBc/Hz @ 1 KHz -83 dBc/Hz @ 10 KHz -93 dBc/Hz @ 100 KHz |
Power Supply
| Input Pwr | +18 to +56 vDC |
| Pwr Consumption - @ PLin1 Output | 55W |
| Pwr Consumption - @ Rated Output | 70W |
Interfaces
| RF Output Conn | WR28-G (Grooved) |
| RF Output VSWR | Tx = 1.25:1, Rx = 2:1 |
| IF Input Connector | N-Type or F-Type |
| IF Input VSWR | 1.5:1 |
| Power Connector | ACS02E10SL-4P |
| M&C Connector | PT02E-12-14P RS485, RS232 & Ethernet |
| Alarm Indicators | LED |

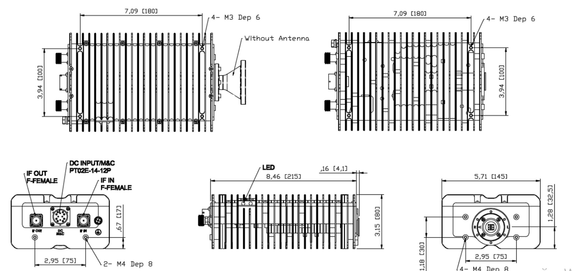

Physical Parameters
| Size (inches) | 8.47*5.71*3.15 215*145*80 mm |
| Weight (lbs) | 0.77 1.7 kg |
| Operating Temp | -40 to +60 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-40,000 feet ASL |
