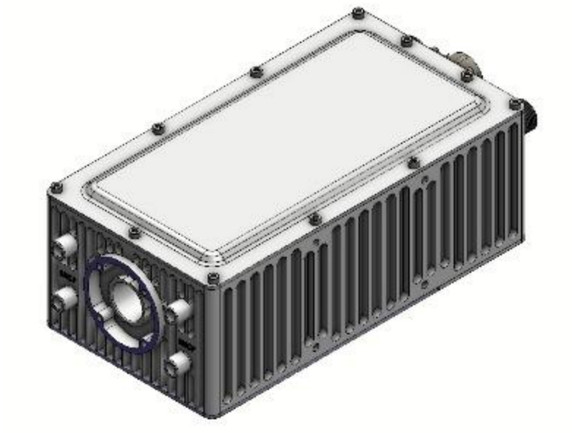

RevGo RGTR-AQ10-TA01-CMXN-C0 Satellite Transceiver 10W Ka-Band 27.5 - 31.0 GHz
Product Code:
RGTR-AQ10-TA01-CMXN-C0
Condition:
New
Weight:
3.00 KGS
Width:
21.00
(cm)
Height:
8.00
(cm)
Depth:
11.20
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
Key Specifications
| Band | Ka-Band |
| TX Output Power | 10W |
| Output RF Frequency | 27.50-31.00 GHz |
| Input RF Frequency | 17.70-20.20 GHz |
| IF Input Frequency | 1400-2400 MHz |
Tx Specifications
| Tx RF Frequency | 27.50-31.00 GHz |
| IF Input Frequency | 1400-2400 MHz |
| LO Frequence [GHz] | 26.10 26.85 27.60 28.60 |
| Ref Signal Type | 10 MHz external ref |
| External Reference | 10 MHz, 0±5 dBm |
| Output Power | 10W |
| Rated/Saturated | 40 dBm |
| Plin1 | 39 dBm |
| Plin2 | 37 dBm |
| Small Signal Gain | 70 dB (55-70 dB, Step by 0.1 dB) |
| Gain Flatness | 3 dB p-p/500 MHz 4 dB p-p/1000 MHz |
| Gain stability | 3 dB p-p |
| Phase Noise | ≤ -63 dBc/Hz @100 Hz ≤ -73 dBc/Hz @1 KHz ≤ -83 dBc/Hz @10 KHz ≤ -93 dBc/Hz @100 KHz |
| Output Spurious | -55 dBc |
Rx Specifications
| Rx Frequency | Tri-band (3 LOs): 17.70-18.70 GHz, 18.45-19.45 GHz, 19.20-20.20 GHz |
| Output Frequency | 950-1950 MHz |
| LO Frequency | 16.75 GHz & 17.50 GHz |
| switched by M&C | 18.25 GHz & 20.25 GHz |
| LO Stability | ±1 ppm (Internal Ref) |
| Noise Figure | 1.5 dB typ. |
| P-1dB | 10 dB min. |
| Gain | 60 dB |
| Gain Flatness | 1 dB p-p / 36 MHz 5 dB p-p / 1000 MHz |
| Image Rejection | 40 dB @ 16.75 GHz 20 dB @ 19.25 GHz |
| Phase Noise | ≤ -75 dBc/Hz @1 KHz ≤ -85 dBc/Hz @10 KHz ≤ -95 dBc/Hz @100 KHz |
Physical Parameters
| Size (inches) | 8.26*4.40*3.14 210x112x80 mm |
| Weight (lbs) | 6.61 3.0 kg |
| Operating Temp | -40 to +60 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-10,000 feet ASL |
| protection | IP67 |
| Input Power | 18 - 55 VDC |
| Power Consumption | 10 W |
| Prated | 70 W |
Interfaces
| IF Connector | N-Type (50 Ω), F-Type (75 Ω) optional |
| MS Connector | 4-Pin for Power supply |
| PT02E-14-12P(072) | 8-pin for M&C (RS485, Ethernet) |
5 customers are viewing this product
Details
Key Specifications
| Band | Ka-Band |
| TX Output Power | 10W |
| Output RF Frequency | 27.50-31.00 GHz |
| Input RF Frequency | 17.70-20.20 GHz |
| IF Input Frequency | 1400-2400 MHz |
Tx Specifications
| Tx RF Frequency | 27.50-31.00 GHz |
| IF Input Frequency | 1400-2400 MHz |
| LO Frequence [GHz] | 26.10 26.85 27.60 28.60 |
| Ref Signal Type | 10 MHz external ref |
| External Reference | 10 MHz, 0±5 dBm |
| Output Power | 10W |
| Rated/Saturated | 40 dBm |
| Plin1 | 39 dBm |
| Plin2 | 37 dBm |
| Small Signal Gain | 70 dB (55-70 dB, Step by 0.1 dB) |
| Gain Flatness | 3 dB p-p/500 MHz 4 dB p-p/1000 MHz |
| Gain stability | 3 dB p-p |
| Phase Noise | ≤ -63 dBc/Hz @100 Hz ≤ -73 dBc/Hz @1 KHz ≤ -83 dBc/Hz @10 KHz ≤ -93 dBc/Hz @100 KHz |
| Output Spurious | -55 dBc |
Rx Specifications
| Rx Frequency | Tri-band (3 LOs): 17.70-18.70 GHz, 18.45-19.45 GHz, 19.20-20.20 GHz |
| Output Frequency | 950-1950 MHz |
| LO Frequency | 16.75 GHz & 17.50 GHz |
| switched by M&C | 18.25 GHz & 20.25 GHz |
| LO Stability | ±1 ppm (Internal Ref) |
| Noise Figure | 1.5 dB typ. |
| P-1dB | 10 dB min. |
| Gain | 60 dB |
| Gain Flatness | 1 dB p-p / 36 MHz 5 dB p-p / 1000 MHz |
| Image Rejection | 40 dB @ 16.75 GHz 20 dB @ 19.25 GHz |
| Phase Noise | ≤ -75 dBc/Hz @1 KHz ≤ -85 dBc/Hz @10 KHz ≤ -95 dBc/Hz @100 KHz |
Physical Parameters
| Size (inches) | 8.26*4.40*3.14 210x112x80 mm |
| Weight (lbs) | 6.61 3.0 kg |
| Operating Temp | -40 to +60 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-10,000 feet ASL |
| protection | IP67 |
| Input Power | 18 - 55 VDC |
| Power Consumption | 10 W |
| Prated | 70 W |
Interfaces
| IF Connector | N-Type (50 Ω), F-Type (75 Ω) optional |
| MS Connector | 4-Pin for Power supply |
| PT02E-14-12P(072) | 8-pin for M&C (RS485, Ethernet) |
