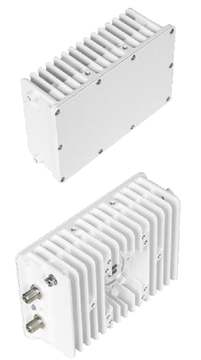

RevGo RGTR-A104-6A01-TXLF-D Satellite Transceiver Ka-Band TR 4W 18.2 - 20.2 GHz
Product Code:
RGTR-A104-6A01-TXLF-D
Condition:
New
Weight:
1.76 KGS
Width:
14.80
(cm)
Height:
5.00
(cm)
Depth:
9.60
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
About the TRANSCEIVER
The RGTR-A104-6A01-TXLF-D is a RevGo transceiver operating in Ka-Band. Full electrical, mechanical and environmental specifications are listed below.
Key Specifications
| Band | Ka-Band |
| Rx Frequency | 18.20-20.20 GHz |
Tx Specifications
| Tx RF Frequency | 29.00-30.00 GHz |
| IF Frequency | 1400-2400 MHz |
| LO Frequency | 27.60 GHz |
| Ref Signal Type | 10 MHz external ref |
| External Reference | 10 MHz, 0±5 dBm |
| Output Power | 4W |
| Rated/Saturated | 36 dBm |
| ACPR @35dBm | -22 dBc |
| Small Signal Gain | 55±4 dB 51 dB min. |
| Gain Flatness | 1 dB p-p max./36MHz 5 dB p-p max./1000MHz |
| Gain stability | 3 dB p-p |
| Phase Noise | 2.2° max. @RMS 100Hz to 1MHz |
| Output Spurious | -50 dBc max. |
Rx Specifications
| Rx Frequency | 18.20-19.20 & 19.20-20.20 GHz |
| Output Frequency | 950-1950 MHz |
| LO Frequency | Dual-LO switched by voltage 17.25 GHz & 18.25 GHz (optional) |
| LO Stability | Internal Ref: ±3 ppm max. |
| Noise Figure | 1.5 dB typ. |
| P-1dB | 10 dBm min. |
| Gain | 52 dB min. |
| Gain Flatness | 1 dB p-p / 36 MHz max. 5 dB p-p / 1000 MHz max. |
| Image Rejection | 30 dBc |
| Phase Noise | 2.0° max. @ RMS 1kHz to 1MHz |
TX Power Supply
| Input Power (DC) | + 18 to +36 VDC |
| Pwr Consumption | 30 W typ. 35 W max. |
RX Power Supply
| Input Power (DC) | +12 to +24 VDC |
| Pwr Consumption | 4 W |
Physical Parameters
| Size (inches) | 5.82*3.77*1.96 148*96*50 mm |
| Weight (lbs) | 1.76 0.8 kg |
| Operating Temp | -40 to +55 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-10,000 feet ASL |
| Alarm Indicators | LED *1 |
| protection | IP67 |
Interfaces
| TX Connector | F-Type (75 Ω) |
| RX Connector | F-Type (75 Ω) |
Alarm
| Normal | Green always on |
| TX PLL unclock | Red Flash |
| Abnormal | Red always on |
5 customers are viewing this product
Details
About the TRANSCEIVER
The RGTR-A104-6A01-TXLF-D is a RevGo transceiver operating in Ka-Band. Full electrical, mechanical and environmental specifications are listed below.
Key Specifications
| Band | Ka-Band |
| Rx Frequency | 18.20-20.20 GHz |
Tx Specifications
| Tx RF Frequency | 29.00-30.00 GHz |
| IF Frequency | 1400-2400 MHz |
| LO Frequency | 27.60 GHz |
| Ref Signal Type | 10 MHz external ref |
| External Reference | 10 MHz, 0±5 dBm |
| Output Power | 4W |
| Rated/Saturated | 36 dBm |
| ACPR @35dBm | -22 dBc |
| Small Signal Gain | 55±4 dB 51 dB min. |
| Gain Flatness | 1 dB p-p max./36MHz 5 dB p-p max./1000MHz |
| Gain stability | 3 dB p-p |
| Phase Noise | 2.2° max. @RMS 100Hz to 1MHz |
| Output Spurious | -50 dBc max. |
Rx Specifications
| Rx Frequency | 18.20-19.20 & 19.20-20.20 GHz |
| Output Frequency | 950-1950 MHz |
| LO Frequency | Dual-LO switched by voltage 17.25 GHz & 18.25 GHz (optional) |
| LO Stability | Internal Ref: ±3 ppm max. |
| Noise Figure | 1.5 dB typ. |
| P-1dB | 10 dBm min. |
| Gain | 52 dB min. |
| Gain Flatness | 1 dB p-p / 36 MHz max. 5 dB p-p / 1000 MHz max. |
| Image Rejection | 30 dBc |
| Phase Noise | 2.0° max. @ RMS 1kHz to 1MHz |
TX Power Supply
| Input Power (DC) | + 18 to +36 VDC |
| Pwr Consumption | 30 W typ. 35 W max. |
RX Power Supply
| Input Power (DC) | +12 to +24 VDC |
| Pwr Consumption | 4 W |
Physical Parameters
| Size (inches) | 5.82*3.77*1.96 148*96*50 mm |
| Weight (lbs) | 1.76 0.8 kg |
| Operating Temp | -40 to +55 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-10,000 feet ASL |
| Alarm Indicators | LED *1 |
| protection | IP67 |
Interfaces
| TX Connector | F-Type (75 Ω) |
| RX Connector | F-Type (75 Ω) |
Alarm
| Normal | Green always on |
| TX PLL unclock | Red Flash |
| Abnormal | Red always on |
Download
| Download Name | |
| RevGo Satellite Transceiver Ka-Band TR 4W Datasheet | |
