RevGo

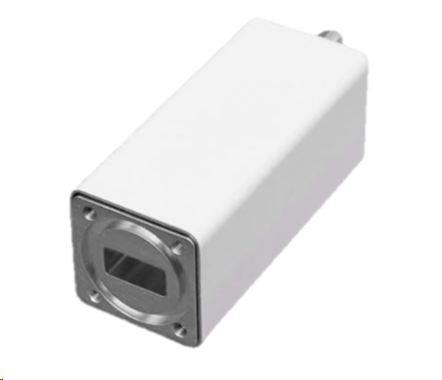

RevGo RGLN-U3AEXN-B1 Low Noise Block (LNB) Ku-Band 12.25 - 12.75 GHz, 1 dB
Product Code:
RGLN-U3AEXN-B1
Condition:
New
Availability:
YES
Weight:
0.25 KGS
Width:
10.00
(cm)
Height:
4.00
(cm)
Depth:
4.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
About the LNB
The RGLN-U3AEXN-B1 is a RevGo low noise block downconverter (LNB) operating in Ku-Band, with an input range of 12.25 - 12.75 GHz, a noise figure of 1 dB and an N-type IF interface. Full electrical, mechanical and environmental specifications are listed below.
Key Specifications
| Band | Ku-Band |
| Input Frequency | Ku-Band: 12.25 - 12.75 GHz |
| Noise Figure | 1 dB |
| IF Connector | N-Connector |
| Output Frequency | 950-1450 MHz |
| Reference Stability | External reference |
| Power & Output Connector | N-Type (50 Ohm) |
| LNB Version | Gain 55 dB, NF 1 dB max |
RF Specifications
| IF Frequency - Single-band | 12.25-12.75 GHz |
| Output Frequency | 950-1450 MHz |
| Noise Figure | 1.0 dB max |
| LO Stability | External reference |
| LO Leakage Level - IF connector | ≤ -30 dBm maximum |
| LO Leakage Level - RF connector | ≤ -60 dBm maximum |
| Conversion Gain | 50-60 dB or 55-65 dB |
| Output P1dB | 10 dBm minimum |
| Phase Noise | -65 dBc/Hz max @ 100 Hz -75 dBc/Hz max @ 1 KHz -85 dBc/Hz max @ 10 KHz -95 dBc/Hz max @ 100 KHz |
| Output Spurious | -55 dBc @ -10 dBm (IF output) |
Power Supply
| Input Power | via IFL connector |
| Input Power - Single-band | 12-24 VDC |
| Power Consumption | 3W (4W using ext ref) |
Interfaces
| Input Connector | WR75-G (Grooved) |
| IF Input VSWR | 2.5:1 |
| Pwr/Output Connector | N-Type Female |
| Output VSWR | 2.0:1 |
Physical Parameters
| Dimensions - Int. ref | 95x40x40 mm |
| Dimensions - Ext ref | 100x40x40 mm |
| Weight - Int ref | 0.55lbs / 240gr. |
| Weight - Ext ref. | 250gr. |
| Operating Temperature | -40 to +60 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-40,000 feet ASL |
| Water-proof Class | IP 65 |
5 customers are viewing this product
Details
About the LNB
The RGLN-U3AEXN-B1 is a RevGo low noise block downconverter (LNB) operating in Ku-Band, with an input range of 12.25 - 12.75 GHz, a noise figure of 1 dB and an N-type IF interface. Full electrical, mechanical and environmental specifications are listed below.
Key Specifications
| Band | Ku-Band |
| Input Frequency | Ku-Band: 12.25 - 12.75 GHz |
| Noise Figure | 1 dB |
| IF Connector | N-Connector |
| Output Frequency | 950-1450 MHz |
| Reference Stability | External reference |
| Power & Output Connector | N-Type (50 Ohm) |
| LNB Version | Gain 55 dB, NF 1 dB max |
RF Specifications
| IF Frequency - Single-band | 12.25-12.75 GHz |
| Output Frequency | 950-1450 MHz |
| Noise Figure | 1.0 dB max |
| LO Stability | External reference |
| LO Leakage Level - IF connector | ≤ -30 dBm maximum |
| LO Leakage Level - RF connector | ≤ -60 dBm maximum |
| Conversion Gain | 50-60 dB or 55-65 dB |
| Output P1dB | 10 dBm minimum |
| Phase Noise | -65 dBc/Hz max @ 100 Hz -75 dBc/Hz max @ 1 KHz -85 dBc/Hz max @ 10 KHz -95 dBc/Hz max @ 100 KHz |
| Output Spurious | -55 dBc @ -10 dBm (IF output) |
Power Supply
| Input Power | via IFL connector |
| Input Power - Single-band | 12-24 VDC |
| Power Consumption | 3W (4W using ext ref) |
Interfaces
| Input Connector | WR75-G (Grooved) |
| IF Input VSWR | 2.5:1 |
| Pwr/Output Connector | N-Type Female |
| Output VSWR | 2.0:1 |
Physical Parameters
| Dimensions - Int. ref | 95x40x40 mm |
| Dimensions - Ext ref | 100x40x40 mm |
| Weight - Int ref | 0.55lbs / 240gr. |
| Weight - Ext ref. | 250gr. |
| Operating Temperature | -40 to +60 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-40,000 feet ASL |
| Water-proof Class | IP 65 |
