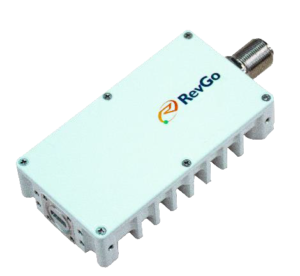

RevGo RGLN-ATCEXN-C0 Low Noise Block (LNB) Ka-Band FB 17.7 - 20.2 GHz
Product Code:
RGLN-ATCEXN-C0
Condition:
New
Weight:
0.66 KGS
Width:
12.00
(cm)
Height:
2.60
(cm)
Depth:
6.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
About the LNB
The RGLN-ATCEXN-C0 is a RevGo low noise block downconverter (LNB) operating in Ka-Band, with an input range of 17.70 - 20.20 GHz. Full electrical, mechanical and environmental specifications are listed below.
Key Specifications
| Band | Ka-Band |
| Input Frequency | Ka-Band: 17.70 - 20.20 GHz |
| Input Frequency | 17.70-20.20 GHz (Tri-band) |
| Reference type | External ref. |
RF Specifications
| Input Frequency - LO: 16.75 GHz | Band 1: 17.70-18.70 GHz |
| Input Frequency - LO: 17.50 GHz | Band 2: 18.45-19.45 GHz |
| Input Frequency - LO: 18.25 GHz | Band 3: 19.20-20.20 GHz |
| Output Frequency | 950-1950 MHz |
| Noise Figure | 1.5 dB (RF at band 1, 2, 3) 1.6 dB (RF at band 4) |
| LO Stability | External reference |
| LO Leakage Level - IF connector | -40 dBm max. |
| LO Leakage Level - RF connector | -60 dBm max. |
| Conversion Gain | 55 to 65 dB |
| Output P-1dB | 10 dBm min. 15 dBm typ. |
| Phase Noise | -75 dBc/Hz @1 KHz -85 dBc/Hz @10 KHz -95 dBc/Hz @100 KHz |
| Image Rejection | 40 dB @16.75 GHz, 20 dB @19.25 GHz |
| Output Spurious | -50 dBc max. |
Power Supply
| Input Power | 12-24 VDC via IFL |
| Band Switched - Band 1 | 12-15 VDC & no Tone |
| Band Switched - Band 2 | 16-24 VDC & no Tone |
| Band Switched - Band 3 | 16-24 VDC & 22KHz Tone |
| Band Switched - Band 4 | 12-15 VDC & 22KHz Tone |
| Power Consumption | 5 W |
Interfaces
| Input Interface | WR42 (Grooved) |
| Input VSWR | 2.0:1 |
| Output Interface | N-type female |
| Output VSWR | 2.0:1 |
Physical Parameters
| Size (inches) | 4.41*2.36*1.04 120*60*26 mm |
| Weight (lbs) | 0.66 0.3 kg |
| Operating Temperature | -40 to +60 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-10,000 feet ASL |
| Water-proof Class | IP65 |
5 customers are viewing this product
Details
About the LNB
The RGLN-ATCEXN-C0 is a RevGo low noise block downconverter (LNB) operating in Ka-Band, with an input range of 17.70 - 20.20 GHz. Full electrical, mechanical and environmental specifications are listed below.
Key Specifications
| Band | Ka-Band |
| Input Frequency | Ka-Band: 17.70 - 20.20 GHz |
| Input Frequency | 17.70-20.20 GHz (Tri-band) |
| Reference type | External ref. |
RF Specifications
| Input Frequency - LO: 16.75 GHz | Band 1: 17.70-18.70 GHz |
| Input Frequency - LO: 17.50 GHz | Band 2: 18.45-19.45 GHz |
| Input Frequency - LO: 18.25 GHz | Band 3: 19.20-20.20 GHz |
| Output Frequency | 950-1950 MHz |
| Noise Figure | 1.5 dB (RF at band 1, 2, 3) 1.6 dB (RF at band 4) |
| LO Stability | External reference |
| LO Leakage Level - IF connector | -40 dBm max. |
| LO Leakage Level - RF connector | -60 dBm max. |
| Conversion Gain | 55 to 65 dB |
| Output P-1dB | 10 dBm min. 15 dBm typ. |
| Phase Noise | -75 dBc/Hz @1 KHz -85 dBc/Hz @10 KHz -95 dBc/Hz @100 KHz |
| Image Rejection | 40 dB @16.75 GHz, 20 dB @19.25 GHz |
| Output Spurious | -50 dBc max. |
Power Supply
| Input Power | 12-24 VDC via IFL |
| Band Switched - Band 1 | 12-15 VDC & no Tone |
| Band Switched - Band 2 | 16-24 VDC & no Tone |
| Band Switched - Band 3 | 16-24 VDC & 22KHz Tone |
| Band Switched - Band 4 | 12-15 VDC & 22KHz Tone |
| Power Consumption | 5 W |
Interfaces
| Input Interface | WR42 (Grooved) |
| Input VSWR | 2.0:1 |
| Output Interface | N-type female |
| Output VSWR | 2.0:1 |
Physical Parameters
| Size (inches) | 4.41*2.36*1.04 120*60*26 mm |
| Weight (lbs) | 0.66 0.3 kg |
| Operating Temperature | -40 to +60 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-10,000 feet ASL |
| Water-proof Class | IP65 |
Download
| Download Name | |
| RevGo Low Noise Block (LNB) Ka-Band FB Datasheet | |
