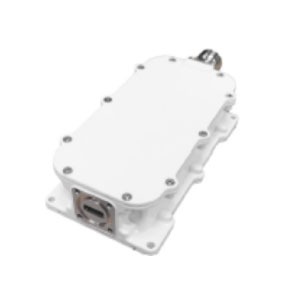

RevGo RGLN-A3B1F-A0 Low Noise Block (LNB) Ka-Band 19.2 - 20.2 GHz
Product Code:
RGLN-A3B1F-A0
Condition:
New
Weight:
0.42 KGS
Width:
13.30
(cm)
Height:
3.00
(cm)
Depth:
6.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
About the LNB
The RGLN-A3B1F-A0 is a RevGo low noise block downconverter (LNB) operating in Ka-Band, with an input range of 19.20 - 20.20 GHz, an output range of 1000 - 2000 MHz and an F-type IF interface. Full electrical, mechanical and environmental specifications are listed below.
Key Specifications
| Band | Ka-Band |
| Input Frequency | Ka-Band: 19.20 - 20.20 GHz |
| Output Frequency | L-Band: 1000 - 2000 MHz |
| IF Connector | F-Connector |
| Ref Signal Stability | +/- 1 ppm |
| Pwr/Output Connector | F-Type (75 Ohm) |
RF Specifications
| IF Frequency - Single-band | 19.2-20.2 GHz |
| Output Frequency | 1000-2000 MHz |
| Noise Figure | 1.5 dB (RF at band 1, 2, 3, 6) |
| LO Stability | +/- 1 ppm |
| LO Leakage Level - IF connector | -40 dBm maximum |
| LO Leakage Level - RF connector | -60 dBm maximum |
| Conversion Gain | 55 to 65 dB |
| Output P-1 | 20 dBm typical |
| Phase Noise | -75 dBc/Hz max @ 1 KHz -85 dBc/Hz max @ 10 KHz -95 dBc/Hz max @ 100 KHz |
| Image Rejection | 40 dBc minimum |
| Output Spurious | -55 dBc maximum |
Power Supply
| Input Power | via IFL connector |
| Input Power - Single-band | 12-24 VDC |
| Power Consumption | 5W |
Interfaces
| Input Connector | WR42 (Grooved) |
| IF Input VSWR | 2.5:1 |
| Pwr/Output Connector | F-Type Female |
| Output VSWR | 2.0:1 |
Physical Parameters
| Size (inches) | 5.24*2.36*1.18 133*60*30 mm |
| Weight (lbs) | 0.93 420 g |
| Operating Temperature | -40 to +60 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-10,000 feet ASL |
| Water-proof Class | IP 65 |
5 customers are viewing this product
Details
About the LNB
The RGLN-A3B1F-A0 is a RevGo low noise block downconverter (LNB) operating in Ka-Band, with an input range of 19.20 - 20.20 GHz, an output range of 1000 - 2000 MHz and an F-type IF interface. Full electrical, mechanical and environmental specifications are listed below.
Key Specifications
| Band | Ka-Band |
| Input Frequency | Ka-Band: 19.20 - 20.20 GHz |
| Output Frequency | L-Band: 1000 - 2000 MHz |
| IF Connector | F-Connector |
| Ref Signal Stability | +/- 1 ppm |
| Pwr/Output Connector | F-Type (75 Ohm) |
RF Specifications
| IF Frequency - Single-band | 19.2-20.2 GHz |
| Output Frequency | 1000-2000 MHz |
| Noise Figure | 1.5 dB (RF at band 1, 2, 3, 6) |
| LO Stability | +/- 1 ppm |
| LO Leakage Level - IF connector | -40 dBm maximum |
| LO Leakage Level - RF connector | -60 dBm maximum |
| Conversion Gain | 55 to 65 dB |
| Output P-1 | 20 dBm typical |
| Phase Noise | -75 dBc/Hz max @ 1 KHz -85 dBc/Hz max @ 10 KHz -95 dBc/Hz max @ 100 KHz |
| Image Rejection | 40 dBc minimum |
| Output Spurious | -55 dBc maximum |
Power Supply
| Input Power | via IFL connector |
| Input Power - Single-band | 12-24 VDC |
| Power Consumption | 5W |
Interfaces
| Input Connector | WR42 (Grooved) |
| IF Input VSWR | 2.5:1 |
| Pwr/Output Connector | F-Type Female |
| Output VSWR | 2.0:1 |
Physical Parameters
| Size (inches) | 5.24*2.36*1.18 133*60*30 mm |
| Weight (lbs) | 0.93 420 g |
| Operating Temperature | -40 to +60 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-10,000 feet ASL |
| Water-proof Class | IP 65 |
Download
| Download Name | |
| Low Noise Block (LNB) Ka-Band Dual-Band datasheet | |
