Zoom the image with the mouse
Radeus Labs

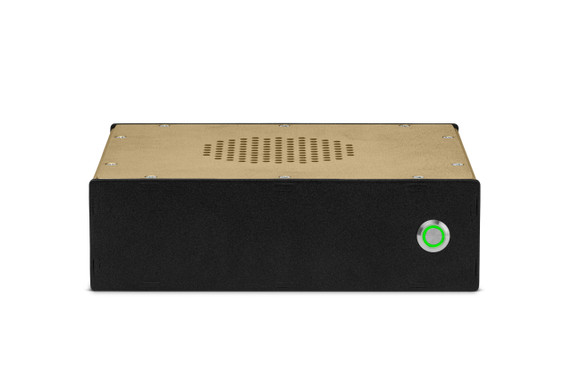

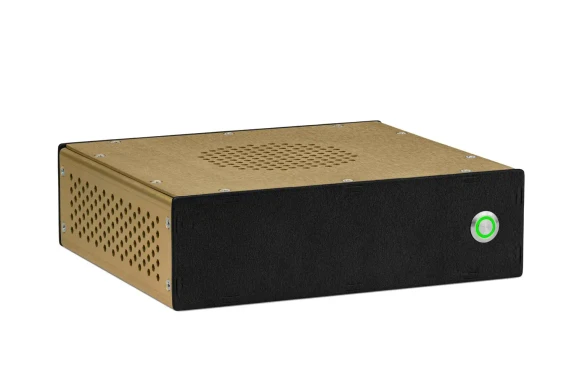

Radeus Labs RLDT-TC-G1-2 4 Monitor Thin Client
Product Code:
RLDT-TC-G1-2
Condition:
New
Weight:
1.36 KGS
Width:
21.29
(cm)
Height:
6.22
(cm)
Depth:
18.29
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The Radeus Labs RLDT-TC-G1-2 rugged thin client is purpose-built for use with the most popular hypervisor systems — VMWare, Hyper-V, and others. Its small form factor permits multiple mounting options. Flexibility and simplicity in management allows RDP or multiple monitors over PCoIP.
Highlights
- Small, rugged
- up to four (4) displays

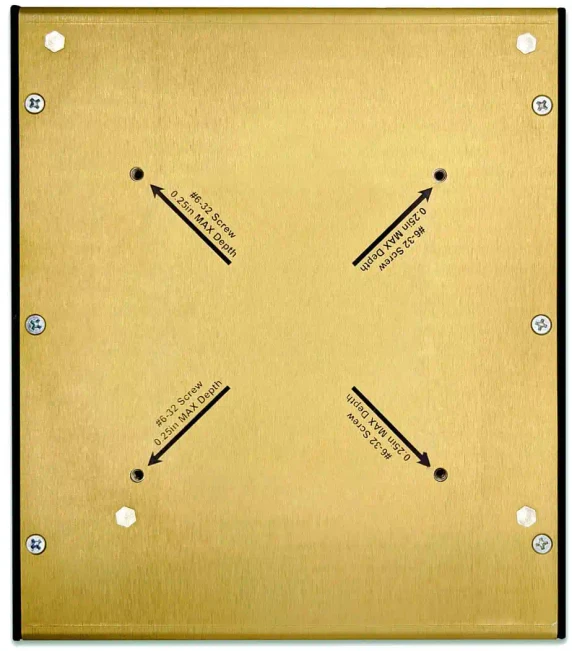

- VESA monitor mount, can be rack mounted
- Radeus RHEL-7 OS hardened via STIGs v2
- Standard lead time: 12 weeks
- Weight: 3 lbs. standalone hardware
| Key Features |
| AMD Ryzen Embedded V1807B with Radeon RX Vega 11 Graphics |
| 8 GB RAM DDR4 3200 |
| 250GB M.2 SSD |
| Internal 180W Power supply 88% efficiency |
| Qty 4 x DisplayPort with max. resolution 4096x2160 @ 60Hz each |
| Qty 2 x USB 3.0 |
| Qty 2 x USB 2.0 |
| Qty 2 x Gigabit Ethernet |
| Qty 1 x RS-232/422/485 (DB-9) |
| Qty 1 x RS-232 (DB-9) |
| Qty 1 x Mic-in |
| Qty 1 x Line-in |
| Qty 1 x Line-out |
| Environmental Testing |
| Supports MIL-STD-810G environments |
| Operating Temperature +0°C to +50°C |
| Storage Temperature -20 °C to +70°C |
| Operating Systems Options |
| Radeus OS (RHEL7 base) |
| Firefox |
| VMware Horizon Client |
| RDP Client |
| No Touch OS (Thin OS) |
| Windows 10 Pro |
| Linux (Ubuntu and others) |
| No Operating system (Blank SSD) |
| Specifications |
| Case Dimensions: |
| Height: 2.45” |
| Depth: 7.2” |
| Width: 8.38” |
| 0.1” Thick Front and Rear Panels |
| Case Material: 0.08” Aluminum |
| Front Finish: Wrinkle Black Powder Coat Text: White |
| Case Finish: Gold Anodized |
| Specifications |
| Case Dimensions: |
| Height: 2.45” |
| Depth: 7.2” |
| Width: 8.38” |
| 0.1” Thick Front and Rear Panels |
| Case Material: 0.08” Aluminum |
| Front Finish: Wrinkle Black Powder Coat Text: White |
| Case Finish: Gold Anodized |
| Other Features |
| Vandal-Resistant, Momentary, Illuminated Power (Green) Switch |
| Accessories |
| 10’ Power Cord |
| Optional Accessories |
| Monitor Mount (center) |
| Monitor Mount (offset) |
| RS-TC-01 |
| Dual Unit rack mount |
| 2 units in 1.5U |
| Product Information |
| Life Expectancy: 5 Years |
| Standard Lead Time: 12 Weeks |
| Weight: ~3 lbs standalone hardware |
5 customers are viewing this product
Details
The Radeus Labs RLDT-TC-G1-2 rugged thin client is purpose-built for use with the most popular hypervisor systems — VMWare, Hyper-V, and others. Its small form factor permits multiple mounting options. Flexibility and simplicity in management allows RDP or multiple monitors over PCoIP.
Highlights
- Small, rugged
- up to four (4) displays
- VESA monitor mount, can be rack mounted
- Radeus RHEL-7 OS hardened via STIGs v2
- Standard lead time: 12 weeks
- Weight: 3 lbs. standalone hardware
| Key Features |
| AMD Ryzen Embedded V1807B with Radeon RX Vega 11 Graphics |
| 8 GB RAM DDR4 3200 |
| 250GB M.2 SSD |
| Internal 180W Power supply 88% efficiency |
| Qty 4 x DisplayPort with max. resolution 4096x2160 @ 60Hz each |
| Qty 2 x USB 3.0 |
| Qty 2 x USB 2.0 |
| Qty 2 x Gigabit Ethernet |
| Qty 1 x RS-232/422/485 (DB-9) |
| Qty 1 x RS-232 (DB-9) |
| Qty 1 x Mic-in |
| Qty 1 x Line-in |
| Qty 1 x Line-out |
| Environmental Testing |
| Supports MIL-STD-810G environments |
| Operating Temperature +0°C to +50°C |
| Storage Temperature -20 °C to +70°C |
| Operating Systems Options |
| Radeus OS (RHEL7 base) |
| Firefox |
| VMware Horizon Client |
| RDP Client |
| No Touch OS (Thin OS) |
| Windows 10 Pro |
| Linux (Ubuntu and others) |
| No Operating system (Blank SSD) |
| Specifications |
| Case Dimensions: |
| Height: 2.45” |
| Depth: 7.2” |
| Width: 8.38” |
| 0.1” Thick Front and Rear Panels |
| Case Material: 0.08” Aluminum |
| Front Finish: Wrinkle Black Powder Coat Text: White |
| Case Finish: Gold Anodized |
| Specifications |
| Case Dimensions: |
| Height: 2.45” |
| Depth: 7.2” |
| Width: 8.38” |
| 0.1” Thick Front and Rear Panels |
| Case Material: 0.08” Aluminum |
| Front Finish: Wrinkle Black Powder Coat Text: White |
| Case Finish: Gold Anodized |
| Other Features |
| Vandal-Resistant, Momentary, Illuminated Power (Green) Switch |
| Accessories |
| 10’ Power Cord |
| Optional Accessories |
| Monitor Mount (center) |
| Monitor Mount (offset) |
| RS-TC-01 |
| Dual Unit rack mount |
| 2 units in 1.5U |
| Product Information |
| Life Expectancy: 5 Years |
| Standard Lead Time: 12 Weeks |
| Weight: ~3 lbs standalone hardware |
Download
| Download Name | |
| Radeus Labs RLDT-TC-G1-2 Datasheet | |
