PPC Belden

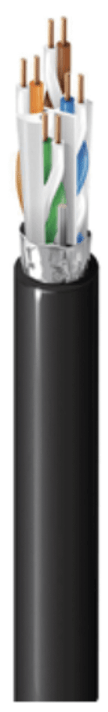

PPC Belden Perfect Link PCAUVRM CAT6A Cable
Product Code:
PCAUVRM
Condition:
New
Weight:
1.00 KGS
$1.00
CAT6A (500MHz), U/UTP-Unshielded, Riser-CMR, CMX outdoor, premises horizontal cable
PPC Category cable was developed in partnership with Belden, ensuring the highest quality cable with performance beyond system specifications. For more than 100 years, customers around the world have relied on Belden cable to power their applications. Partnering with PPC and Belden ensures that you are installing the highest quality Category cable in your network. PPC’s Perfect Link cables offer:
- Improved Signal Strength
- Improved Crosstalk Performance
- Enhanced Environmental Protection
- Easier Termination
- Exceeds ANSI/TIA/EIA-568-C.2 requirements
| Performance Specifications | |
| Specification | Value |
| Conductors: 4 Pairs | AWG: 23 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PO-Polyolefin |
| Jacket | PVC |
| Nominal Diameter | 0.260in (6.6mm) |
| Suitability | Riser, Indoor |
| Storage Temperature Range | -4°F To 167°F (-20°C To 75°C) |
| Installation Temperature Range | 32°F To 122°F (0°C To 50°C) |
| Operating Temperature Range | -4°F To 167°F (-20°C To 75°C) |
| Bulk Cable Weight | 37 lbs/1000 ft |
| Max Recommended Pulling Tension | 25 lbs |
| Min. Bend Radius/Minor Axis | 1.25 in (31.75 mm) |
| Min. Bend/Installation | 3.0 in (76.2 mm) |
| Electrical Properties | |
| Specification | Value |
| Capacitance (pF/ft) | 17 |
| Delay (ns/100 m) | 537 @ 100 MHz |
| DCR Unbalance @ 20°C | 3% |
| Nominal Velocity of Propogation VP (%) | 70 |
| DCR @ 20°C (Ohm/100m) | 7.3 |
| NEC/(UL) Specification | Article 800, CMR;CMR-LP (0.5A);CL3R-LP (0.5A) |
| Standards | Category 6A - TIA 568.2-D |
5 customers are viewing this product
Details
CAT6A (500MHz), U/UTP-Unshielded, Riser-CMR, CMX outdoor, premises horizontal cable
PPC Category cable was developed in partnership with Belden, ensuring the highest quality cable with performance beyond system specifications. For more than 100 years, customers around the world have relied on Belden cable to power their applications. Partnering with PPC and Belden ensures that you are installing the highest quality Category cable in your network. PPC’s Perfect Link cables offer:
- Improved Signal Strength
- Improved Crosstalk Performance
- Enhanced Environmental Protection
- Easier Termination
- Exceeds ANSI/TIA/EIA-568-C.2 requirements
| Performance Specifications | |
| Specification | Value |
| Conductors: 4 Pairs | AWG: 23 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PO-Polyolefin |
| Jacket | PVC |
| Nominal Diameter | 0.260in (6.6mm) |
| Suitability | Riser, Indoor |
| Storage Temperature Range | -4°F To 167°F (-20°C To 75°C) |
| Installation Temperature Range | 32°F To 122°F (0°C To 50°C) |
| Operating Temperature Range | -4°F To 167°F (-20°C To 75°C) |
| Bulk Cable Weight | 37 lbs/1000 ft |
| Max Recommended Pulling Tension | 25 lbs |
| Min. Bend Radius/Minor Axis | 1.25 in (31.75 mm) |
| Min. Bend/Installation | 3.0 in (76.2 mm) |
| Electrical Properties | |
| Specification | Value |
| Capacitance (pF/ft) | 17 |
| Delay (ns/100 m) | 537 @ 100 MHz |
| DCR Unbalance @ 20°C | 3% |
| Nominal Velocity of Propogation VP (%) | 70 |
| DCR @ 20°C (Ohm/100m) | 7.3 |
| NEC/(UL) Specification | Article 800, CMR;CMR-LP (0.5A);CL3R-LP (0.5A) |
| Standards | Category 6A - TIA 568.2-D |
