Poynting

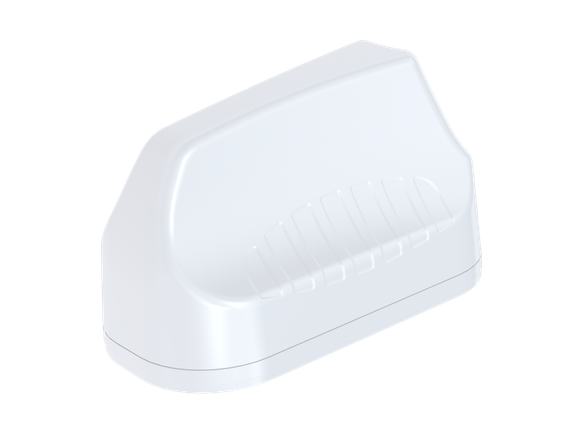

Poynting MIMO-3-13 3-in-1 Transportation & Automotive Antenna 410 - 3800 MHz; 2X2 LTE (MIMO), 5.8dBi; GPS/GLONASS, 21dBi
Product Code:
A-MIMO-0003-V2-13
Condition:
New
Weight:
1.31 KGS
Width:
26.50
(cm)
Height:
21.10
(cm)
Depth:
20.40
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The MIMO-3-12 is a 2-in-1 high-performance multi-frequency antenna housed within a single enclosure. It integrates two cellular MIMO antennas for 2G, 3G, and 4G applications, covering the contemporary 617 MHz to 2700 MHz bands, as well as emerging LTE and 5G spectrum, including 450 MHz and 3.5 GHz CBRS bands. This range is increasingly adopted by international cellular operators for LTE services.
The ultra-wideband design enables operation across multiple operators and technologies, with support for future cellular applications up to 3.8 GHz for 5G deployments. The antenna is engineered to exceed the performance of many competing solutions through careful attention to RF design and optimisation.
The radiation patterns of all elements provide a balanced combination of omnidirectionality, pattern diversity, and effective radiation at the desired elevation angles. This makes the antenna particularly suitable for transportation and marine environments, where such performance characteristics are critical.
Primary applications include commercial and industrial vehicles, marine systems, M2M deployments, and IoT solutions using a broad range of radio technologies, while maintaining future-ready performance across a wide frequency spectrum.
Features
- Ultra-wideband from 410 to 470 MHz, 617 to 2700 MHz and 3400 to 3800 MHz bands
- Cleverly designed decorrelated antennas give superior MIMO performance in the cellular bands
- Careful mechanical design provides ruggedness, corrosion, water and dust resistance (IP69K)
- Ground plane independent: MIMO-3 is designed with an internal ground plane, making the antenna suitable for implementation on all surface types
| Antenna Overview | ||
| Ports | 1 & 2 | 3 |
| SISO / MIMO | 2 x 2 MIMO | N/A |
| Frequency Bands | 410 - 3800 MHz | 1575.42 MHz / 1600 MHz |
| Polarisation | Linear (Vertical) | Linear (Vertical) |
| Peak Gain | 5.8 dBi | 21 dBi |
| Coax Cable Type | Twin HDF 195 | RTK-031 |
| Coax Cable Length | 2m | 2m |
| Connector Type | SMA (M) | SMA (M) |
5 customers are viewing this product
Details
The MIMO-3-12 is a 2-in-1 high-performance multi-frequency antenna housed within a single enclosure. It integrates two cellular MIMO antennas for 2G, 3G, and 4G applications, covering the contemporary 617 MHz to 2700 MHz bands, as well as emerging LTE and 5G spectrum, including 450 MHz and 3.5 GHz CBRS bands. This range is increasingly adopted by international cellular operators for LTE services.
The ultra-wideband design enables operation across multiple operators and technologies, with support for future cellular applications up to 3.8 GHz for 5G deployments. The antenna is engineered to exceed the performance of many competing solutions through careful attention to RF design and optimisation.
The radiation patterns of all elements provide a balanced combination of omnidirectionality, pattern diversity, and effective radiation at the desired elevation angles. This makes the antenna particularly suitable for transportation and marine environments, where such performance characteristics are critical.
Primary applications include commercial and industrial vehicles, marine systems, M2M deployments, and IoT solutions using a broad range of radio technologies, while maintaining future-ready performance across a wide frequency spectrum.
Features
- Ultra-wideband from 410 to 470 MHz, 617 to 2700 MHz and 3400 to 3800 MHz bands
- Cleverly designed decorrelated antennas give superior MIMO performance in the cellular bands
- Careful mechanical design provides ruggedness, corrosion, water and dust resistance (IP69K)
- Ground plane independent: MIMO-3 is designed with an internal ground plane, making the antenna suitable for implementation on all surface types
| Antenna Overview | ||
| Ports | 1 & 2 | 3 |
| SISO / MIMO | 2 x 2 MIMO | N/A |
| Frequency Bands | 410 - 3800 MHz | 1575.42 MHz / 1600 MHz |
| Polarisation | Linear (Vertical) | Linear (Vertical) |
| Peak Gain | 5.8 dBi | 21 dBi |
| Coax Cable Type | Twin HDF 195 | RTK-031 |
| Coax Cable Length | 2m | 2m |
| Connector Type | SMA (M) | SMA (M) |
