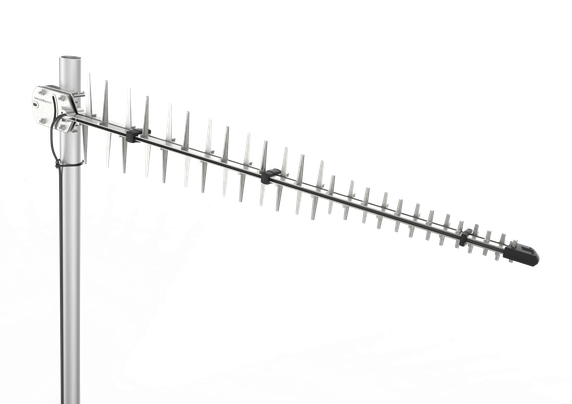

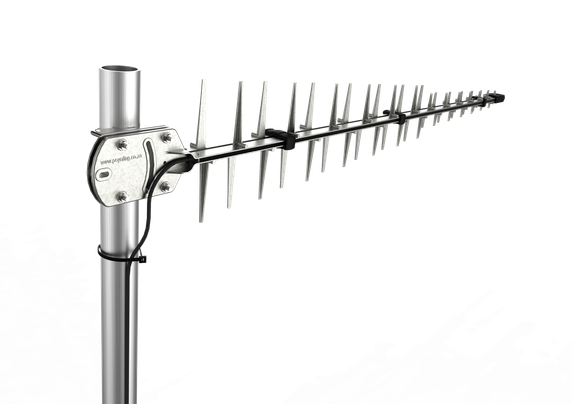

Poynting LPDA-92 Wideband Log-Periodic Dipole Array Antenna, 698 - 3800 MHz, 11dBi
Product Code:
A-LPDA-0092-X
Condition:
New
Weight:
2.02 KGS
Width:
112.00
(cm)
Height:
21.00
(cm)
Depth:
6.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
This high-gain, wideband, directional antenna supports all international cellular, mobile, and wireless data bands, including GSM 900, GSM 1800, UMTS, and LTE bands. It also covers extended cellular and WiMAX bands such as the European and U.S. “Digital Dividend” spectrum, as well as 2.3–2.7 GHz licensed and unlicensed data bands. Its configuration is suitable for a wide range of wireless communication systems.
This antenna is notable for its combination of ultra-wideband operation and consistently high-gain performance. It has been successfully deployed in extreme weather environments across Africa and Europe with near-zero failure rates, making it a preferred solution in areas where operators experience significant signal challenges.
It is suitable for any application using GSM-based networks, including LTE, HSPA, 3G, EDGE, and GPRS.
Features
- High gain directional antenna
- Easy alignment with main beam around 50° wide
- Broadband covering multiple operational frequencies
- Pole mountable
- Lightweight
- Water and dust resistant
- Tremendous improvement in reliability of wireless data
- Four-year track record in all climate conditions from snow to desert to tropical
| Antenna Derivatives | ||||
| Product Order Code (SKU) | A-LPDA-0092 | A-LPDA-0092-04 | A-LPDA-0092-LTE | A-LPDA-0092-30-LTE |
| Ports | 1 | 1 | 2 | 2 |
| Coax Cable Type | HDF 195 | HDF 195 | HDF 195 | HDF 195 |
| Coax Cable Length | 7m | 0.3m | 7m | 7m |
| Connector Type | SMA (M) | N-Type (M) | SMA (M) | SMA (M) |
| Included Mounting Bracket | N/A | N/A | A-BRKT-033 | A-BRKT-030 |
| EAN | 6009693810556 | 6009710924655 | 6009710921166 | 6009710921180 |
5 customers are viewing this product
Details
This high-gain, wideband, directional antenna supports all international cellular, mobile, and wireless data bands, including GSM 900, GSM 1800, UMTS, and LTE bands. It also covers extended cellular and WiMAX bands such as the European and U.S. “Digital Dividend” spectrum, as well as 2.3–2.7 GHz licensed and unlicensed data bands. Its configuration is suitable for a wide range of wireless communication systems.
This antenna is notable for its combination of ultra-wideband operation and consistently high-gain performance. It has been successfully deployed in extreme weather environments across Africa and Europe with near-zero failure rates, making it a preferred solution in areas where operators experience significant signal challenges.
It is suitable for any application using GSM-based networks, including LTE, HSPA, 3G, EDGE, and GPRS.
Features
- High gain directional antenna
- Easy alignment with main beam around 50° wide
- Broadband covering multiple operational frequencies
- Pole mountable
- Lightweight
- Water and dust resistant
- Tremendous improvement in reliability of wireless data
- Four-year track record in all climate conditions from snow to desert to tropical
| Antenna Derivatives | ||||
| Product Order Code (SKU) | A-LPDA-0092 | A-LPDA-0092-04 | A-LPDA-0092-LTE | A-LPDA-0092-30-LTE |
| Ports | 1 | 1 | 2 | 2 |
| Coax Cable Type | HDF 195 | HDF 195 | HDF 195 | HDF 195 |
| Coax Cable Length | 7m | 0.3m | 7m | 7m |
| Connector Type | SMA (M) | N-Type (M) | SMA (M) | SMA (M) |
| Included Mounting Bracket | N/A | N/A | A-BRKT-033 | A-BRKT-030 |
| EAN | 6009693810556 | 6009710924655 | 6009710921166 | 6009710921180 |
Download
| Download Name | |
| Poynting LPDA-92 Datasheet | |
| Poynting LPDA-92 User Guide | |
