Poynting

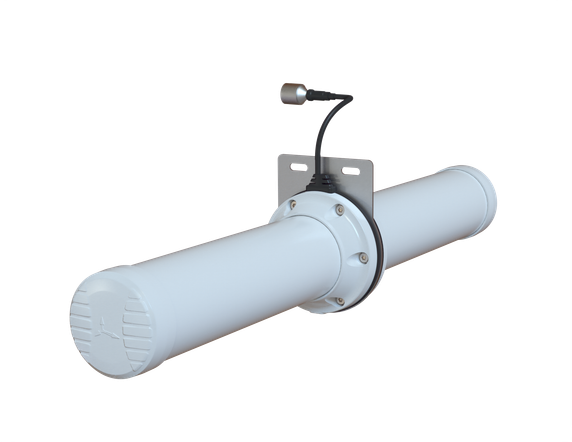

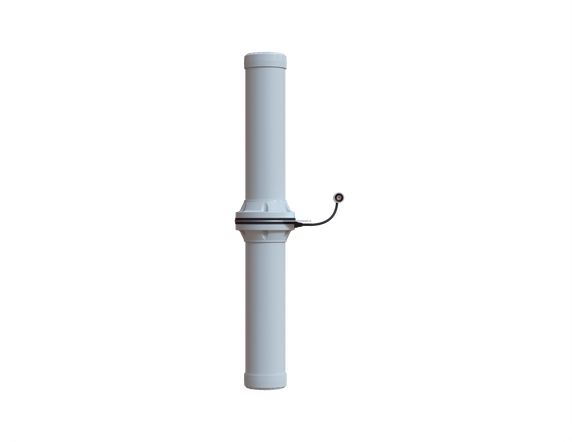

Poynting HELI-17 Circular Polarised, Bi-Directional Mine/Tunnel Antenna, Wi-Fi, 2400 - 2500 MHz, 9dBic
Product Code:
A-HELI-0017-V3-01
Condition:
New
Weight:
1.44 KGS
Width:
66.00
(cm)
Height:
14.00
(cm)
Depth:
16.50
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The HELI-17 forms part of a series of Mini-HELI antennas. These antennas are only mini in size relative to their larger counterparts, the HELI-3, HELI-4, and HELI-8, but offer medium to high gain. This makes them ideal for mining tunnels where IoT/M2M connectivity is deployed, and they can also be used for coverage into stopes.
The HELI-17 is a set of 2.4 GHz Wi-Fi antennas, radiating in both directions (bi-directional), which makes them suitable for 2.4 GHz coverage in mining and other tunnel environments. These antennas are typically used for IoT deployments within tunnels to provide telemetry and support mine automation.
These antennas are available in both Left-Hand Circular (LHC) and Right-Hand Circular (RHC) polarised antenna elements. This enables optimal decorrelation within a MIMO deployment when used with the BRKT-45, resulting in improved performance through polarisation diversity and spatial diversity. This combination enhances MIMO performance and RF reliability in mining tunnel environments.
The Wi-Fi signal propagates around tunnel bends in non-line-of-sight scenarios and provides improved resilience against common signal-obstructing equipment such as trains and drilling machinery that may partially or fully obscure the tunnel path.
Features
- Single port 2.4 GHz Wi-Fi antenna
- This antenna is especially designed for mining and other types of tunnels where rapid extension of network is required
- Bi-directional – radiates in both directions in a tunnel
- Left & Right-hand Circular Polarised available (for MIMO)
- Intrinsically safe version available on request
| Antenna Overview | |
| Ports | 1 |
| Frequency Bands | 2400 – 2500 MHz |
| Peak Gain | 9 dBic |
| Coax Cable Type | RG-141 |
| Coax Cable Length | 600mm |
| Connector Type | N-Type (M) |
5 customers are viewing this product
Details
The HELI-17 forms part of a series of Mini-HELI antennas. These antennas are only mini in size relative to their larger counterparts, the HELI-3, HELI-4, and HELI-8, but offer medium to high gain. This makes them ideal for mining tunnels where IoT/M2M connectivity is deployed, and they can also be used for coverage into stopes.
The HELI-17 is a set of 2.4 GHz Wi-Fi antennas, radiating in both directions (bi-directional), which makes them suitable for 2.4 GHz coverage in mining and other tunnel environments. These antennas are typically used for IoT deployments within tunnels to provide telemetry and support mine automation.
These antennas are available in both Left-Hand Circular (LHC) and Right-Hand Circular (RHC) polarised antenna elements. This enables optimal decorrelation within a MIMO deployment when used with the BRKT-45, resulting in improved performance through polarisation diversity and spatial diversity. This combination enhances MIMO performance and RF reliability in mining tunnel environments.
The Wi-Fi signal propagates around tunnel bends in non-line-of-sight scenarios and provides improved resilience against common signal-obstructing equipment such as trains and drilling machinery that may partially or fully obscure the tunnel path.
Features
- Single port 2.4 GHz Wi-Fi antenna
- This antenna is especially designed for mining and other types of tunnels where rapid extension of network is required
- Bi-directional – radiates in both directions in a tunnel
- Left & Right-hand Circular Polarised available (for MIMO)
- Intrinsically safe version available on request
| Antenna Overview | |
| Ports | 1 |
| Frequency Bands | 2400 – 2500 MHz |
| Peak Gain | 9 dBic |
| Coax Cable Type | RG-141 |
| Coax Cable Length | 600mm |
| Connector Type | N-Type (M) |
Download
| Download Name | |
| Poynting HELI-17 Datasheet | |
