PEPLINK

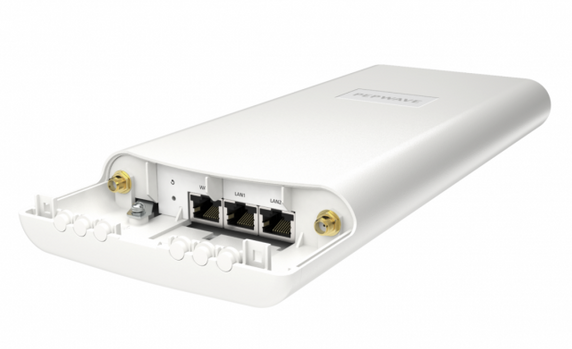

Pepwave DCS-GN-IP55 Device Connector

No reviews yet
Product Code: DCS-GN-IP55
Condition: New
Availability: YES
Weight: 0.60 KGS
Width: 12.40 (cm)
Height: 30.00 (cm)
Depth: 4.45 (cm)
$399.00

Device Connector IP55

Vendor Neutral Long Range Wireless Bridge

The Device Connector IP55 enables Ethernet devices to access wireless networks with unbreakable reliability. Using our signal bonding technology, Ethernet devices can connect using the combined bandwidth of 2.4GHz and 5GHz frequency Wi-Fi in a single LAN connection. The Device Connector is compatible with any access point, so you can just drop it in and go – no network reconfiguration or device upgrades are needed.

One Access Point, Multiple Devices

Sample Topology

Consistent Wi-Fi Coverage & Reliable Connectivity

Plug-and-Play

Easily extend Wi-Fi coverage in minutes with Pepwave’s Device Connector IP55. The Device Connector gets your devices talking over a large area without wires or configuration headaches. And because it works transparently at Layer 2, the Device Connector is compatible with any access point. is compatible with any access point.

Merge 2.4GHz & 5GHz Signals

Normally, Wi-Fi devices will force you to choose between 5GHz or 2.4GHz. With the Device Connector IP55, you can have both. Simply connect your device to the Ethernet port and the device connector will combine 5GHz and 2HGz into a single reliable connection.

Advanced Roaming

Advanced Roaming lets your Device Connector IP55 seamlessly hop from AP to AP in a matter of seconds. Whether you’re commanding an emergency situation, coordinating a construction project, or keeping your warehouse stocked, Advanced Roaming keeps everyone communicating at all times.

Compact Super-Duty IP55 Enclosure





The Device Connector IP55 has a waterproof IP55 enclosure that stands up to dust, vibration, and inclement weather.

Product Overview



Wi-Fi Interface

802.11ac wave 2/ac/a/b/g/n Wi-Fi WAN and AP



2x2 MIMO



Ethernet Port

3 x GE



Data Rate

2x2 MIMO,



2.4GHz: 300Mbps



5GHz: 866Mbps




Transmit Power

2412 - 2472 MHz: 26dBm



5180 - 5825 MHz: 26dBm



Maximum Concurrent Users

60



Enclosure

IP55 Outdoor Enclosure



Dimensions

11.8 x 4.9 x 1.2 inches |



300 x 124 x 31 mm



Weight

0.96 pounds |



435 grams




PoE Input

802.3at



Power Input

802.3at PoE+ (56V Pepwave Passive PoE Input is Needed for full 1x 802.3at PoE+ LAN Output#)



Power Consumption

22W (max.)



Operating Temperature

-40° – 131°F |



-40° – 55°C



Humidity

15% – 95% (non-condensing)



Certifications

FCC, CE, RoHS



Warranty

1-Year Limited Warranty









Deep Dive



Network

Bridge Mode



Router (NAT) Mode



Support for PPPoE, Static IP, DHCP



Radio

Multiple SSID



Transmit Power Adjustment



Client Authentication

EAP-TTLS/EAP-PEAP/EAP-TLS



CHAP/MSCHAP/MSCHAPV2/PAP



EAP Outer Authentication Identity



RADIUS Server with Certificate Authentication



AP Security

Open



WPA/WPA2-Personal



WPA/WPA2-Enterprise



Complete VPN Solution PepVPN

Site-to-Site VPN



256-bit AES Encryption



Pre-shared Key Authentication



Dynamic Routing



Device Management

Web Administrative Interface



InControl Cloud Management



SNMP v1, v2c and v3



Power Requirements

Universal Input



802.3at PoE+









Ordering Information




Product Code

 Product Name

Description

DCS-GN-IP55

    Device Connector IP55

       802.11ac/a/b/g/n 1166Mbps layer 2 client bridge in waterproof IP55 outdoor enclosure. Manageable by InControl cloud management.







Package Content




Device Connector IP55



2 x Plastic Cable Tie







Feature Add - On



Product Code

Description



ACW-510

Wall/pole mount with flexible ball joint for high-precision installation.



ACW-107

802.3af/at PoE Injector



ACW-109

x 56V/2.1A Power Supply and PoE License to Enable 802.3at PoE+ Output



SVL-750

1-Year EssentialCare for Device Connector IP55



SVL-628

2-Year EssentialCare for Device Connector IP55



ICS-012

1-Year InControl 2 Subscription



ICS-024

2-Year InControl 2 Subscription
