Norsat International Inc.

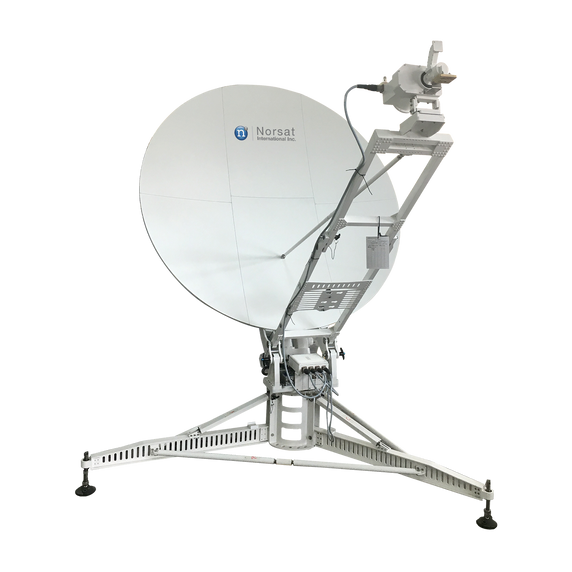

Norsat WFA180KU-EU WAYFARER 1.8m Ku-Band Auto Flyaway Antenna

No reviews yet
Product Code: WFA180KU-EU
Condition: New
Availability: YES
Weight: 300.00 KGS
Width: 660.00 (cm)
Height: 309.00 (cm)
Depth: 287.00 (cm)
Norsat WFA180KU-IEC WAYFARER 1.8m Ku-Band Auto Flyaway Antenna Data Sheet

Request a quote at Contact@orbitalconnect.com or +1.888.315.9545

The Norsat WAYFARER™ commercial 1.8m fly-away antenna is a fast deploying, easy-to-use, and compact SATCOM VSAT. This terminal is an excellent choice for commercial applications in various industries. fly-away antenna offers excellent rugged and reliable satellite links. Ideally suited for remote enterprise, energy, emergency, and media applications.


KEY SPECIFICATIONS
Product Family WAYFARER - Flyaway
Band Ku-Band
Reflector Diameter 1.8 m
Acquisition & Tracking Automatic
Transmit Frequency Ku-Band: 13.75 - 14.50 GHz
Receive Frequency Ku Band: 10.70 - 12.75 GHz

ANTENNA SPECIFICATIONS
Polarization Linear +/- 90°
Feed Configuration Centre-feed
Cross-Polarization Isolation ≥35 dB
Elevation Range 0 - 90°
Azimuth Range +/- 180°
Movement Overrides Manual (Azimuth/Elevation)
Standard BUC Options 8W, 20W, 40W, 80W
Standard LNB Options 1000H or HS1000

RF SPECIFICATIONS
Movement Platform Motorized Elevation over Azimuth
Tx Gain 46.3+ 20log(f/14.25)dBi
Rx Gain 45.3+ 20log(f/12.5)dBi

ELECTRICAL SPECIFICATIONS
Power Requirements DC24 10A

INTERFACE SPECIFICATIONS
Interfacility Link Cable 10 m

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational -30°C to +60°C (Antenna)
Weatherproofing IP65
Windspeed - Operational 40 km/h
Windspeed - Survival 65 km/h
Humidity 0 - 95% (20°C)

PHYSICAL SPECIFICATIONS
Number of cases 6 standard
Weight ≥300Kg (6 Fiberboard cases)
More details
5 customers are viewing this product
  • Norton Secured
  • TRUSTe Verified
  • Authorized.net
  • Accredited Business
  • Verified by Visa
  • Mastercard SecureCode

Write a Review

Norsat WFA180KU-EU WAYFARER 1.8m Ku-Band Auto Flyaway Antenna

Norsat International Inc.

Norsat WFA180KU-EU WAYFARER 1.8m Ku-Band Auto Flyaway Antenna



The Norsat WAYFARER™ commercial 1.8m fly-away antenna is a fast deploying, easy-to-use, and compact SATCOM VSAT. This terminal is an excellent choice for commercial applications in various industries. fly-away antenna offers excellent rugged and reliable satellite links. Ideally suited for remote enterprise, energy, emergency, and media applications.


KEY SPECIFICATIONS
Product Family WAYFARER - Flyaway
Band Ku-Band
Reflector Diameter 1.8 m
Acquisition & Tracking Automatic
Transmit Frequency Ku-Band: 13.75 - 14.50 GHz
Receive Frequency Ku Band: 10.70 - 12.75 GHz

ANTENNA SPECIFICATIONS
Polarization Linear +/- 90°
Feed Configuration Centre-feed
Cross-Polarization Isolation ≥35 dB
Elevation Range 0 - 90°
Azimuth Range +/- 180°
Movement Overrides Manual (Azimuth/Elevation)
Standard BUC Options 8W, 20W, 40W, 80W
Standard LNB Options 1000H or HS1000

RF SPECIFICATIONS
Movement Platform Motorized Elevation over Azimuth
Tx Gain 46.3+ 20log(f/14.25)dBi
Rx Gain 45.3+ 20log(f/12.5)dBi

ELECTRICAL SPECIFICATIONS
Power Requirements DC24 10A

INTERFACE SPECIFICATIONS
Interfacility Link Cable 10 m

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational -30°C to +60°C (Antenna)
Weatherproofing IP65
Windspeed - Operational 40 km/h
Windspeed - Survival 65 km/h
Humidity 0 - 95% (20°C)

PHYSICAL SPECIFICATIONS
Number of cases 6 standard
Weight ≥300Kg (6 Fiberboard cases)
