Norsat International Inc.

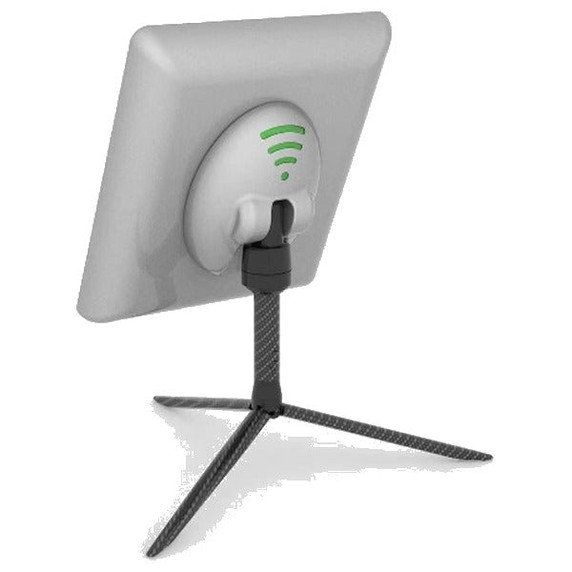

Norsat WFA035KUA WAYFARER 0.35m Ku-Band Auto Flyaway Antenna - Flat Panel
Product Code:
WFA035KUA
Condition:
New
Availability:
10 - 12 Weeks
Weight:
6.00 KGS
$44,000.00
| KEY SPECIFICATIONS | |
| Acquisition And Tracking | Automatic |
| Antenna Aperture | 0.35 m |
| Antenna Category | Flyaway |
| Band | Ku-Band |
| Number Of Onboard Los | Single-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Flat Panel Array (Micro-strip Gap Array) |
| Cross Polarization Isolation | ≥30 dB |
| Polarization | Linear |
| Sidelobe | First sidelobe ≤ -14 dB |
| RF SPECIFICATIONS | |
| Port Isolation Rx-Tx | ≥ 85 dB |
| Port Isolation Tx-Rx | ≥ 40 dB |
| Power Capacity | ≤ 150 W |
| Rx Frequency | 10.75 - 12.75 GHz |
| Rx Gain | ≥ 31.2dBi+20lg(f/12.50GHz)dBi |
| Rx VSWR | ≤ 1.8 |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Gain | ≥ 33.4dBi+20lg(f/14.25GHz)dBi |
| Tx VSWR | ≤ 1.8 |
| INTERFACE SPECIFICATIONS | |
| Positioning Mode | Beacon / DVB carrier |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 95% ±3% (20°C - 60°C) |
| IP Rating | IP65 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -50°C to +70°C |
| Windspeed Operational | ≤ 11 m/s |
| Windspeed Survival | ≤ 18 m/s |
| PHYSICAL SPECIFICATIONS | |
| Product Dimensions (Lxwxh) | 415 x 328 x 80 mm |
| Product Weight | ≤ 6 kg (excluding packaging and accessories) |
| RMS | 0.3 dB |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | N/A - No US Content |
| Ex Works | Hong Kong |
| Harmonized System Code | 8529109090 |
| Unit Package Dimensions | 640 x 570 x 420 mm |
| Unit Package Weight | 19 kg |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Acquisition And Tracking | Automatic |
| Antenna Aperture | 0.35 m |
| Antenna Category | Flyaway |
| Band | Ku-Band |
| Number Of Onboard Los | Single-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Flat Panel Array (Micro-strip Gap Array) |
| Cross Polarization Isolation | ≥30 dB |
| Polarization | Linear |
| Sidelobe | First sidelobe ≤ -14 dB |
| RF SPECIFICATIONS | |
| Port Isolation Rx-Tx | ≥ 85 dB |
| Port Isolation Tx-Rx | ≥ 40 dB |
| Power Capacity | ≤ 150 W |
| Rx Frequency | 10.75 - 12.75 GHz |
| Rx Gain | ≥ 31.2dBi+20lg(f/12.50GHz)dBi |
| Rx VSWR | ≤ 1.8 |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Gain | ≥ 33.4dBi+20lg(f/14.25GHz)dBi |
| Tx VSWR | ≤ 1.8 |
| INTERFACE SPECIFICATIONS | |
| Positioning Mode | Beacon / DVB carrier |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 95% ±3% (20°C - 60°C) |
| IP Rating | IP65 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -50°C to +70°C |
| Windspeed Operational | ≤ 11 m/s |
| Windspeed Survival | ≤ 18 m/s |
| PHYSICAL SPECIFICATIONS | |
| Product Dimensions (Lxwxh) | 415 x 328 x 80 mm |
| Product Weight | ≤ 6 kg (excluding packaging and accessories) |
| RMS | 0.3 dB |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | N/A - No US Content |
| Ex Works | Hong Kong |
| Harmonized System Code | 8529109090 |
| Unit Package Dimensions | 640 x 570 x 420 mm |
| Unit Package Weight | 19 kg |
| Warranty | 1 year |
