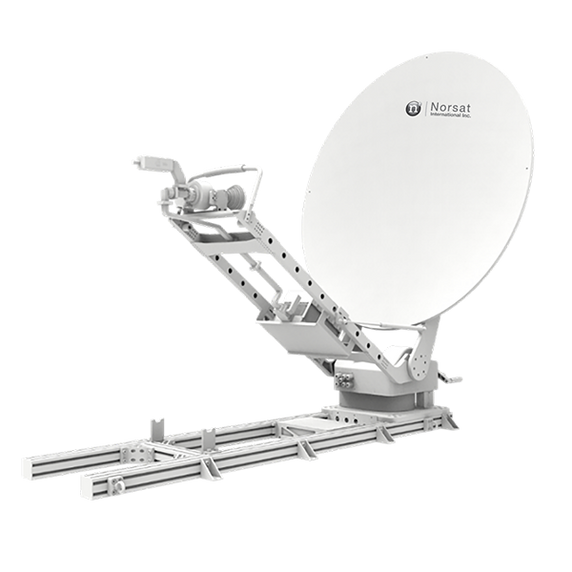

Norsat WAYFARER 1.8m Ku-Band Driveaway Antenna-EU

No reviews yet
Product Code: WDA180KU-EU
Availability: YES
Weight: 140.00 KGS
Width: 249.00 (cm)
Height: 180.00 (cm)
Depth: 49.00 (cm)

Request a quote at Contact@orbitalconnect.com or +1.888.315.9545

The WAYFARER 1.8m Driveaway is Norsat’s solution for reliable and easy-to-deploy mobile communications. The solid, low weight, and low height reflector mount deploys easily for fast and reliable satellite acquisition and tracking. Whether mounted on an emergency vehicular command center or a mobile broadcast van – count on Norsat’s WAYFARER™ drive-away terminals for drive-away broadband-level communications capability.



KEY SPECIFICATIONS
Product Family WAYFARER - Driveaway
Band Ku-Band
Reflector Diameter 1.8 m
Acquisition & Tracking Automatic
Transmit Frequency Ku-Band: 13.75 - 14.50 GHz
Receive Frequency Ku Band: 10.70 - 12.75 GHz

ANTENNA SPECIFICATIONS
Polarization Linear +/- 95 °
Feed Configuration Offset-feed
Cross-Polarization Isolation ≥35 dB
Elevation Range 10° - 90°
Azimuth Range +/- 200°
Movement Overrides Manual (Azimuth/Elevation)
Standard BUC Options 8W, 20W, 40W, 80W
Standard LNB Options 1000H or HS1000

RF SPECIFICATIONS
Movement Platform Motorized Elevation over Azimuth
Tx Gain 46.3+20log(f/14.25)dBi
Rx Gain 45.0+20log(f/12.5)dBi

ELECTRICAL SPECIFICATIONS
Power Requirements DC24 10A

INTERFACE SPECIFICATIONS
Interfacility Link Cable 10 m

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational -30°C to +55°C (Antenna)
Weatherproofing IP65
Windspeed - Operational 72 km/h
Windspeed - Survival 90 km/h
Humidity 5 - 95% condensing (Antenna / RF)

PHYSICAL SPECIFICATIONS
Number of cases n/a
Weight ≤140Kg (excl BUC)
