Norsat International Inc.

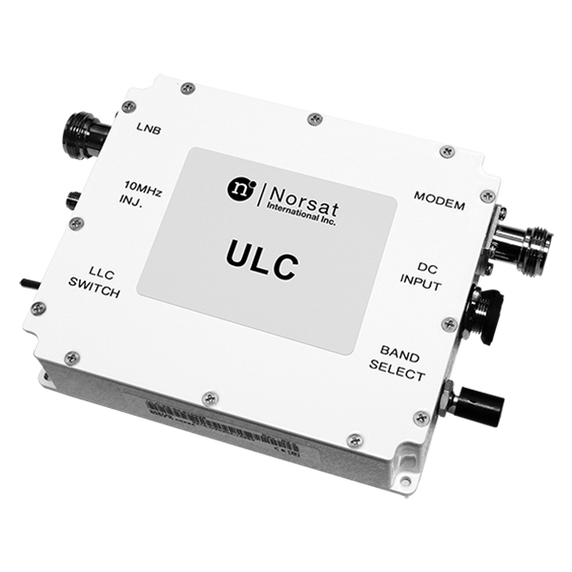

Norsat ULC-1-50S-CL-6 6-Band Universal LNB Controller
Product Code:
ULC-1-50S-CL-6
Condition:
New
Availability:
YES
Weight:
1.20 KGS
Width:
12.00
(cm)
Height:
3.00
(cm)
Depth:
10.00
(cm)
$3,600.00
Band Selection
| Band | Voltage | Tone |
| Band 1 | 13VDC | - |
| Band 2 | 13VDC | 22 kHz |
| Band 3 | 18VDC | - |
| Band 4 | 18VDC | 22 kHz |
| Band 5 | 22VDC | - |
| Band 6 | 22VDC | 22 kHz |
Input Voltage Range 23 ~ 25 VDC (Power Supply Included)
Tone Frequency 20 ~ 24 kHz
Tone Amplitude 0.55 – 0.90 Vpp
Required Current 500 mA max.
Operating Temperature -40ºC to +60ºC
| KEY SPECIFICATIONS | |
|---|---|
| control signal | Control Interface Cable & Line Length Compensation with Switch |
| input voltage | 23 ~ 25 VDC (Power Supply Included) |
| product family | ULC Series |

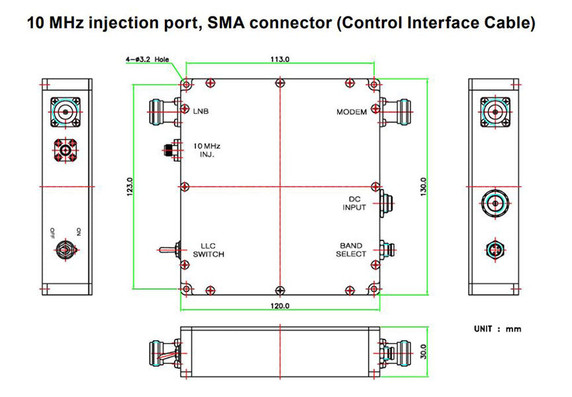

| reference signal | 10 MHz reference |
| required current | 500 mA max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| RF output connector | SMA-50 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -40 to +60°C |
5 customers are viewing this product
Details
Band Selection
| Band | Voltage | Tone |
| Band 1 | 13VDC | - |
| Band 2 | 13VDC | 22 kHz |
| Band 3 | 18VDC | - |
| Band 4 | 18VDC | 22 kHz |
| Band 5 | 22VDC | - |
| Band 6 | 22VDC | 22 kHz |
Input Voltage Range 23 ~ 25 VDC (Power Supply Included)
Tone Frequency 20 ~ 24 kHz
Tone Amplitude 0.55 – 0.90 Vpp
Required Current 500 mA max.
Operating Temperature -40ºC to +60ºC
| KEY SPECIFICATIONS | |
|---|---|
| control signal | Control Interface Cable & Line Length Compensation with Switch |
| input voltage | 23 ~ 25 VDC (Power Supply Included) |
| product family | ULC Series |
| reference signal | 10 MHz reference |
| required current | 500 mA max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| RF output connector | SMA-50 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -40 to +60°C |
Download
| Download Name | |
| Norsat 6-Band Universal LNB Controller Data Sheet | |
