Norsat International Inc.

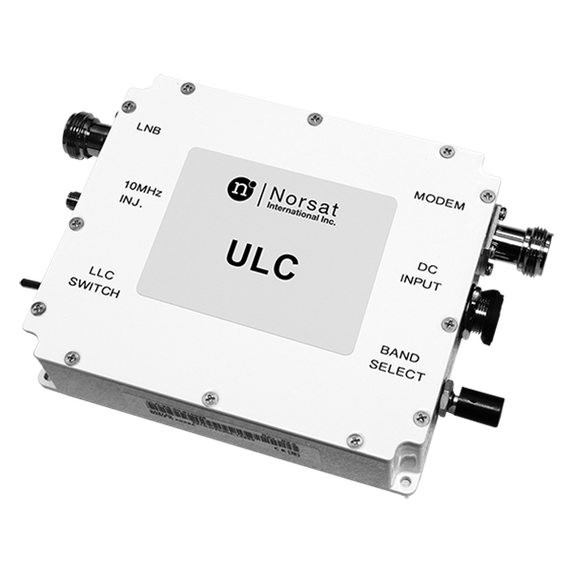

Norsat ULC-1-50S-6 6-Band Universal LNB Controller
- SKU:
- ULC-1-50S-6
- MPN:
- ULC-1-50S-6
- Condition:
- New
- Availability:
- YES
- Weight:
- 1.20 KGS
- Width:
- 12.00 (cm)
- Height:
- 3.00 (cm)
- Depth:
- 10.00 (cm)
Description
Band Selection
Band | Voltage | Tone |
Band 1 | 13VDC | - |
Band 2 | 13VDC | 22 kHz |
Band 3 | 18VDC | - |
Band 4 | 18VDC | 22 kHz |
Band 5 | 22VDC | - |
Band 6 | 22VDC | 22 kHz |
Input Voltage Range 23 ~ 25 VDC (Power Supply Included)
Tone Frequency 20 ~ 24 kHz
Tone Amplitude 0.55 – 0.90 Vpp
Required Current 500 mA max.
Operating Temperature -40ºC to +60ºC
KEY SPECIFICATIONS | |
---|---|
control signal | Switch Control & Line Length Compensation with Switch |
input voltage | 23 ~ 25 VDC (Power Supply Included) |
product family | ULC Series |

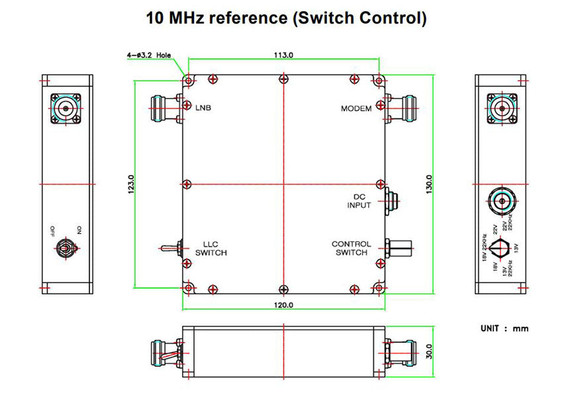

reference signal | 10 MHz reference |
required current | 500 mA max. |
INTERFACE SPECIFICATIONS | |
---|---|

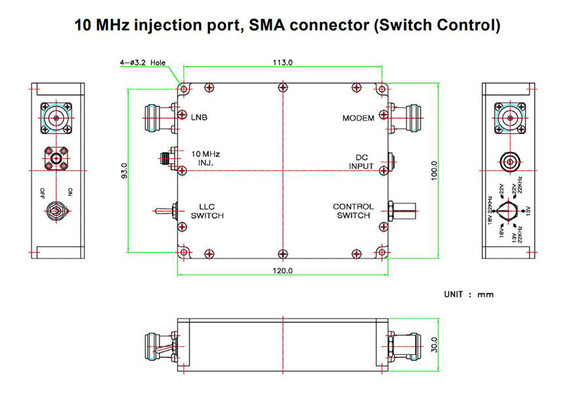

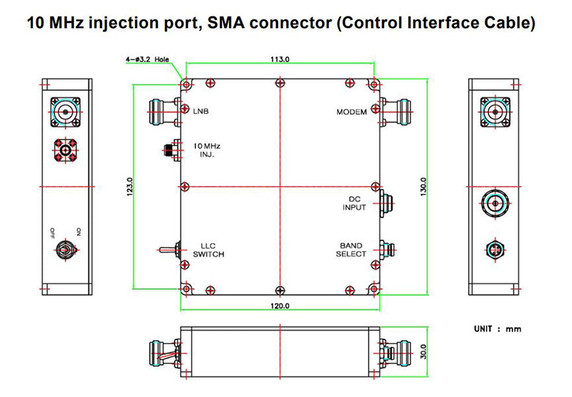

RF output connector | SMA-50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
Additional Information
orbital_datasheet_1: |
https://7645d645-efa2-486e-a916-cc3dc276ec52.usrfiles.com/ugd/7645d6_c0413de1be834fa1bb23ae09a129d42c.pdf?Norsat 6-Band Universal LNB Controller Data Sheet |
