Norsat International Inc.

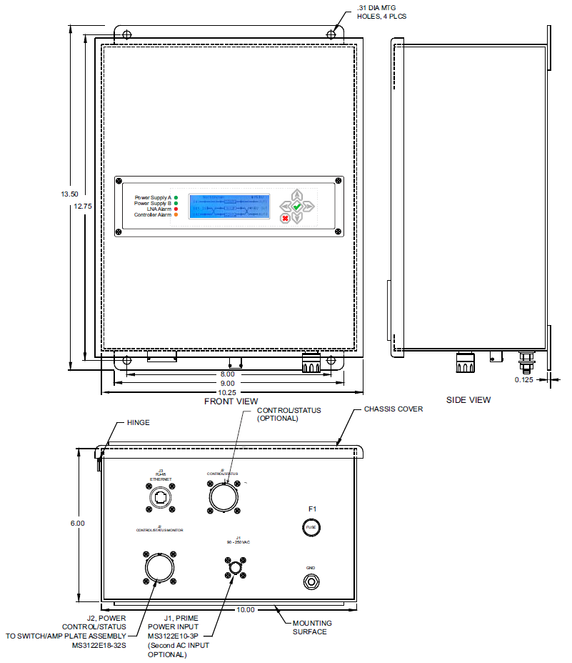

Norsat RSW-100304 1:1 Ka-Band LNA Redundant Switch System w/ LNAs
Product Code:
RSW-100304
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Width:
50.80
(cm)
Height:
4.45
(cm)
Depth:
48.26
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Redundancy | 1:1 |
| Switchover Time | 80 ms max. |
| RF SPECIFICATIONS | |
| AM PM Conversion | 0.5°/dB max. to 0 dBm output |
| Conversion Gain Min | LNA: 60 dB |
| Conversion Gain Typ | LNA: 63 dB |
| Gain | 50 dB min. |
| Gain Flatness | 0.4 dB/40 MHz 1.0 dB peak-to-peak/RF bands up to 500 MHz 1.5 dB peak-to-peak/RF bands up to 800 MHz 2.0 dB peak-to-peak/RF bands greater than 800 MHz |
| Gain Slope | 0.2 dB/10 MHz max. |
| Gain Stability | ±0.2 dB/24 hours (constant temperature) 5 dB maximum/-40 to +60°C |
| Group Delay Linear | 0.02 ns/MHz max. |
| Group Delay Parabolic | 0.001 ns/MHz2 max. |
| Group Delay Ripple | 0.1 ns peak-to-peak max. |
| Impedance | 50 Ω |
| Input Return Loss | 19 dB min. |
| Isolation | 50 dB min. |
| Max Input No Damage | +10 dBm max. |
| Noise Temperature Typ | Waveguide Switch: 12° |
| Output P1db | +10 dBm min. |
| Output Return Loss | 20 dB min. |
| Output Spurious | Below thermal noise |
| Output VSWR Max | 1.50 : 1 |
| Output VSWR Typ | 1.30 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | 90-250 VAC, 47-63 Hz |
| Power Consumption | 20 W typical, 50 W peak during switchover |
| Transmit Desensitivity Threshold | C-band: -20 dBm typ. X-band: -50 dBm typ. Ku-band: -20 dBm typ. Ka-band: -50 dBm typ. |
| INTERFACE SPECIFICATIONS | |
| Connector | Primary Power Input: IEC-320 (indoor controller) Summary Alarm Interface Mating Connector: DEM-9P Remote Interface Connector: DEM-9S for RS485 and RS422, RJ4 female for Ethernet |
| Summary Alarm | Contact closure/open for DC voltage and/or amplifier alarm. Status alarm readout on remote control bus. |
| Waveguide | WR-42 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude Non-Operational | Up to 40,000 feet |
| Altitude Operational | Up to 10,000 feet |
| Shock And Vibration | Normal handling by commercial carriers |
| Temperature Non-Operational | -50 to +70°C |
| Temperature Operational | Rack Controller: 0 to 50°C Hub Controller: -20 to +60°C Amplifier Assembly: -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 44.45 mm max. |
| Product Length | 482.6 mm max. |
| Product Weight | 20 lbs nominal |
| Product Width | 508 mm max. |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in United States of America |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Redundancy | 1:1 |
| Switchover Time | 80 ms max. |
| RF SPECIFICATIONS | |
| AM PM Conversion | 0.5°/dB max. to 0 dBm output |
| Conversion Gain Min | LNA: 60 dB |
| Conversion Gain Typ | LNA: 63 dB |
| Gain | 50 dB min. |
| Gain Flatness | 0.4 dB/40 MHz 1.0 dB peak-to-peak/RF bands up to 500 MHz 1.5 dB peak-to-peak/RF bands up to 800 MHz 2.0 dB peak-to-peak/RF bands greater than 800 MHz |
| Gain Slope | 0.2 dB/10 MHz max. |
| Gain Stability | ±0.2 dB/24 hours (constant temperature) 5 dB maximum/-40 to +60°C |
| Group Delay Linear | 0.02 ns/MHz max. |
| Group Delay Parabolic | 0.001 ns/MHz2 max. |
| Group Delay Ripple | 0.1 ns peak-to-peak max. |
| Impedance | 50 Ω |
| Input Return Loss | 19 dB min. |
| Isolation | 50 dB min. |
| Max Input No Damage | +10 dBm max. |
| Noise Temperature Typ | Waveguide Switch: 12° |
| Output P1db | +10 dBm min. |
| Output Return Loss | 20 dB min. |
| Output Spurious | Below thermal noise |
| Output VSWR Max | 1.50 : 1 |
| Output VSWR Typ | 1.30 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | 90-250 VAC, 47-63 Hz |
| Power Consumption | 20 W typical, 50 W peak during switchover |
| Transmit Desensitivity Threshold | C-band: -20 dBm typ. X-band: -50 dBm typ. Ku-band: -20 dBm typ. Ka-band: -50 dBm typ. |
| INTERFACE SPECIFICATIONS | |
| Connector | Primary Power Input: IEC-320 (indoor controller) Summary Alarm Interface Mating Connector: DEM-9P Remote Interface Connector: DEM-9S for RS485 and RS422, RJ4 female for Ethernet |
| Summary Alarm | Contact closure/open for DC voltage and/or amplifier alarm. Status alarm readout on remote control bus. |
| Waveguide | WR-42 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude Non-Operational | Up to 40,000 feet |
| Altitude Operational | Up to 10,000 feet |
| Shock And Vibration | Normal handling by commercial carriers |
| Temperature Non-Operational | -50 to +70°C |
| Temperature Operational | Rack Controller: 0 to 50°C Hub Controller: -20 to +60°C Amplifier Assembly: -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 44.45 mm max. |
| Product Length | 482.6 mm max. |
| Product Weight | 20 lbs nominal |
| Product Width | 508 mm max. |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in United States of America |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
