Norsat International Inc.

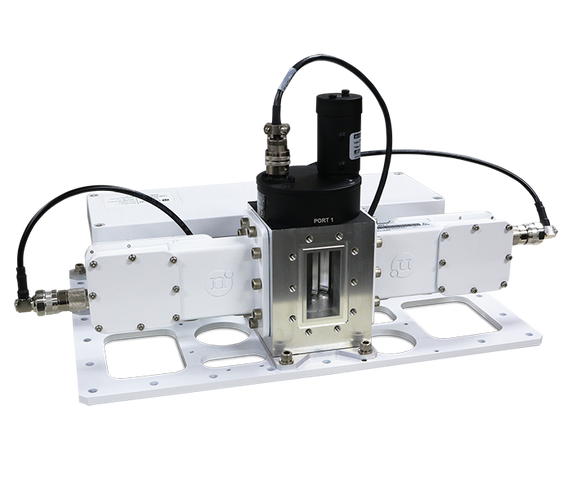

Norsat RSLNBKU11FM Redundant Switch 1:1 LNB, Ku-band
- SKU:
- RSLNBKU11FM
- MPN:
- RSLNBKU11FM
- Condition:
- New
- Availability:
- YES
- Weight:
- 5.40 KGS
- Width:
- 41.30 (cm)
- Height:
- 12.70 (cm)
- Depth:
- 30.50 (cm)
Description
APPLICATIONS
Norsat’s Redundant LNB Switch System features a slim, streamline outdoor unit mounted on a plate for easy installation. Automaticallydetect signal faults and switch to an alternate LNB - providingmaximum satellite service availability. Receive-side signal continuity is maintained via continuous power detection, and upon detecting a fault, signal is automatically switched to the reserve LNB.
Available for either 1:1 or 1:2 redundancy applications, Norsat LNB Redundant Switch solutions combine the reliability and performance of down conversion products with the ultimate system safeguarding solution for remote and challenging satellite terminal installations.
FEATURES
• C, Ku, Ka and X-band Systems Available
• Automatically detect LNB failure via DC current
• Fully automatic or manually-commanded redundancy
• M&C through Ethernet (SNMP, Web Interface)
• Custom requirement available
• Optional 1U-19” Indoor Unit
• Supporting Single-Band & Multi-Band LNB with Internal/External Reference
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
product family | Redundant Switch |
RF SPECIFICATIONS | |
---|---|
output VSWR | 1.5 Maximum |
INTERFACE SPECIFICATIONS | |
---|---|
component type | LNB |
redundancy | 1:1 |
RF input connector | WR-75 |
RF output connector | F-75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | Operational: 8% - 100% | Storage: 10% - 100% |
temperature operational | -40 to +60˚C |
temperature storage | -50 to +80˚C |
Waterproofing | IP66 (ODU) |
PHYSICAL SPECIFICATIONS | |
---|---|
dimensions (LxWxH) | 16.25 in x 12.00 in x 5.01 in |
IDU Dimensions (LxWxH) | 19.00 in x 9.86 in x 1.72 in |
IDU Weight | 3.45 lbs (1.6 kg) |
Weight | 12 lbs (5.4 kg) |
