Norsat International Inc.
Norsat RSBUCWKU BUC Redundant Switch System (950-2000 MHz) 1:1
Product Code:
RSBUCWKU
Condition:
New
Availability:
10 - 12 Weeks
Weight:
1.56 KGS
Width:
13.70
(cm)
Height:
4.90
(cm)
Depth:
19.00
(cm)
$13,867.00
| KEY SPECIFICATIONS | |
| Available Power | 16 - 80W |
| Band | Ku-Band |
| Input Frequency Band 1 | 950 - 2000 MHz |
| Switchover Time | 1s (max.) |
| RF SPECIFICATIONS | |
| Input Power | +10 dBm |
| Input VSWR | 2 : 1 |
| Insertion Loss | 5 dB max. |
| Isolation | 18 dB min. |
| Output VSWR | 1.1 : 1 max. |
| Phase Noise 0.1Khz Offset Max | -65 dBc/Hz |
| RF Waveguide Switch Insertion Loss | 0.1 dB max. |
| RF Waveguide Switch Isolation | 60 dB min. |
| ELECTRICAL SPECIFICATIONS | |
| Power | 110VAC & 220VAC |
| INTERFACE SPECIFICATIONS | |
| Automatic Mode | Automatic Switching upon fault status |
| Input Connector | F-Connector or N-Connector |
| M&C Interface | RS232, RS485 or Ethernet/SNMP |
| Manual Mode | Manual Override via remote PC Interface |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +55°C |
| Temperature Storage | -40 to 85℃ |
| PHYSICAL SPECIFICATIONS | |
| Included Accessory | Cables for connecting the BUCs and the RCU, an MS connector plug for power, and an MS connector for the M&C connection |

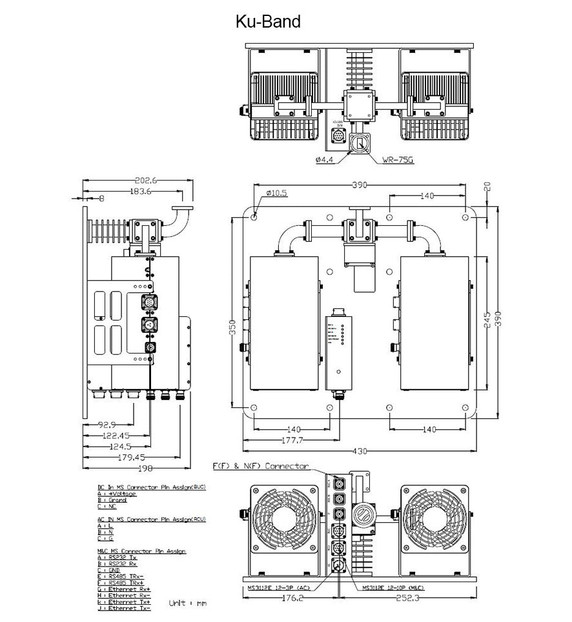

| Mechanical Dimensions | 380 X 315 X 198 mm (16/20/25W RCS); 430 X 390 X 202.6 mm (40W RCS) |
| Mechanical Weight | 9 kg (16/20/25W RCS); 15 kg (40W RCS) |
| Product Height | 49 mm |
| Product Length | 190 mm |
| Product Weight | 1.56 kg |
| Product Width | 137 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 1.36 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 3.4 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Warranty | 3 years |
