Norsat International Inc.
Norsat RSBUCKU80G BUC Redundant Switch System (950 - 2150 MHz) 1:1

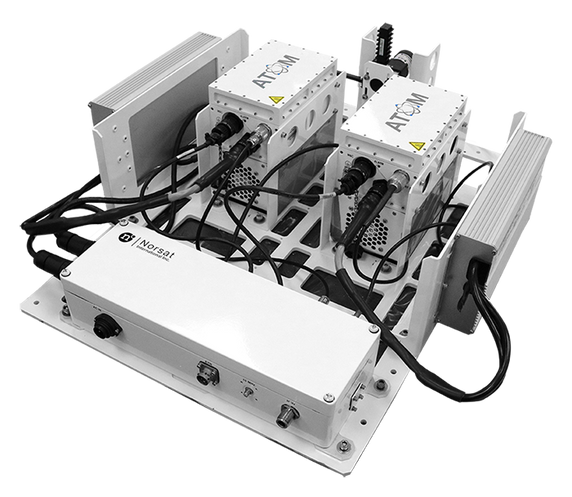

Norsat’s ATOM BUC Redundant Switch System features a slim, streamline outdoor unit mounted on a plate for easy installation. Automatically detect signal faults and switch to an alternate BUC - providing maximum satellite service availability. Transmit-side signal continuity is maintained via monitoring the M&C from the BUC and upon detecting a fault, signal is automatically switched to the reserved BUC.
Available for 1:1 redundancy applications, Norsat BUC Redundant Switch solutions combine the reliability and performance of up conversion products with the ultimate system safeguarding solution for remote and challenging satellite terminal installations.
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Input Frequency Band 1 | 950 - 2150 MHz |
| LO Stability | 10 MHz Source Dependent |
| Optional Add-Ons | None |
| Redundancy | 1:1 |
| RF SPECIFICATIONS | |
| Input VSWR | BUC Dependent |
| Insertion Loss | 6 dB max. |
| Phase Noise 0.1Khz Offset Max | -65 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power | 100-240 VAC (50-60 Hz) |
| INTERFACE SPECIFICATIONS | |
| Input Connector | N-Connector |
| RF Output Connector | WR-75 |
| Switch M&C | Serial, SNMP |
| Switching | Atomatic / Manual |
| INTERFACE SPECIFICATIONS | |
| Component | 80W Ku GAN BUC |
| ENVIRONMENTAL SPECIFICATIONS | |
| Relative Humidity | <100% (ODU); <95% non-condensing (IDU) |
| Temperature Operational | -40°C to +60?C (ODU); -5°C to +45?C (IDU) |

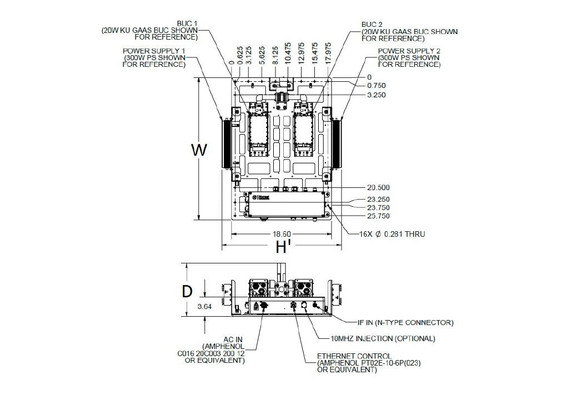

| PHYSICAL SPECIFICATIONS | |
| Product Height | 245.41 mm |
| Product Length | 673.1 mm |
| Product Weight (Including Bucs) | 25.95 kg |
| Product Width | 573.22 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 22.61 kg |
| Aluminium COO | CN |
| Aluminium Total Value | $ 56.525 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 762 x 648 x 310 mm |
| Unit Package Height | 648 mm |
| Unit Package Length | 762 mm |
| Unit Package Weight | 29.6 kg |
| Unit Package Width | 310 mm |
| Warranty | 3 years |
