Norsat International Inc.
Norsat RSBUCKA50 50W Ka BUC Redundant Switch System (950 - 2150 MHz)
Condition:
New
Availability:
Please contact us at contact@orbitalconnect.com or 888.315.9545
Weight:
20.80 KGS
Width:
76.20
(cm)
Height:
64.80
(cm)
Depth:
31.00
(cm)
$13,683.00 - $18,491.00
Norsat RSBUCKA50 BUC Redundant Switch System (950 - 2150 MHz)

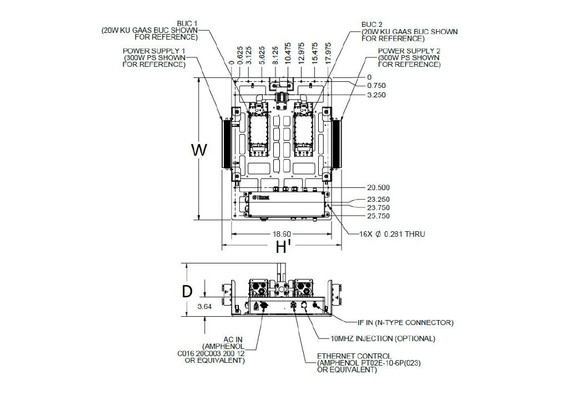

Norsat’s ATOM BUC Redundant Switch System features a slim, streamline outdoor unit mounted on a plate for easy installation. Automatically detect signal faults and switch to an alternate BUC - providing maximum satellite service availability. Transmit-side signal continuity is maintained via monitoring the M&C from the BUC and upon detecting a fault, signal is automatically switched to the reserved BUC.
Available for 1:1 redundancy applications, Norsat BUC Redundant Switch solutions combine the reliability and performance of up conversion products with the ultimate system safeguarding solution for remote and challenging satellite terminal installations.
| KEY SPECIFICATIONS | |
| 10MHz injection (Optional) | None |
| band | Ka-Band |
| IF range | 950 - 2150 MHz |
| insertion loss (L-BAND) | 6 dB max. (including split) |
| LO stability | 10 MHz Source Dependent |
| RF SPECIFICATIONS | |
| input VSWR | BUC Dependent |
| insertion loss | 6 dB max. |
| ELECTRICAL SPECIFICATIONS | |
| power | 100-240 VAC (50-60 Hz) |
| INTERFACE SPECIFICATIONS | |
| component | 50W Ka BUC |
| RF input connector | Type N Connector |
| RF output connector | WR-28 |
| switching | Atomatic / Manual |
| ENVIRONMENTAL SPECIFICATIONS | |
| relative humidity | <100% (ODU); <95% non-condensing (IDU) |
| temperature operational | -40 to +60˚C (ODU); 0 to +55˚C (IDU) |
| PHYSICAL SPECIFICATIONS | |
| dimensions (LxWxH) | 26.5 x 22.2 x 8.7 in |
| IDU Dimensions (LxWxH) | 30.0 x 25.5 x 12.2 in |
| packaging | 762 x 648 x 310 mm (30 x 25.5 x 12.2 in) |
| weight (including BUCs) | 45.7 lbs |
5 customers are viewing this product
Details
Norsat RSBUCKA50 BUC Redundant Switch System (950 - 2150 MHz)
Norsat’s ATOM BUC Redundant Switch System features a slim, streamline outdoor unit mounted on a plate for easy installation. Automatically detect signal faults and switch to an alternate BUC - providing maximum satellite service availability. Transmit-side signal continuity is maintained via monitoring the M&C from the BUC and upon detecting a fault, signal is automatically switched to the reserved BUC.
Available for 1:1 redundancy applications, Norsat BUC Redundant Switch solutions combine the reliability and performance of up conversion products with the ultimate system safeguarding solution for remote and challenging satellite terminal installations.
| KEY SPECIFICATIONS | |
| 10MHz injection (Optional) | None |
| band | Ka-Band |
| IF range | 950 - 2150 MHz |
| insertion loss (L-BAND) | 6 dB max. (including split) |
| LO stability | 10 MHz Source Dependent |
| RF SPECIFICATIONS | |
| input VSWR | BUC Dependent |
| insertion loss | 6 dB max. |
| ELECTRICAL SPECIFICATIONS | |
| power | 100-240 VAC (50-60 Hz) |
| INTERFACE SPECIFICATIONS | |
| component | 50W Ka BUC |
| RF input connector | Type N Connector |
| RF output connector | WR-28 |
| switching | Atomatic / Manual |
| ENVIRONMENTAL SPECIFICATIONS | |
| relative humidity | <100% (ODU); <95% non-condensing (IDU) |
| temperature operational | -40 to +60˚C (ODU); 0 to +55˚C (IDU) |
| PHYSICAL SPECIFICATIONS | |
| dimensions (LxWxH) | 26.5 x 22.2 x 8.7 in |
| IDU Dimensions (LxWxH) | 30.0 x 25.5 x 12.2 in |
| packaging | 762 x 648 x 310 mm (30 x 25.5 x 12.2 in) |
| weight (including BUCs) | 45.7 lbs |
