Norsat International Inc.

Norsat LNB Redundant Switch System RSLNBISKA12T3

(No reviews yet) Write a Review
SKU:
RSLNBISKA12T3
MPN:
RSLNBISKA12T3
Availability:
YES
Weight:
13.50 KGS
  • Norsat LNB Redundant Switch System RSLNBISKA12T3
  • Norsat LNB Redundant Switch System RSLNBISKA12T3
  • Norsat LNB Redundant Switch System RSLNBISKA12T3
$33,984.00

Description

Norsat’s Redundant Switch Systems automatically detect signal faults and switch to an alternate LNB, LNA or BDC - providing maximum satellite service availability.


KEY SPECIFICATIONS
Product Family Redundant Switch
Band Ka-Band

INTERFACE SPECIFICATIONS
Component Type LNB, Internal Ref, Single Band
Redundancy 1:2
Tx/Rx Configuration Tx/Rx

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational - 40 to +60˚C (ODU); 0 to +55˚C (IDU)
Humidity ODU<100%; IDU<95% non-condensing

PHYSICAL SPECIFICATIONS

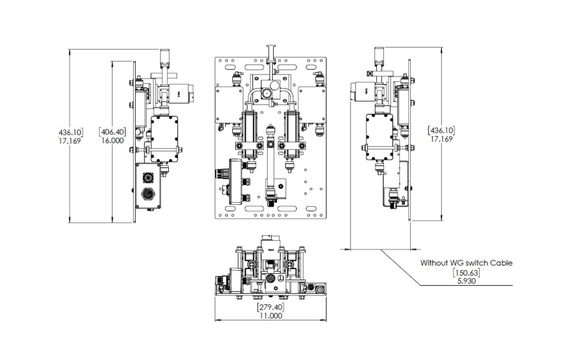

Dimensions (L x W x H) 483 x 159 x 295 mm (ODU); 483 x 44.5 x 508 mm (IDU)
Weight 9kg max.(ODU); 4.5kg max.(IDU)
