Norsat International Inc.

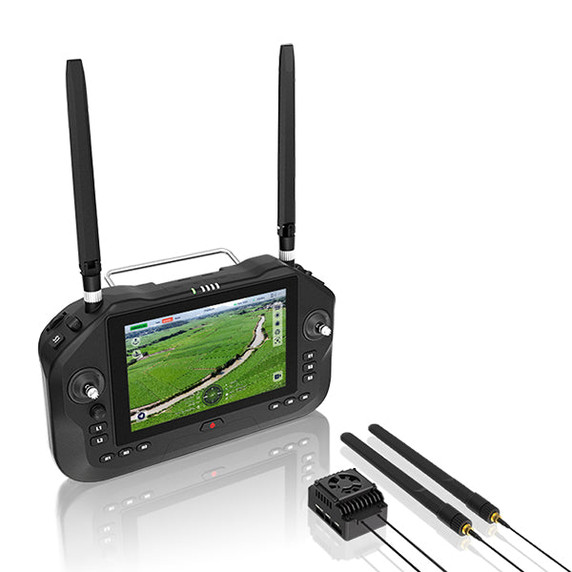

Norsat RC400C70 40km Dual-Frequency Handheld Ground Station
Product Code:
RC400C70
Condition:
New
Availability:
10 - 12 Weeks
Weight:
1.44 KGS
Width:
19.00
(cm)
Height:
10.00
(cm)
Depth:
27.40
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Antennas | 2 x External (2.4 GHz) |
| GNSS | GPS/GLONASS/BeiDou/Galileo/QZSS |
| Maximum Effective Signal Range | Agriculture spraying altitude: 3 --6km, Rural flight altitude:10-15 km(few obstructiona nd medium interference), Above sea flight altitude: 30 - 40km( No obstrution and low interference) |
| Transmission Range | 40 km |
| ELECTRICAL SPECIFICATIONS | |
| Battery Capacity | 13,400 mAh |
| Battery Life | 11 hours (Approx) |
| Charging Port | 6W |
| Charging Protocol | 30W PD |
| Ground Unit Charging Time | Approx 4.5 hours |
| Ground Unit Interfaces Charging | Type-C |
| Working Voltage | 12 to 76 V |
| INTERFACE SPECIFICATIONS | |
| Airunit Datalink | 2 x UART (GH1.25 3-Pin) |
| Airunit Filmware Upgrade | Type-C |
| Airunit Power Supply | XT30 |
| Airunit RC Signal Output | RC Signal Output: S.Bus (GH1.25 2-Pin) |
| Airunit RC Signal Output Sbus | RC Signal Output: PWM 1 to 5 (GH1.25 6-Pin) |
| Airunit Video And Data | 2 x LAN (GH1.25 8-Pin) |
| Android Hardware | 4GB RAM+ 64GB ROM |
| Bluetooth | BT 5.0 |
| Datalink SDK Port | UART/UDP、Bluetooth、Type-C |
| Ground Unit External Devices | TF Card Slot, USB-A |
| Ground Unit File Transfer | Type-C |
| Ground Unit Firmware Upgrade | Type-C |
| Ground Unit Mobile Network | SIM Card Slot |
| Ground Unit Tripod Mount | 1/4-inch Standard Screw Hole |
| Number Of Communication Channels | 16 |
| Operating System | Android 13 |
| Product Display | 7" ; 1280 * 800 |
| RC Signal Output | 16-channel S.Bus; 5-channel PWM |
| Serial Port | USB-A |
| Video Bitrate | 65 Mbps |
| Video TX | 2.4 GHz |
| Wifi | Wi-Fi 5 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Protection Class | IP54 |
| Working Frequency | 2.4000 GHz - 2.476 GHz |
| PHYSICAL SPECIFICATIONS | |
| Number Of Dials | 2 |
| Number Of Flight Mode Buttons | 6 |
| Number Of Main Joystics | 2 |
| Number Of Sub Joystics | 1 |
| Numbner Of Custom Buttons | 10 |
| Product Airunit Height Without Antenna | 28 mm |
| Product Airunit Weight Without Antenna | 0.09 Kg |
| Product Airunit Width Without Antenna | 40 mm |
| Product Height | 100mm |
| Product Length | 274mm |
| Product Length Without Antenna | 57mm |
| Product Weight | 1.44 kg |
| Product Width | 190mm |
| Stage Switches | 2 x 3 |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | N/A - No US Content |
| Harmonized System Code | 8526920090 |
