Norsat International Inc.

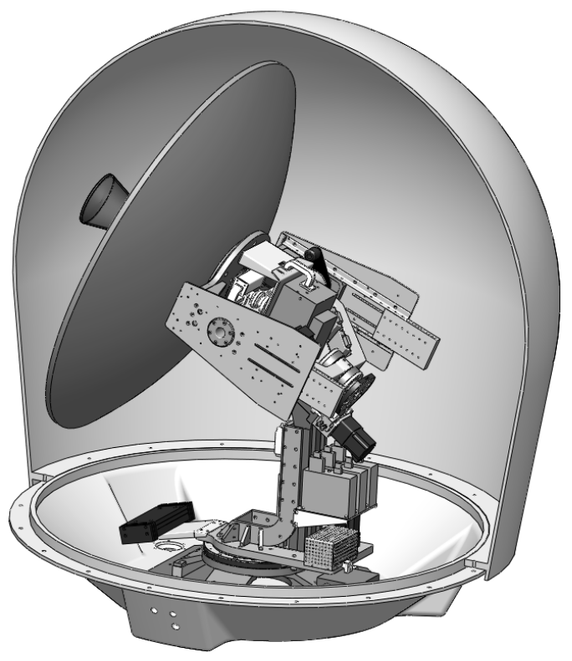

Norsat MLINK-100469 1.0m X-Band Maritime Antenna - RAL 7001
Product Code:
MLINK-100469
Condition:
New
Availability:
10 - 12 Weeks
Weight:
112.00 KGS
Width:
15.20
(cm)
Height:
14.50
(cm)
Depth:
15.20
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.0m |
| Band | X-Band |
| Certification | Vibration: MIL-STD-167/1 Shock: MIL-STD-901D |
| Enclosed Accessories | Includes a Thermoelectric Air Conditioner |
| G/T | 12.6 dB/K (using XT1000HF, assuming clear skies, 20° Elevation, 0.5 dB waveguide loss, 0.5 dB radome loss) |
| Radome Color | RAL 7001 |
| Radome Material | Fiberglass |
| Radome Structure | Paper Honeycomb Sandwich |
| ANTENNA SPECIFICATIONS | |
| Acceleration | Azimuth: ≥ 200°/s² Elevation: ≥ 60°/s² Cross: ≥ 60°/s² |
| ACU Size | 19” Rack 1U size |
| Auto Acquistion Time | ≤ 3min |
| Axial Ratio | Tx: ≤ 1.2 dB Rx: ≤ 1.2 dB |
| Azimuth Range | 360° Unlimited |
| Cross Angle | ± 30° |
| Dynamic Star Cutting Time | ≤ 8s |
| Elevation Angle | -5° to +115° |
| Feed Configuration | Positive Feed Loop Focus |
| Feed Interface | Tx: WR112 Rx: WR112 |
| Insertion Loss Radome | ≤ 0.5 dB |
| Motion Parameters | Azimuth: ±8° at 15 to 20 second periods Elevation: ±10° at 6 to 12 second periods Cross: ±20° at 8 to 12 second periods |
| Operating Platform | 3 - Axis |
| Pointing Accuracy | ≤ 0.4° |
| Polarization | Circular |
| Reflector Material | Carbon Fiber |
| Satellite Time | Blockage recovery time: ≤ 5s (Blockage: 1 min) |
| Sidelobe | ≤ -14 dB (first side lobe), Compatible with INTELSAT, EUTELSAT |
| Skew Control | Automatic |
| Starway | Beacon +DVB |
| Tracking Accuracy | ≤ 0.5 dB (R.M.S.) |
| Tracking Speed | Azimuth: ≤ 60°/s Elevation: ≤ 60°/s Cross: ≤ 60°/s |
| Vibration Damper | Shock Absorber and Wire Rope Isolators (6x sets) |
| RF SPECIFICATIONS | |
| Noise Temperature | ≤ 50K @ 20° Elevation |
| Power Capacity | 500W |
| Rx Frequency | 7.25 - 7.75 GHz |
| Rx Gain | ≥35.4+20lg (f/7.5) dBi |
| Rx Tx Isolation Port Isolation | ≥ 40dB |
| Rx VSWR | ≤ 1.5：1 |
| Tx Frequency | 7.90 - 8.40 GHz |
| Tx Gain | ≥36.5+20lg (f/8.15) dBi |
| Tx Rx Isolation Port Isolation | ≥ 85dB <0.1 dB increase in receive noise density over 7.25 - 7.75 GHz when transmitter operating at any EIRP level up to maximum |
| Tx VSWR | ≤ 1.5：1 |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | AC Cable: 220V AC, 10 A (from ACU) DC Cable: 48V DC, 10A (from ACU) |
| Power Consumption | 1000W (for the antenna system including the pedestal, air conditioning unit, and 25W BUC). The ACU provides three sperate power outputs to each component individually. |
| INTERFACE SPECIFICATIONS | |
| Positioning Mode | GPS |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 100% (40°C) |
| IP Rating | IP 65 |
| Temperature Operational | -40° to +60°C |
| Temperature Storage | -50 to +70˚C |
| Wind Load Operational | 21 m/s |
| Wind Load Survival | 35 m/s |

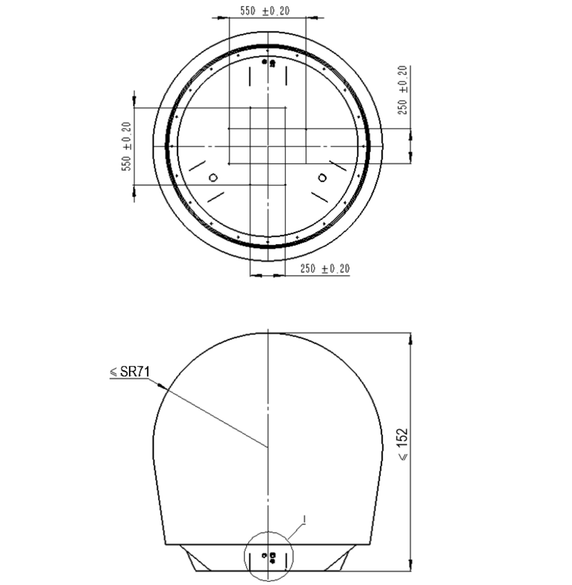

| PHYSICAL SPECIFICATIONS | |
| Product Height | 145 mm |
| Product Length | 152 mm |
| Product Weight | ≤ 112 kg |
| Product Width | 152 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
