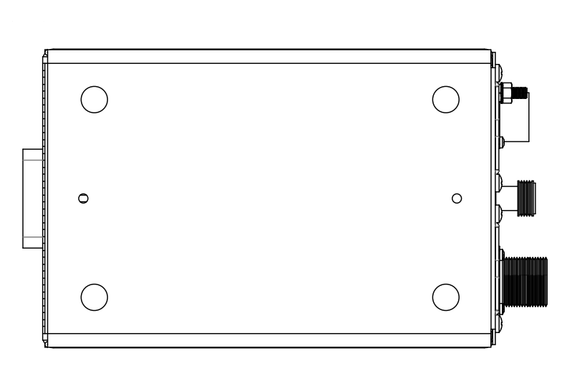

Norsat MEDIBKU040E MEDIAN 40W Ku-Band BUC - DEMO
Product Code:
MEDIBKU040E
Manufacturer Part Number (MPN):
MEDIBKU040E
Condition:
New
Availability:
10 - 12 Weeks
Weight:
4.50 KGS
Width:
13.60
(cm)
Height:
11.70
(cm)
Depth:
20.60
(cm)
$16,485.00
Norsat Satellite Communication solutions are renowned for their high quality, reliability, and innovation. The Ku-band MEDIAN series constraints are not as stringent.
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| External Ref Freq | 10 MHz |
| Input Frequency Band 1 | 950 – 1700 MHz |
| LO Frequency 1 | 12.80 GHz |
| Output Frequency Band 1 | 13.75 - 14.50 GHz |
| Output Power Rated | 40W |
| RF SPECIFICATIONS | |
| Gain Variation Over Temperature (Open Loop) | +/- 1.5 dB |
| Input Power | via IFL |
| Input VSWR | 1.5 : 1 |
| Output Power Psat | 46 dBm min. |
| Output VSWR | 1.25 : 1 |
| Phase Noise 10Khz Max | –83 dBc/Hz |
| Phase Noise 1Khz Max | –73 dBc/Hz |
| Reference Power Level | -5 dBm to +5dBm |
| ELECTRICAL SPECIFICATIONS | |
| Input Voltage | +36 to +72V, 48 VDC nominal, 48 VDC over IFL optional |
| M&C Connector | PT02E-14-19P (MS3112) |
| M&C Interface | RS-232 / RS-485 / Ethernet |
| Power Consumption | 300W at rated power, 270W at 3 dB back-off from rated |
| Power Requirements | +36 to +72V |
| INTERFACE SPECIFICATIONS | |
| Input Connector | Type-N, female |
| Output Connector | WR75-G (grooved) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Ingress Protection | IP65 |
| Temperature Operational | -30°C to +55°C |
| PHYSICAL SPECIFICATIONS | |
| Led Indicators | Red, Yellow |
| Product Height | 117 mm |
| Product Length | 206 mm |
| Product Weight | 4.5 kg |
| Product Width | 136 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 350 mm x 220 mm x 215 mm |
| Unit Package Height | 215 mm |
| Unit Package Length | 350 mm |
| Unit Package Weight | 5.18 kg |
| Unit Package Width | 220 mm |
| Warranty | 1 year |
5 customers are viewing this product
Details
Norsat Satellite Communication solutions are renowned for their high quality, reliability, and innovation. The Ku-band MEDIAN series constraints are not as stringent.
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| External Ref Freq | 10 MHz |
| Input Frequency Band 1 | 950 – 1700 MHz |
| LO Frequency 1 | 12.80 GHz |
| Output Frequency Band 1 | 13.75 - 14.50 GHz |
| Output Power Rated | 40W |
| RF SPECIFICATIONS | |
| Gain Variation Over Temperature (Open Loop) | +/- 1.5 dB |
| Input Power | via IFL |
| Input VSWR | 1.5 : 1 |
| Output Power Psat | 46 dBm min. |
| Output VSWR | 1.25 : 1 |
| Phase Noise 10Khz Max | –83 dBc/Hz |
| Phase Noise 1Khz Max | –73 dBc/Hz |
| Reference Power Level | -5 dBm to +5dBm |
| ELECTRICAL SPECIFICATIONS | |
| Input Voltage | +36 to +72V, 48 VDC nominal, 48 VDC over IFL optional |
| M&C Connector | PT02E-14-19P (MS3112) |
| M&C Interface | RS-232 / RS-485 / Ethernet |
| Power Consumption | 300W at rated power, 270W at 3 dB back-off from rated |
| Power Requirements | +36 to +72V |
| INTERFACE SPECIFICATIONS | |
| Input Connector | Type-N, female |
| Output Connector | WR75-G (grooved) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Ingress Protection | IP65 |
| Temperature Operational | -30°C to +55°C |
| PHYSICAL SPECIFICATIONS | |
| Led Indicators | Red, Yellow |
| Product Height | 117 mm |
| Product Length | 206 mm |
| Product Weight | 4.5 kg |
| Product Width | 136 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 350 mm x 220 mm x 215 mm |
| Unit Package Height | 215 mm |
| Unit Package Length | 350 mm |
| Unit Package Weight | 5.18 kg |
| Unit Package Width | 220 mm |
| Warranty | 1 year |
Download
| Download Name | |
| Norsat MEDIBKU040E 40W Ku-Band BUC Data Sheet | |
