Norsat International Inc.

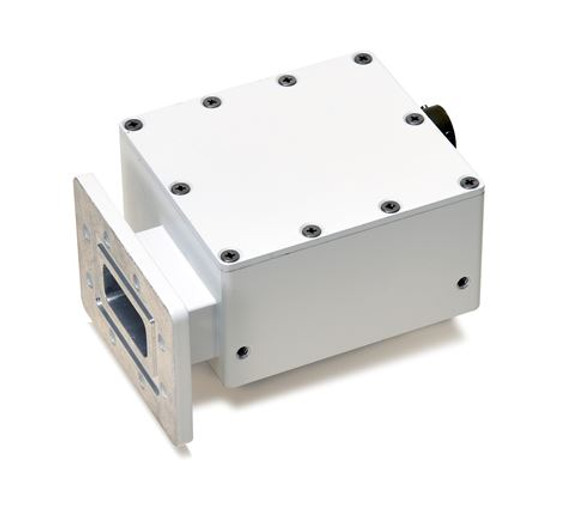

Norsat LNAX22NP Single-Band X-Band LNA

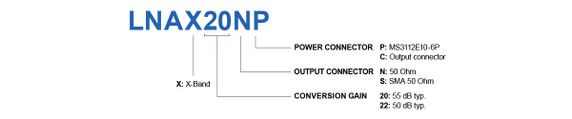

Product Code:
LNAX22NP
Condition:
New
Availability:
6 - 8 Weeks
Weight:
0.55 KGS
Width:
7.70
(cm)
Height:
9.21
(cm)
Depth:
4.62
(cm)
$3,639.00
| KEY SPECIFICATIONS | |
| Band | X-Band |
| Input Frequency Band 1 | 7.25 - 7.75 GHz |
| Noise Figure | 0.8 dB |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 55 dB |
| Conversion Gain Min | 45 dB |
| Conversion Gain Typ | 50 dB |
| Gain Flatness | 4 dB p-p |
| Gain Ripple (At Per 36Mhz) | 1 dB p-p |
| Input VSWR | 2.0 : 1 |
| Output P1db | + 10 dBm |
| Output VSWR | 2.0 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | MS3112E10-6P |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| Input W/G Flange | CPR 112G |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 92.1 mm |
| Product Length | 46.2 mm |
| Product Weight | 0.55 kg |
| Product Width | 77 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.460 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 1.15 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 145 x 95 x 65 mm |
| Unit Package Height | 65 mm |
| Unit Package Length | 145 mm |
| Unit Package Weight | 0.645 kg |
| Unit Package Width | 95 mm |
| Warranty | 3 years |
