Norsat International Inc.
Norsat LNAS10NF Single-Band S-Band LNA - LNA Series
Product Code:
LNAS10NF
Condition:
New
Weight:
0.25 KGS
Width:
10.00
(cm)
Height:
2.26
(cm)
Depth:
4.50
(cm)
$2,902.00
Norsat Single-Band S-Band LNA - LNA Series
KEY SPECIFICATIONS | |
band | S-Band |
input frequency band 1 | 2100 - 2500 MHz |
required current | 300 mA |
RF SPECIFICATIONS | |
conversion gain | 50 dB min., 60 dB typ., 65 dB max. |
Gain Flatness | 2 dB p-p |
gain ripple (at per 36MHz) | 1 dB p-p |
input VSWR | 2.0 : 1 |
output P1dB | + 10 dBm |
output VSWR | 2.0 : 1 |
ELECTRICAL SPECIFICATIONS | |
power connector | Pin through connector |
power supply | 12-24 VDC |
INTERFACE SPECIFICATIONS | |
RF input connector | N-Type 50 Ohms |
ENVIRONMENTAL SPECIFICATIONS | |
noise temperature | 45'K |
temperature operational | -40 to +60°C |
PHYSICAL SPECIFICATIONS | |

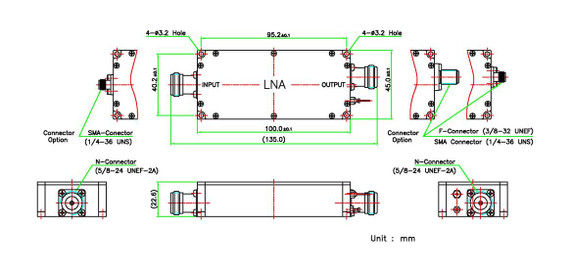

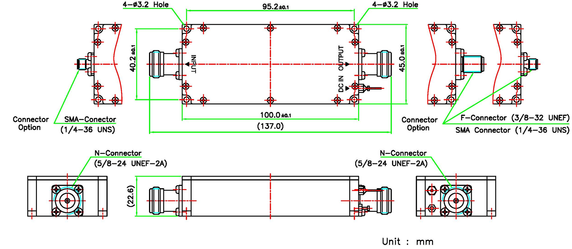

product dimensions (LxWxH) | 22.6 x 45.0 x 100.0 mm |
product weight | 250 g |
