Norsat International Inc.
Norsat LNAC00NC Single-Band C-Band LNA
Product Code:
LNAC00NC
Condition:
New
Availability:
6 - 8 Weeks
Weight:
0.63 KGS
Width:
7.00
(cm)
Height:
16.45
(cm)
Depth:
9.88
(cm)
$2,389.00
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | 3.40 - 4.20 GHz |
| Noise Figure | 30’K max. |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 50 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness | 4 dB p-p |
| Gain Ripple (At Per 36Mhz) | 1 dB p-p |
| Input VSWR | 2.2 : 1 |
| Output P1db | + 5 dBm |
| Output VSWR | 2.2 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | Output connector |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| Input W/G Flange | CPR 229G |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |

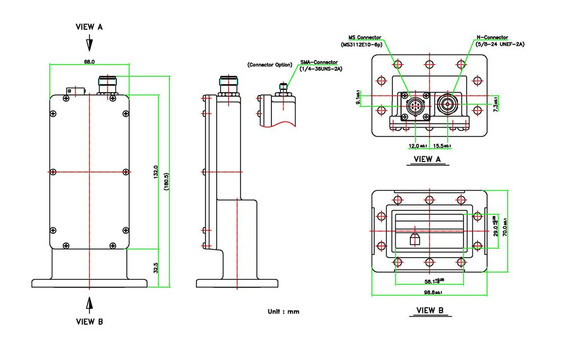

| PHYSICAL SPECIFICATIONS | |
| Product Height | 164.5 mm |
| Product Length | 98.8 mm |
| Product Weight | 0.63 kg |
| Product Width | 70 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.435 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 1.0875 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Unit Package Dimensions | 190 x 115 x 75 mm |
| Unit Package Height | 75 mm |
| Unit Package Length | 190 mm |
| Unit Package Weight | 0.655 kg |
| Unit Package Width | 115 mm |
| Warranty | 3 years |
