Norsat International Inc.
Norsat LNA-4000CN
Product Code:
LNA-4000CN
Availability:
YES
Weight:
0.40 KGS
Width:
6.00
(cm)
Height:
4.30
(cm)
Depth:
12.00
(cm)
$1,749.00
Norsat’s LNA’s provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ku-Band LNAs are backed by forty years of experience as the industry’s leading provider of high performance LNAs. 4000 Series.
| KEY SPECIFICATIONS | |
| Product Family | 9000 Series |
| Band | Ku-Band |
| Noise Figure | 0.8 dB |
| Input Frequency - Band 1 | Ku-Band: 10.70 - 12.75 GHz |
| RF SPECIFICATIONS | |
| Output Power( P1dB) | 5 dBm min |
| Conversion Gain | 50 dBm |
| Gain Variation over operating band | 4.0 dB p-p |
| Input VSWR | 2.5 : 1 |
| Output VSWR | 2.0 : 1 |
| Output P1dB compression point | 8 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 15 - 24 V |
| Current Drain | 250 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-75 waveguide grooved |
| RF Output Connector | N-50 Ohm |
| M & C SPECIFICATIONS | |
| Input Power Port | DC Power via MS3112E10-6P |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +80°C |
| Humidity | 0 - 95% |
| PHYSICAL SPECIFICATIONS | |

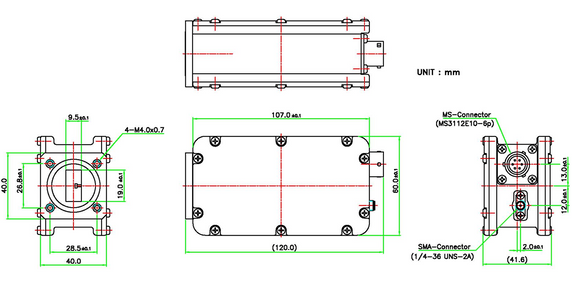

| Dimensions (L x W x H) | 120 x 60 x 43 mm |
| Weight | 400 g |
5 customers are viewing this product
Details
Norsat’s LNA’s provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ku-Band LNAs are backed by forty years of experience as the industry’s leading provider of high performance LNAs. 4000 Series.
| KEY SPECIFICATIONS | |
| Product Family | 9000 Series |
| Band | Ku-Band |
| Noise Figure | 0.8 dB |
| Input Frequency - Band 1 | Ku-Band: 10.70 - 12.75 GHz |
| RF SPECIFICATIONS | |
| Output Power( P1dB) | 5 dBm min |
| Conversion Gain | 50 dBm |
| Gain Variation over operating band | 4.0 dB p-p |
| Input VSWR | 2.5 : 1 |
| Output VSWR | 2.0 : 1 |
| Output P1dB compression point | 8 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 15 - 24 V |
| Current Drain | 250 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-75 waveguide grooved |
| RF Output Connector | N-50 Ohm |
| M & C SPECIFICATIONS | |
| Input Power Port | DC Power via MS3112E10-6P |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +80°C |
| Humidity | 0 - 95% |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 120 x 60 x 43 mm |
| Weight | 400 g |
Download
| Download Name | |
| Norsat LNA-4000CN Data Sheet | |
