Norsat International Inc.

Norsat 1000 Series BDC-1000AFD Ku-Band Single-band BDC

(No reviews yet) Write a Review
SKU:
BDC-1000AFD
MPN:
BDC-1000AFD
Availability:
YES
Weight:
0.30 KGS
Width:
7.80 (cm)
Height:
4.40 (cm)
Depth:
10.70 (cm)
  • Norsat 1000 Series BDC-1000AFD Ku-Band Single-band BDC
  • Norsat 1000 Series BDC-1000AFD Ku-Band Single-band BDC
$1,760.00

Description

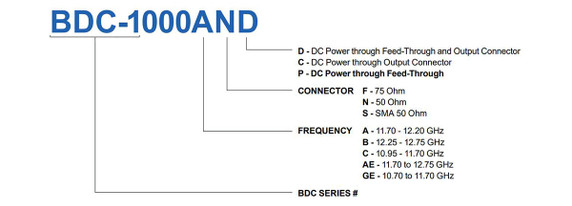

Norsat’s Block Downconverters (BDCs) provide high performance signal conversion for satellite communication.



KEY SPECIFICATIONS
Product Family 1000 Series
Band Ku-Band
# of onboard LOs Single-band
LO Stability +/- 30 kHz
Noise Figure 10 dB
Input Frequency - Band 1 Ku-Band: 11.70 - 12.20 GHz
Output Frequency 1 L-Band: 950 - 1450 MHz

RF SPECIFICATIONS
LO Frequency 1 10.75 GHz
Conversion Gain 20 dBm
Gain Variation over temperature +/- 2.5 dBm at any constant frequency
Input VSWR 1.9 : 1
Output VSWR 2.0 : 1
Output P1dB compression point 6 dBm

ELECTRICAL SPECIFICATIONS
Power Requirements 15 - 24 V
Current Drain 260 mA

INTERFACE SPECIFICATIONS
RF Input Connector SMA
RF Output Connector F-75 Ohm

M & C SPECIFICATIONS
Input Power Port DC Power via Feed-Through & Output Connector

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational -40 to +60°C
Humidity 0 - 95%

PHYSICAL SPECIFICATIONS
Dimensions (L x W x H) 107 x 78 x 44 mm
Weight 300 g
View AllClose

Additional Information

orbital_datasheet_1:
https://ba6839db-e1e9-457a-87bd-14abd0827fdf.usrfiles.com/ugd/ba6839_0b516e1bce3840869ee9027efccc176c.pdf?Norsat 1000 Series BDC-1000AFD Ku-Band Single-band BDC Data Sheet
