Norsat International Inc.

Norsat 9000 Series BDC-9000AFP Ka-Band Single-band BDC

No reviews yet
Product Code: BDC-9000AFP
Availability: YES
Weight: 0.40 KGS
Width: 7.80 (cm)
Height: 4.40 (cm)
Depth: 9.00 (cm)
$3,520.00

Norsat’s Block Downconverters (BDCs) provide high performance signal conversion for satellite communication.

KEY SPECIFICATIONS
Product Family 9000 Series
Band Ka-Band
# of onboard LOs Single-band
LO Stability ± 50 kHz max.
Noise Figure 18 dB
Input Frequency - Band 1 Ka-Band: 18.20 - 19.20 GHz
Output Frequency 1 L-Band: 950 - 1950 MHz

RF SPECIFICATIONS
LO Frequency 1 17.25 GHz
Phase Noise @ 1KHz offset -70 dBc/Hz
Phase Noise @ 10KHz offset -80 dBc/Hz
Phase Noise @ 100KHz offset -95 dBc/Hz
Conversion Gain 25 dB typ
Gain Variation over operating band 4.0 dB p-p
Input VSWR 2.2 : 1
Output VSWR 2.1 : 1
Output P1dB compression point 5 dBm

ELECTRICAL SPECIFICATIONS
Power Requirements 15 - 24 V
Current Drain 350 mA

INTERFACE SPECIFICATIONS
RF Input Connector SMA
RF Output Connector F-75 Ohm

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational -40 to +60°C
Temperature - Storage -40 to +80°C

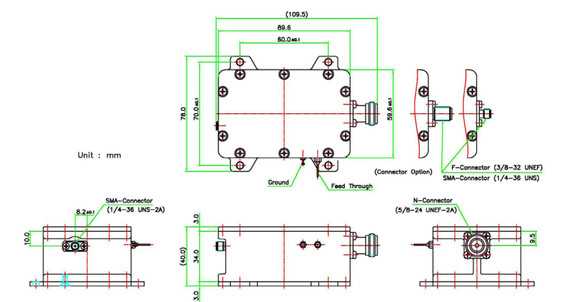

PHYSICAL SPECIFICATIONS
Dimensions (L x W x H) 90 x 78 x 44 mm
Weight 400 g
