Norsat International Inc.
Norsat HPASC072 RF High Power Amplifier Systems 26.5 - 40 GHz
Product Code:
HPASC072
Condition:
New
Availability:
10 - 12 Weeks
Weight:
250.00 KGS
$1,073,077.78

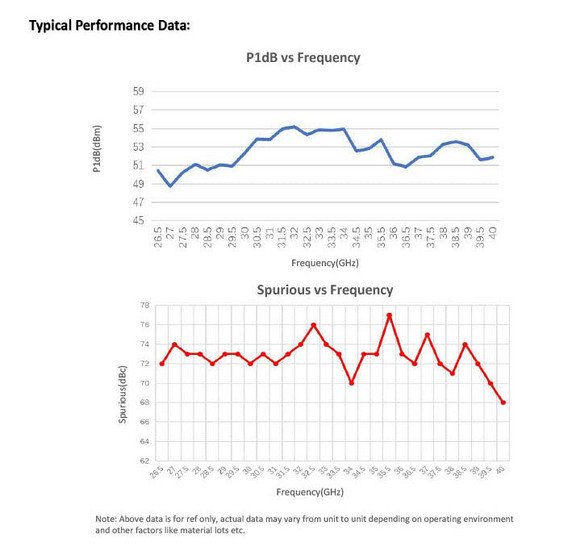

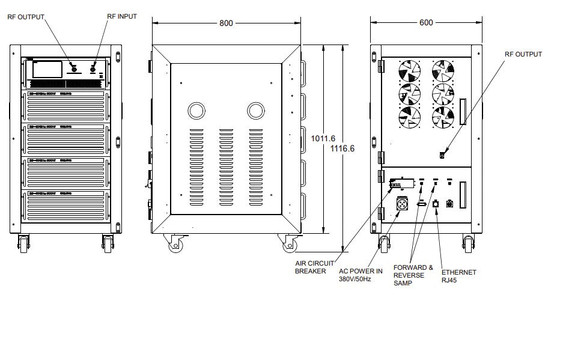

| KEY SPECIFICATIONS | |
| Gain Min | 57 dB |
| Input Frequency Band 1 | 26.5 - 40 GHz |
| Number Of Bands | Single-Band |
| Output Psat Min | 57 dBm |
| Transmission Mode | Continuous Wave |
| RF SPECIFICATIONS | |
| ESD Sensitivity(Hbm) | Class 0, passed 150V |
| Gain Flatness Typ | ±5 dB |
| Harmonics | -20 dBc max. |
| Input VSWR Max | 2.0 : 1 |
| RF Input Power | 0 dBm |
| Spurious | -60 dBc max. |
| ELECTRICAL SPECIFICATIONS | |
| Control Functions | 1. Power setting On/Off; 2. ALC automatic level control |
| Impedance | 50 Ohms |
| Power Consumption | 12500Watts@max. |
| Power Requirements | 380V AC typ. |
| Protection Functions | 1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR |
| INTERFACE SPECIFICATIONS | |
| Communication Functions | RS422/LAN |
| Communication Interfaces | RJ45/DB9 |
| Forward/Reverse Coupling Connector | 2.92 Female/2.92 Female |
| Front Panel LCD Screen Display | 7 inch LCD Screen Display |
| Input Connector | 2.92mm Female |
| Output Connector | WR-28 |
| Remote Control | RS422/LAN |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude | 10000 feet |
| Relative Humidity | 0.95 |
| Shock (Non Operating) | 20g for 11msc half sin wave, 3 axis both directions |
| Shock/Vibration (MIL-STD-810F) | 25g rms (15-degree 2KHz) endurance, 1 hour per axis |
| Temperature Operational | -20°C to +40°C |
| Temperature Storage | -30°C to +50°C |
| PHYSICAL SPECIFICATIONS | |
| Cooling System | Built in Cooling system, forced air cooliong |
| Product Dimensions | 20U |
| Product Weight | ≤ 250 kg |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | 3A001.b.4.d |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517799000 |
| Unit Package Dimensions | - |
| Unit Package Weight | 290 kg |
| Warranty | 3 years |
