Norsat International Inc.
Norsat HPA-100015 RF High Power Amplifier Systems 18 - 40 GHz 120VAC
Product Code:
HPA-100015
Condition:
New
Availability:
10 - 12 Weeks
Weight:
35.00 KGS
$35,100.00
| KEY SPECIFICATIONS | |
| Gain Min | 43 dB |
| Input Frequency Band 1 | 18 - 40 GHz |
| Number Of Bands | Single-Band |

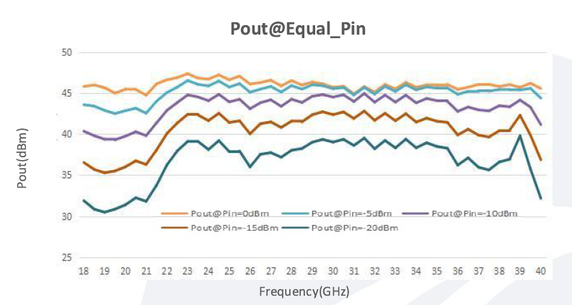

| Output Psat Min | 43 dBm |
| Working Mode | CW/PULSE comp |
| RF SPECIFICATIONS | |
| ESD Sensitivity(Hbm) | Class 0, passed 150V |
| Gain Flatness | ±5 dB typ |
| Harmonics | -15 dBc max. |
| Input VSWR Max | 2.0 : 1 |
| RF Input Power | 10 dBm |

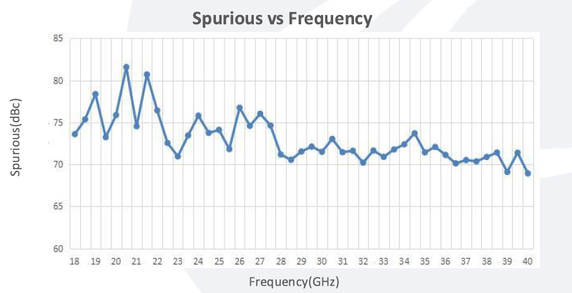

| Spurious | -50 dBc max. |
| ELECTRICAL SPECIFICATIONS | |
| Control Functions | 1. Power setting On/Off |
| Impedance | 50 Ohms |
| Power Consumption | 600Watts@max. |
| Power Requirements | 120V AC |
| Protection Functions | 1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR |
| Supply Bias Voltage | 120V AC |
| INTERFACE SPECIFICATIONS | |
| Input Connector | 2.92mm Female |
| Output Connector | 2.92mm Female |
| Remote Control | RS422/Ethernet |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude | 10000 feet |
| Relative Humidity | 0.95 |
| Shock (Non Operating) | 20g for 11msc half sin wave, 3 axis both directions |
| Shock/Vibration (MIL-STD-810F) | 25g rms (15-degree 2KHz) endurance, 1 hour per axis |
| Temperature Operational | -20°C to +50°C |
| Temperature Storage | -30°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Cooling System | Built in Cooling system, forced air cooliong |

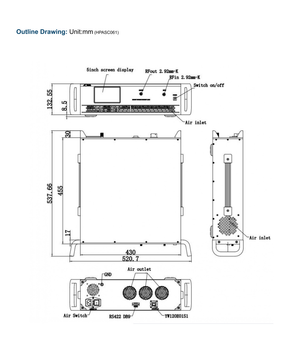

| Product Dimensions | 19 Inch 3U*550 mm |
| Product Weight | 35 kg |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | 0 |
| Country Of Origin | Made in China |
| ECCN Number | 3A001.B.4.D |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517799000 |
| Unit Package Dimensions | - |
| Unit Package Weight | <35kg |
| Warranty | 1 years |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Gain Min | 43 dB |
| Input Frequency Band 1 | 18 - 40 GHz |
| Number Of Bands | Single-Band |
| Output Psat Min | 43 dBm |
| Working Mode | CW/PULSE comp |
| RF SPECIFICATIONS | |
| ESD Sensitivity(Hbm) | Class 0, passed 150V |
| Gain Flatness | ±5 dB typ |
| Harmonics | -15 dBc max. |
| Input VSWR Max | 2.0 : 1 |
| RF Input Power | 10 dBm |
| Spurious | -50 dBc max. |
| ELECTRICAL SPECIFICATIONS | |
| Control Functions | 1. Power setting On/Off |
| Impedance | 50 Ohms |
| Power Consumption | 600Watts@max. |
| Power Requirements | 120V AC |
| Protection Functions | 1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR |
| Supply Bias Voltage | 120V AC |
| INTERFACE SPECIFICATIONS | |
| Input Connector | 2.92mm Female |
| Output Connector | 2.92mm Female |
| Remote Control | RS422/Ethernet |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude | 10000 feet |
| Relative Humidity | 0.95 |
| Shock (Non Operating) | 20g for 11msc half sin wave, 3 axis both directions |
| Shock/Vibration (MIL-STD-810F) | 25g rms (15-degree 2KHz) endurance, 1 hour per axis |
| Temperature Operational | -20°C to +50°C |
| Temperature Storage | -30°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Cooling System | Built in Cooling system, forced air cooliong |
| Product Dimensions | 19 Inch 3U*550 mm |
| Product Weight | 35 kg |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | 0 |
| Country Of Origin | Made in China |
| ECCN Number | 3A001.B.4.D |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517799000 |
| Unit Package Dimensions | - |
| Unit Package Weight | <35kg |
| Warranty | 1 years |
