Norsat International Inc.

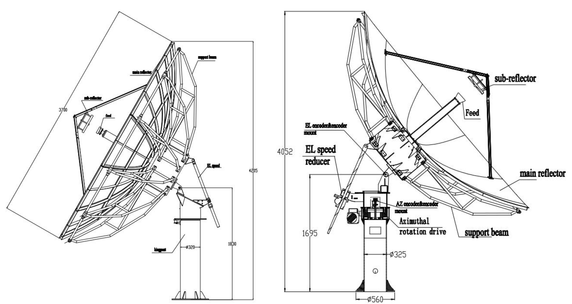

Norsat ES-100065 ANCHOR 3.7m Ku-Band Earth Station Antenna
Product Code:
ES-100065
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$0.00
We recommend purchasing the corresponding Antenna Control System along with the motorized Earth Station, unless you plan to develop the control system yourself. Please note that the Antenna Control System is sold separately at an additional cost.
For Manual Structure Antennas, a control system is not required.
Please note: Installation services are not included with this product.
| KEY SPECIFICATIONS | |
| Antenna Aperture | 3.7 m |
| Antenna Category | Earth Station |
| Band | Ku-Band |
| ANTENNA SPECIFICATIONS | |
| 90% Peaks Under Following Envelope | 29 - 25 logθ(1°≤θ＜20°) |
| Antenna Drive Mode | 3-axis motorized structure (with optional manual crank) |
| Antenna Type | Ring Focus |
| Cross Polarization Isolation | ≤35 dB |
| Number Of Ports | 2-ports |
| Polarization | Linear |
| Sidelobe | ≤-14dB (First Sidelobe) |
| RF SPECIFICATIONS | |
| Noise Temperature Elevation 10° | 62 K |
| Noise Temperature Elevation 20° | 50.8 K |
| Noise Temperature Elevation 40° | 44 K |
| Port Isolation Rx-Tx | 85 dB |
| Port Isolation Tx-Rx | 85 dB |
| Rejection | RRF: 55 dB min. TRF: 60 dB min. |
| Rx -3Db Beamwidth | 0.47° |
| Rx Feed Insertion Loss | ≤0.3 dB |
| Rx Frequency | 10.70 ‐ 12.75 GHz |
| Rx Gain | 51.28 @ 11.725GHz |
| Rx VSWR | 1.3 : 1 |
| Tx -3Db Beamwidth | 0.41° |
| Tx Feed Insertion Loss | ≤0.4 dB |
| Tx Frequency | 13.75 ‐ 14.50 GHz |
| Tx Gain | 52.8 @ 14.125 GHz |
| Tx VSWR | 1.3 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Capacity | 2 KW |
| INTERFACE SPECIFICATIONS | |
| Rx Interface | WR-75 |
| Tx Interface | WR-75 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 100% |
| Ice Load | Icing 13mm: normal work; Icing 25mm: no damage |
| Lightning Protection | Lightning Protection Kit Included |
| Seismic Capacity Horizontal | 0.3 G |
| Seismic Capacity Vertical | 0.1 G |
| Temperature Operational | -30°C to +50°C |
| Windspeed Operational | 72 km/h |
| Windspeed Survival | 216 km/h |
| PHYSICAL SPECIFICATIONS | |
| Loading Capacity | 5 sets for one 20ft container; 10 sets for one 40ft container |
| Motion Range AZ | Manual: 0° - 360°; Motorized: 0° - 350°continuous |
| Motion Range EL | 5° - 90° |
| Motion Range POL | ±90° |
| Product Package Volume | 5 packages, dimension: 9.2m3 |
| RMS | ≤0.5 mm |
| Structure | EL over AZ |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | 5A991.B |
| Ex Works | Hong Kong |
| Harmonized System Code | 8529109090 |
| Unit Package Weight | 820 kg |
| Warranty | 1 year |
5 customers are viewing this product
