Norsat International Inc.

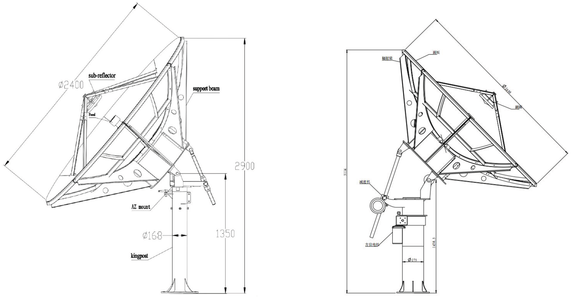

Norsat ES-100063 2.4m Ka-Band Earth Station Antenna - Auto
Product Code:
ES-100063
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Antenna Aperture | 2.4m |
| Antenna Category | Earth Station |
| Band | Ka-Band |
| ANTENNA SPECIFICATIONS | |
| 90% Peaks Under Following Envelop | 29 - 25 logθ(1°≤θ＜20°) |
| Antenna Drive Mode | Automatic Structure Antenna |
| Antenna Type | Ring Focus/Center Feed |
| Number Of Ports | 4 Ports |
| Polarization | Circular |
| Rx Axial Ratio 4 Ports | ≤1 dB |
| Sidelobe | ≤-14 dB (First Sidelobe) |
| Structure | EL over AZ |
| Tx Axial Ratio 4 Ports | ≤1 dB |
| RF SPECIFICATIONS | |
| Noise Temperature Elevation 10° | 124.5K |
| Noise Temperature Elevation 20° | 86K |
| Noise Temperature Elevation 40° | 60K |
| Port Isolation Rx-Tx | 85 dB |
| Power Handling | 2kW |
| Rx -3Db Beam Width | 0.46° |
| Rx Feed Insertion Loss | 0.6 dB |
| Rx Frequency | 17.7 - 21.2 GHz |
| Rx Gain | 51.4 dBi @ 19.95 GHz |
| Tx -3Db Beam Width | 0.3° |
| Tx Feed Insertion Loss | 0.6 dB |
| Tx Frequency | 27.5 ‐ 31.0 GHz |
| Tx Gain | 54.73 dBi @ 29.25 GHz |
| VSWR | 1.35 : 1 |
| INTERFACE SPECIFICATIONS | |
| Rx Interface | WR-42 |
| Tx Interface | WR-28 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 100% |
| Ice Load | Icing 13mm: normal work Icing 25mm: no damage |
| Seismic Capacity | Horizontal: 0.3G Vertical: 0.1G |
| Temperature Operational | -30℃ to 50℃ |
| Windspeed Operational | 72km/h |
| Windspeed Survival | 216km/h |
| PHYSICAL SPECIFICATIONS | |
| Motion Range AZ | 5° - 355° |
| Motion Range EL | 5° - 90° |
| Surface Accuracy RMS | ≤0.3 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8529109090 |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Antenna Aperture | 2.4m |
| Antenna Category | Earth Station |
| Band | Ka-Band |
| ANTENNA SPECIFICATIONS | |
| 90% Peaks Under Following Envelop | 29 - 25 logθ(1°≤θ＜20°) |
| Antenna Drive Mode | Automatic Structure Antenna |
| Antenna Type | Ring Focus/Center Feed |
| Number Of Ports | 4 Ports |
| Polarization | Circular |
| Rx Axial Ratio 4 Ports | ≤1 dB |
| Sidelobe | ≤-14 dB (First Sidelobe) |
| Structure | EL over AZ |
| Tx Axial Ratio 4 Ports | ≤1 dB |
| RF SPECIFICATIONS | |
| Noise Temperature Elevation 10° | 124.5K |
| Noise Temperature Elevation 20° | 86K |
| Noise Temperature Elevation 40° | 60K |
| Port Isolation Rx-Tx | 85 dB |
| Power Handling | 2kW |
| Rx -3Db Beam Width | 0.46° |
| Rx Feed Insertion Loss | 0.6 dB |
| Rx Frequency | 17.7 - 21.2 GHz |
| Rx Gain | 51.4 dBi @ 19.95 GHz |
| Tx -3Db Beam Width | 0.3° |
| Tx Feed Insertion Loss | 0.6 dB |
| Tx Frequency | 27.5 ‐ 31.0 GHz |
| Tx Gain | 54.73 dBi @ 29.25 GHz |
| VSWR | 1.35 : 1 |
| INTERFACE SPECIFICATIONS | |
| Rx Interface | WR-42 |
| Tx Interface | WR-28 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 100% |
| Ice Load | Icing 13mm: normal work Icing 25mm: no damage |
| Seismic Capacity | Horizontal: 0.3G Vertical: 0.1G |
| Temperature Operational | -30℃ to 50℃ |
| Windspeed Operational | 72km/h |
| Windspeed Survival | 216km/h |
| PHYSICAL SPECIFICATIONS | |
| Motion Range AZ | 5° - 355° |
| Motion Range EL | 5° - 90° |
| Surface Accuracy RMS | ≤0.3 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8529109090 |
| Warranty | 1 year |
