Norsat International Inc.

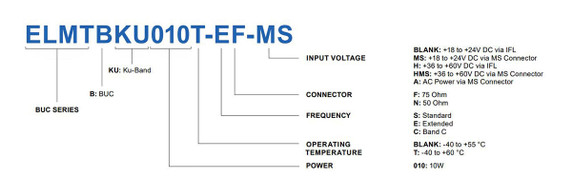

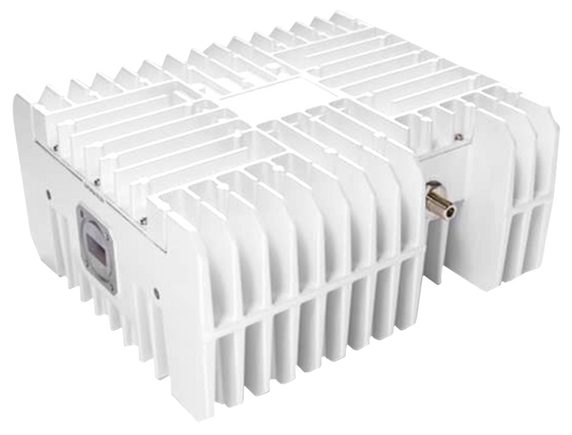

Norsat ELMTBKU010-EF 10W Ku-Band BUC

(No reviews yet) Write a Review
SKU:
ELMTBKU010-EF
MPN:
ELMTBKU010-EF
Availability:
YES
Weight:
4.50 KGS
Width:
19.42 (cm)
Height:
10.35 (cm)
Depth:
22.00 (cm)
  • Norsat ELMTBKU010-EF 10W Ku-Band BUC
  • Norsat ELMTBKU010-EF 10W Ku-Band BUC
$5,400.00

Description

Norsat Satellite Communication solutions are renowned for their high quality, reliability, and innovation. The Ku ELEMENT series offers small size and weight with a variety of frequency options that make it ideal for VSAT applications.

KEY SPECIFICATIONS
Product Family ELEMENT
Band Ku-Band
Output Power (Rated) 10W
Input Frequency - Band 1 L-Band: 950 - 1700 MHz
Output Frequency 1 Ku-Band: 13.75 - 14.50 GHz

RF SPECIFICATIONS
Output Power (Saturated) 40 dBm min.
Output Power( P1dB) 39.5 dBm min.
Noise Power Density -80 dBm/Hz in Tx; -156 dBm/Hz in Rx
LO Frequency 1 12.80 GHz
Phase Noise @ 100Hz offset -60 dBc/Hz
Phase Noise @ 1KHz offset -70 dBc/Hz
Phase Noise @ 10KHz offset -80 dBc/Hz
Phase Noise @ 100KHz offset -90 dBc/Hz
Phase Noise @ 1MHz offset -100 dBc/Hz
Gain Variation over operating band ≤ 4 dB p-p
Gain Variation over temperature ≤ 4.0 dB p-p
Input VSWR 2.0 : 1
Output VSWR 2.0 : 1
Spurious ≤ -60 dBc (in band); ≤ -50 dBc (out of band)

ELECTRICAL SPECIFICATIONS
Power Consumption @ P1dB 100W max.
Power Requirements +18V to +24V DC via IFL

INTERFACE SPECIFICATIONS
RF Input Connector F-75 Ohm
RF Output Connector WR-75 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational -40 to +55°C
Temperature - Storage -40 to +80°C
Humidity 0-100% condensing

PHYSICAL SPECIFICATIONS
Enclosed Accessories Screws, Gasket
Dimensions (L x W x H) 220 x 194.2 x 103.5 mm
Weight 4.5 kg
View AllClose

Additional Information

orbital_datasheet_1:
https://ba6839db-e1e9-457a-87bd-14abd0827fdf.usrfiles.com/ugd/ba6839_bfda943fc6464f4abf874c6b21e11c55.pdf?Norsat ELMTBKU010-EF 10W Ku-Band BUC Data Sheet
