Norsat International Inc.
Norsat ELMTBKA016-MN-IFL ELEMENT 16W Ka-Band BUC

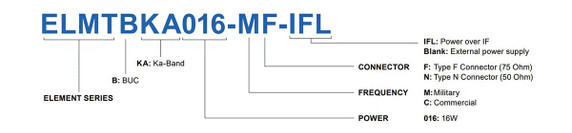

Product Code:
ELMTBKA016-MN-IFL
Condition:
New
Availability:
YES
Weight:
1.50 KGS
Width:
16.80
(cm)
Height:
7.80
(cm)
Depth:
10.80
(cm)
$8,960.00
| KEY SPECIFICATIONS | |
|---|---|
| band | Ka-Band |
| input frequency band 1 | L-Band: 950 - 1700 MHz |
| output frequency 1 | Ka-Band: 30.0 - 31.0 GHz |
| output power rated | 16W |
| RF SPECIFICATIONS | |
|---|---|
| input VSWR | 2.0 : 1 |
| lo frequency 1 | 28.05 GHz |
| noise power density | -70 dBm/Hz in Tx; -157 dBm/Hz in Rx |
| output power saturated | 42 dBm min. |
| output VSWR | 2.5 : 1 |
| spurious | ≤ -55 dBc (in band); ≤ -55 dBc (out of band) |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power connector | MIL-26482 Series 1 receptacle Shell Size 12, 4 Pins PT02E-12-4P |
| power requirements | +28V to +72V DC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| RF input connector | WR-28 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| humidity | 8-100% condensing |
| temperature operational | -40 to +60°C |
| temperature storage | -50 to +70°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|

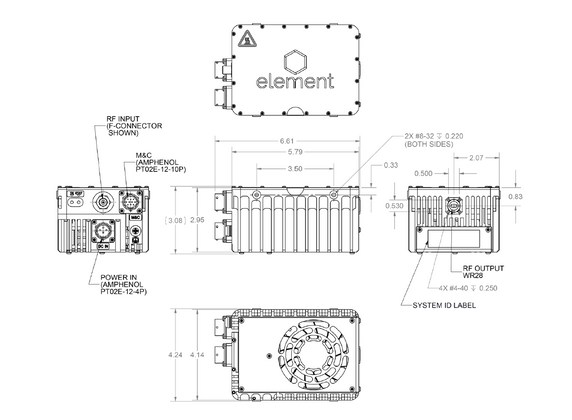

| dimensions (LxWxH) | 168 x 108 x 78 mm |
| enclosed accessories | Screws, Gasket, Mating Connectors for Power and M&C |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
|---|---|
| band | Ka-Band |
| input frequency band 1 | L-Band: 950 - 1700 MHz |
| output frequency 1 | Ka-Band: 30.0 - 31.0 GHz |
| output power rated | 16W |
| RF SPECIFICATIONS | |
|---|---|
| input VSWR | 2.0 : 1 |
| lo frequency 1 | 28.05 GHz |
| noise power density | -70 dBm/Hz in Tx; -157 dBm/Hz in Rx |
| output power saturated | 42 dBm min. |
| output VSWR | 2.5 : 1 |
| spurious | ≤ -55 dBc (in band); ≤ -55 dBc (out of band) |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power connector | MIL-26482 Series 1 receptacle Shell Size 12, 4 Pins PT02E-12-4P |
| power requirements | +28V to +72V DC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| RF input connector | WR-28 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| humidity | 8-100% condensing |
| temperature operational | -40 to +60°C |
| temperature storage | -50 to +70°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| dimensions (LxWxH) | 168 x 108 x 78 mm |
| enclosed accessories | Screws, Gasket, Mating Connectors for Power and M&C |
Download
| Download Name | |
| Norsat ELEMENT 16W Ka-Band BUC Data Sheet | |
