Norsat International Inc.

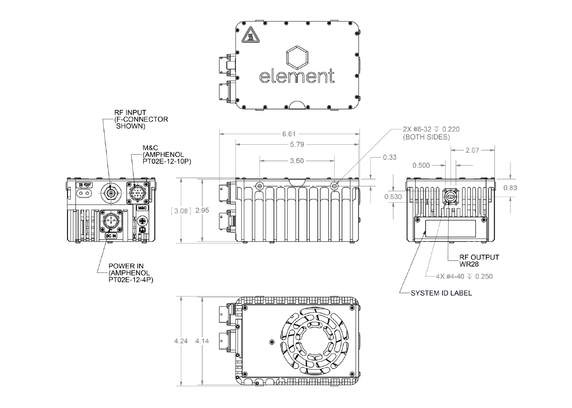

Norsat ELMTBKA012-CN 12W Ka-Band BUC
Product Code:
ELMTBKA012-CN
Availability:
YES
Weight:
3.50 KGS
Width:
10.80
(cm)
Height:
7.80
(cm)
Depth:
16.80
(cm)
$6,720.00
Norsat Satellite Communication solutions are renowned for their high quality, reliability, and innovation. The Ka ELEMENT series offers small size and weight with a variety of frequency options that make it ideal for VSAT applications.
| KEY SPECIFICATIONS | |
| Product Family | ELEMENT |
| Band | Ka-Band |
| Output Power (Rated) | 12W |
| Input Frequency - Band 1 | L-Band: 1150 - 2150 MHz |
| Output Frequency 1 | Ka-Band: 29.0 - 30.0 GHz |
| RF SPECIFICATIONS | |
| Output Power (Saturated) | 41 dBm min. |
| Noise Power Density | -70 dBm/Hz in Tx; -157 dBm/Hz in Rx |
| LO Frequency 1 | 27.85 GHz |
| Reference Signal Frequency | 0 +/- 5 dBm @ 10 MHz |
| Phase Noise @ 1KHz offset | -73 dBc/Hz |
| Phase Noise @ 10KHz offset | -83 dBc/Hz |
| Phase Noise @ 100KHz offset | -93 dBc/Hz |
| Phase Noise @ 1MHz offset | -103 dBc/Hz |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.5 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Input Voltage | +36V to + 72V DC |
| Power Consumption @ P1dB | 110W max. |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins,PT02E-12-4P |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | N- 50 Ohm |
| RF Output Connector | WR-28 waveguide grooved |
| M & C SPECIFICATIONS | |
| M & C Interface | RS-485 & RS-232 |
| M & C Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 10 Pins. PT02E-12-10P |
| Mute Control | Fully configurable |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -50 to +70°C |
| Humidity | 8-100% condensing |
| PHYSICAL SPECIFICATIONS | |
| Enclosed Accessories | Screws, Gasket, M&C Connector, Power Connector |
| Dimensions (L x W x H) | 168 x 108 x 78 mm |
| Weight | 3.5 Kg |
