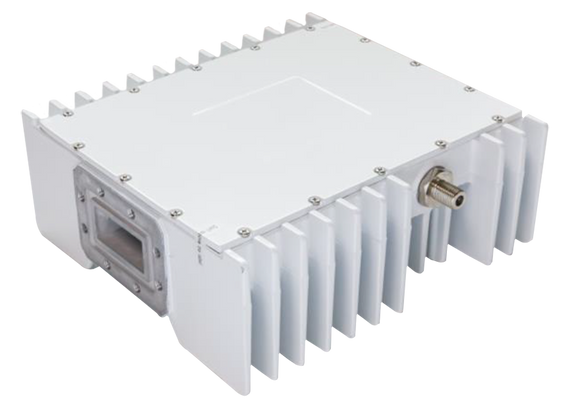

Norsat ELMTBC005-IN 5W C-Band BUC
- SKU:
- ELMTBC005-IN
- MPN:
- ELMTBC005-IN
- Availability:
- YES
- Weight:
- 1.80 KGS
- Width:
- 16.15 (cm)
- Height:
- 6.50 (cm)
- Depth:
- 17.61 (cm)
Description
Norsat Satellite Communcation solutions are renowned for their high quality, reliability, and innovation. The C Band ELEMENT series offers small size and weight with a variety of frequency options that make it ideal for VSAT applications.
KEY SPECIFICATIONS | |
Product Family | ELEMENT |
Band | C-Band |
Output Power (Rated) | 5W |
Input Frequency - Band 1 | L-Band: 975 - 1275 MHz |
Output Frequency 1 | C-Band: 6.725 - 7.025 GHz |
RF SPECIFICATIONS | |
Output Power (Saturated) | 37.5 dBm min. |
Output Power( P1dB) | 37 dBm min. |
Noise Power Density | -80 dBm/Hz in Tx; -156 dBm/Hz in Rx |
LO Frequency 1 | 5.75 GHz |
Phase Noise @ 100Hz offset | -60 dBc/Hz |
Phase Noise @ 1KHz offset | -70 dBc/Hz |
Phase Noise @ 10KHz offset | -80 dBc/Hz |
Phase Noise @ 100KHz offset | -90 dBc/Hz |
Phase Noise @ 1MHz offset | -100 dBc/Hz |
Gain Variation over operating band | ≤ 4 dB p-p |
Gain Variation over temperature | ≤ 4.0 dB p-p |
Input VSWR | 2.0 : 1 |
Output VSWR | 2.0 : 1 |
Spurious | -60 dBc (in band) ; -50 dBc (out of band) |
ELECTRICAL SPECIFICATIONS | |
Power Consumption @ P1dB | 55W max. |
Power Requirements | +15V to +24V DC via IFL |
INTERFACE SPECIFICATIONS | |
RF Input Connector | N- 50 Ohm |
RF Output Connector | CPR-137G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
Temperature - Operational | -40 to +55°C |
Temperature - Storage | -40 to +80°C |
Humidity | 0-100% condensing |
PHYSICAL SPECIFICATIONS | |
Cooling | Finned |
Enclosed Accessories | Screws, Gasket |
Dimensions (L x W x H) | 176.1 x 161.5 x 65 mm |
Weight | 1.8 kg |
Additional Information
orbital_datasheet_1: |
https://ba6839db-e1e9-457a-87bd-14abd0827fdf.usrfiles.com/ugd/ba6839_b7b90f08c08a42adb7af154e55370980.pdf?Norsat ELMTBC005-IN 5W C-Band BUC Data Sheet |
