Norsat International Inc.

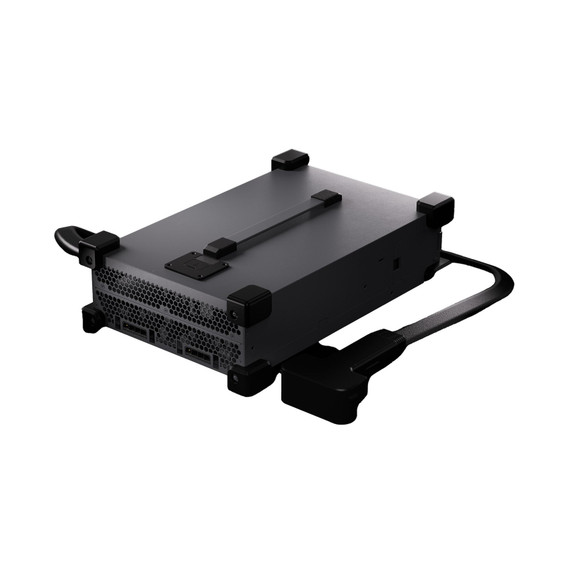

Norsat DJI-C7000 C7000 Intelligent Power Supply (EMC)
Product Code:
DJI-C7000
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$1,316.92
| KEY SPECIFICATIONS | |
| Compatible Battery | DB1050 / DB1580 / DB2160 Intelligent Flight Battery |
| Input Voltage | Single-phase 220 - 240 V ; Three-phase 380 - 480 V |
| Model [Single Line Text Feild] | CSX711-7000 |
| Output Power | Single-phase 40 A ; Three-phase, 140 A |
| Output Voltage | 50 - 62 V |
| Protection Functions | Over-temperature, over-voltage, under-voltage, short-circuit, fan stall, and other protection functions |
| Weight | 8.5 kg |
| ELECTRICAL SPECIFICATIONS | |
| Charging Time | 8–9 minutes (DB1050 Intelligent Flight Battery, 30%–95% charge) |
| Output Current | 7000 W (three-phase 380 V input) ; 2000 W (single-phase 220 V input) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -20° to 40° C (-4° to 104° F) |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | N/A |
| Harmonized System Code | N/A - Services |
| Variant Name | C7000 Intelligent Power Supply (EMC) |
| Vendor Info | SZ DJI Technology Co., Ltd.: C7000 Intelligent Power Supply |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Compatible Battery | DB1050 / DB1580 / DB2160 Intelligent Flight Battery |
| Input Voltage | Single-phase 220 - 240 V ; Three-phase 380 - 480 V |
| Model [Single Line Text Feild] | CSX711-7000 |
| Output Power | Single-phase 40 A ; Three-phase, 140 A |
| Output Voltage | 50 - 62 V |
| Protection Functions | Over-temperature, over-voltage, under-voltage, short-circuit, fan stall, and other protection functions |
| Weight | 8.5 kg |
| ELECTRICAL SPECIFICATIONS | |
| Charging Time | 8–9 minutes (DB1050 Intelligent Flight Battery, 30%–95% charge) |
| Output Current | 7000 W (three-phase 380 V input) ; 2000 W (single-phase 220 V input) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -20° to 40° C (-4° to 104° F) |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | N/A |
| Harmonized System Code | N/A - Services |
| Variant Name | C7000 Intelligent Power Supply (EMC) |
| Vendor Info | SZ DJI Technology Co., Ltd.: C7000 Intelligent Power Supply |
